Highly engineered gearbox
Highly enginneered & rugged gearbox manufactured in-house using quality components by Rotomec.
Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.

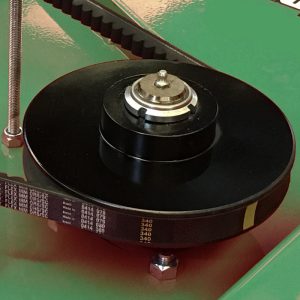

Cast iron pulleys
Cast iron pulleysHeavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.

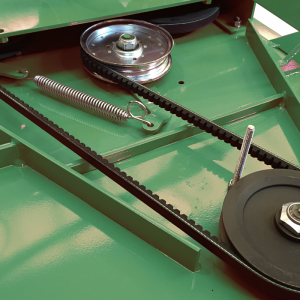

Single belt transmission
Heavy duty reinforced belt (BX) with spring loaded tensioner provide over 180° coverage of all pulleys.

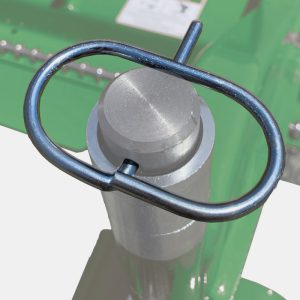

Pins that stay in place
Pins that stay in placeMowers that use traditional cotter pins often lose them when the mower gets too close to a bush. This not only causes the loss of the pin but may also cause the loss of the height adjustment spacers and in some cases even the wheel yokes. Our designed and manufactured a pin that will stay securely fastened under almost any circumstances.
Technical features
| Model | HP | Working width | Overall width | Weight lbs | Rotor rpm | Blade speed | # of blades | Cutting height | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|
| C28-RD4H | 16-30 | 48" | 51" | 375 | 3,037 | 13,188 | 3 | 1"-4" | ASAE cat. 2 |
| C28-RD5H | 20-30 | 60" | 62" | 440 | 2,083 | 14,763 | 3 | 1"-4" | ASAE cat. 2 |
| C28-RD6H | 25-30 | 72" | 74" | 550 | 2,728 | 14,566 | 3 | 1"-4" | ASAE cat. 2 |
Manuals
| Model | Language | Operator's manual | Parts manual |
|---|---|---|---|
| C28-RD4H, RD5H, RD6H | English |  | |
Kevin Doran –
Got mine last week. So far I love it. Cuts great. I had a Caroni mower prior to this one and what I like most about the Rotomec one is the way it discharges the grass evenly. The Caroni was a 6′ mower but the discharge was only about 5′ wide and therefore had a tendency to windrow. The Rotomec mower is 6′ and the discharge is almost as wide so the grass is spread evenly. A word of advice, when you get the mower, assemble the three point hitch, connect the mower to the tractor, raise it and then assemble the arms that hold the wheels. I managed to find all the hard ways to assemble it before figuring out the easy way :)!
K. Hunter –
Mower works as expected. Freight is not cheap! Ended up having it shipped to the carriers terminal to save some money.
