The manual side-shift system is extremely simple and easy to use, all tools needed for this operation are included with every tiller. Our tillers also feature a rugged gearbox, telescopic safety shielding, hinged adjustable heavy gauged tail gate, solid steel center shaft, full size knives, wear protection chain case cover, adjustable depth control skids, exchangeable sprockets for two rotor speeds. The transmission is chain driven in a grease bath. The PTO shaft is equipped with a slip clutch safety.

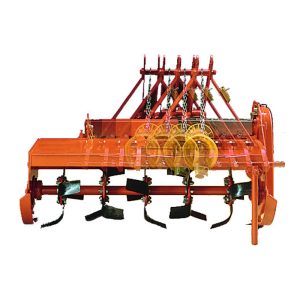

Manual side-shift
The built-in manual side shift system allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.

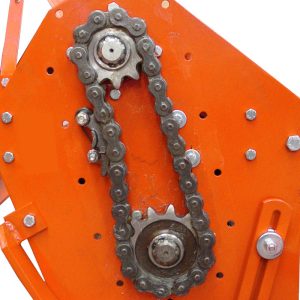

Chain transmission
Lateral ASA 80 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.
Reversible sprockets
Tillers are equipped with reversible sprockets that allow you obtain two tillage speeds: Standards speed is 231 rpm, Increased speed is 375 rpm.
Technical features
| Model | HP | Working width | Overall width | Weight lbs | Side-shift | Rotor rpm | # of flanges | # of blades | Chain sprockets | Maximum Working depth | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 142-231 | 16-40 | 42" | 47" | 373 | 10" | 231/375 | 5 | 20 | 11-14 | 7-1/4" | ASAE cat.3 slip clutch |
Manuals
| Model | Language | Serial break | Operator's manual | Parts manual |
|---|---|---|---|---|
| 142-231, 150-231, 158-231, 166-231 | English | - |  | Included with Operator’s manual |
