Parts Manual
Manual 961380B · May 2026 · PHD-100, PHD-200, PHD-300, PHD-400 · All Serial Numbers
PHD-100 · PHD-200 · PHD-300 · PHD-400

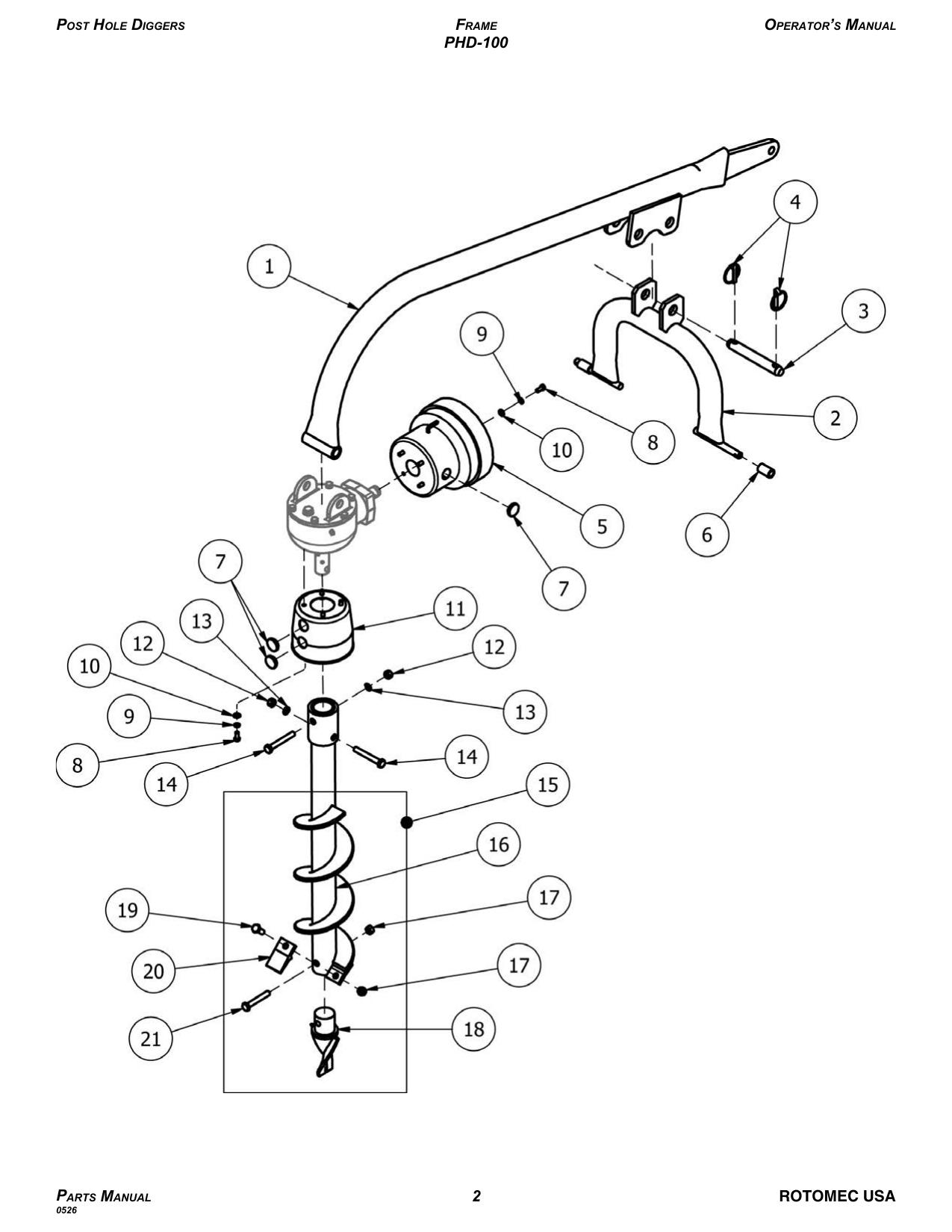

Frame — PHD-100
Main frame assembly for the PHD-100 post hole digger.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 503807B |
Boom assembly; PHD-100 | PHD-100 | 1 | |
| 2 | 503808B |
Yoke cat. 0/1; #277281 & below (interchangeable with 0018511 on cat. 1 hitches) | PHD-100 | 1 | — |
| 2 | 0018511 |
Yoke cat. 1; #277282 & above | PHD-100 | 1 | |
| 3 | 501544B |
Pin, top link 1"x5.38" Z; #296542 & below (no longer available — order 0018020 + 0018266) | PHD-100 | 1 | — |
| 3 | 0018020 |
Pin, hitch Ø25×148.5 Z; #296543 & above | PHD-100 | 1 | |
| 4 | 0018266 |
Lynch pin Ø11×45 | PHD-100 | 2 | |
| 5 | 0018038 |
Guard, gearbox | PHD-100 | 1 | |
| 6 | 002604B |
Bushing cat. 0/1; #277281 & below | PHD-100 | 2 | |
| 7 | 0006647 |
Cap, guard | PHD-100 | 4 | |
| 8 | 503869B |
Bolt HH 5/16"-18×0.75" G5 Z F | PHD-100 | 8 | |
| 9 | 1605017 |
Washer lock 5/16" Z | PHD-100 | 8 | |
| 10 | 1605021 |
Washer flat 5/16" USS Z | PHD-100 | 8 | |
| 11 | 0018530 |
Guard, auger | PHD-100 | 1 | |
| 12 | 0001106 |
Nut HH M12-1.75 C6 Z MD | PHD-100 | 2 | |
| 13 | 0001077 |
Washer lock Ø12 Z | PHD-100 | 2 | |
| 14 | 0015122 |
Bolt HH M12-1.75×90 C8.8 Z P | PHD-100 | 2 | |
| 15 | 38-106-531 |
Auger, 6" single flight 36" long, complete | PHD-100 | – | |
| 15 | 38-109-531 |
Auger, 9" double flight 36" long, complete | PHD-100 | – | |
| 15 | 38-112-531 |
Auger, 12" double flight 36" long, complete | PHD-100 | – | |
| 16 | 7900106 |
6"x32" auger weldment (order 38-106-531 complete auger) | PHD-100 | – | — |
| 16 | 7900109 |
9"x32" auger weldment (order 38-109-531 complete auger) | PHD-100 | – | — |
| 16 | 7900112 |
12"x32" auger weldment (order 38-112-531 complete auger) | PHD-100 | – | — |
| 17 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 6" auger | PHD-100 | 2 | |
| 17 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 9" auger | PHD-100 | 3 | |
| 17 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 12" auger | PHD-100 | 5 | |
| 18 | 501541B |
Auger point, standard | PHD-100 | 1 | |
| 18 | 503928B |
Auger point, fish tail | PHD-100 | 1 | |
| 19 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 6" auger | PHD-100 | 1 | |
| 19 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 9" auger | PHD-100 | 2 | |
| 19 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 12" auger | PHD-100 | 4 | |
| 20 | 501540B |
Knife, 6" auger | PHD-100 | 1 | |
| 20 | 501540B |
Knife, 9" auger | PHD-100 | 2 | |
| 20 | 501540B |
Knife, 12" auger | PHD-100 | 4 | |
| 21 | 0192236 |
Bolt HH M12-1.75×70 C8.8 Z P | PHD-100 | 1 |

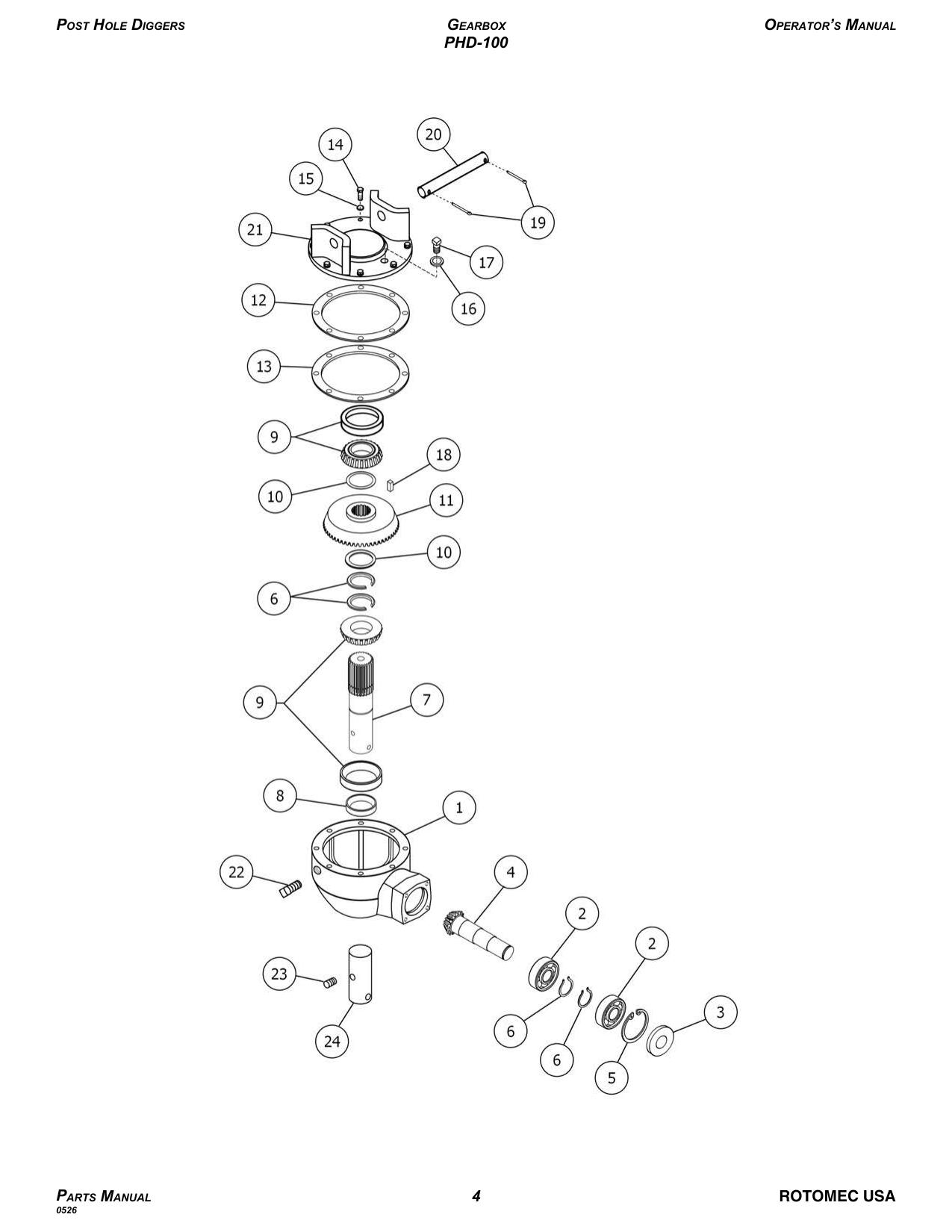

Gearbox — PHD-100
Gearbox 540 rpm, complete assembly breakdown. Fill with ~40 fl.oz. (1.25 qt.) SAE 90W gear oil.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 503768B |
Housing, gearbox; PHD-100 | PHD-100 | 1 | |
| 2 | 0025332A |
Bearing 6207 | PHD-100 | 2 | |
| 3 | 0030211 |
Oil seal 35.72.10 | PHD-100 | 1 | |
| 4 | 503769B |
Pinion gear w/shaft Z10 | PHD-100 | 1 | |
| 5 | 0025329 |
Snap ring, inner Ø72 | PHD-100 | 1 | |
| 6 | 0042122 |
Snap ring, outer Ø35 | PHD-100 | 4 | |
| 7 | 503780B |
Output shaft | PHD-100 | 1 | |
| 8 | 503435B |
Oil seal 35.54.8 | PHD-100 | 1 | |
| 9 | 0007172A |
Bearing 30207 | PHD-100 | 2 | |
| 10 | 503781B |
Shim (0.20) | PHD-100 | – | |
| 11 | 503782B |
Output gear Z30 | PHD-100 | 1 | |
| 12 | 503783B |
Gasket, hanger cap (0.10) | PHD-100 | – | |
| 13 | 503784B |
Gasket, hanger cap (0.25) | PHD-100 | – | |
| 14 | 0091446 |
Bolt HH M08-1.25×25 C8.8 Z F | PHD-100 | 6 | |
| 15 | 0003144 |
Washer lock Ø8 Z | PHD-100 | 6 | |
| 16 | 503785B |
Washer copper sealing Ø18; PHD-100 #314796 & below | PHD-100 | 1 | |
| 17 | 503786B |
Fill plug HH M18-1.25; PHD-100 #314796 & below | PHD-100 | 1 | |
| 17 | 502257B |
Fill plug ½"; PHD-100 #314797 & above | PHD-100 | 1 | |
| 18 | 503787B |
Key 10x10x22 | PHD-100 | 1 | |
| 19 | 0005638 |
Cotter pin Ø5×50 Z | PHD-100 | 2 | |
| 20 | 503788B |
Hanger shaft | PHD-100 | 1 | |
| 21 | 503789B |
Hanger cap (#314796 & below — also order 502257B) | PHD-100 | 1 | |
| 22 | 503428B |
Check plug HH 1/8" | PHD-100 | 1 | |
| 23 | 502625B |
Roll pin Ø6×50 | PHD-100 | 1 | |
| 24 | 503790B |
Spacer, output shaft | PHD-100 | 1 | |
| GB | 503745B |
Gearbox 540 rpm, complete; PHD-100 | PHD-100 | – |

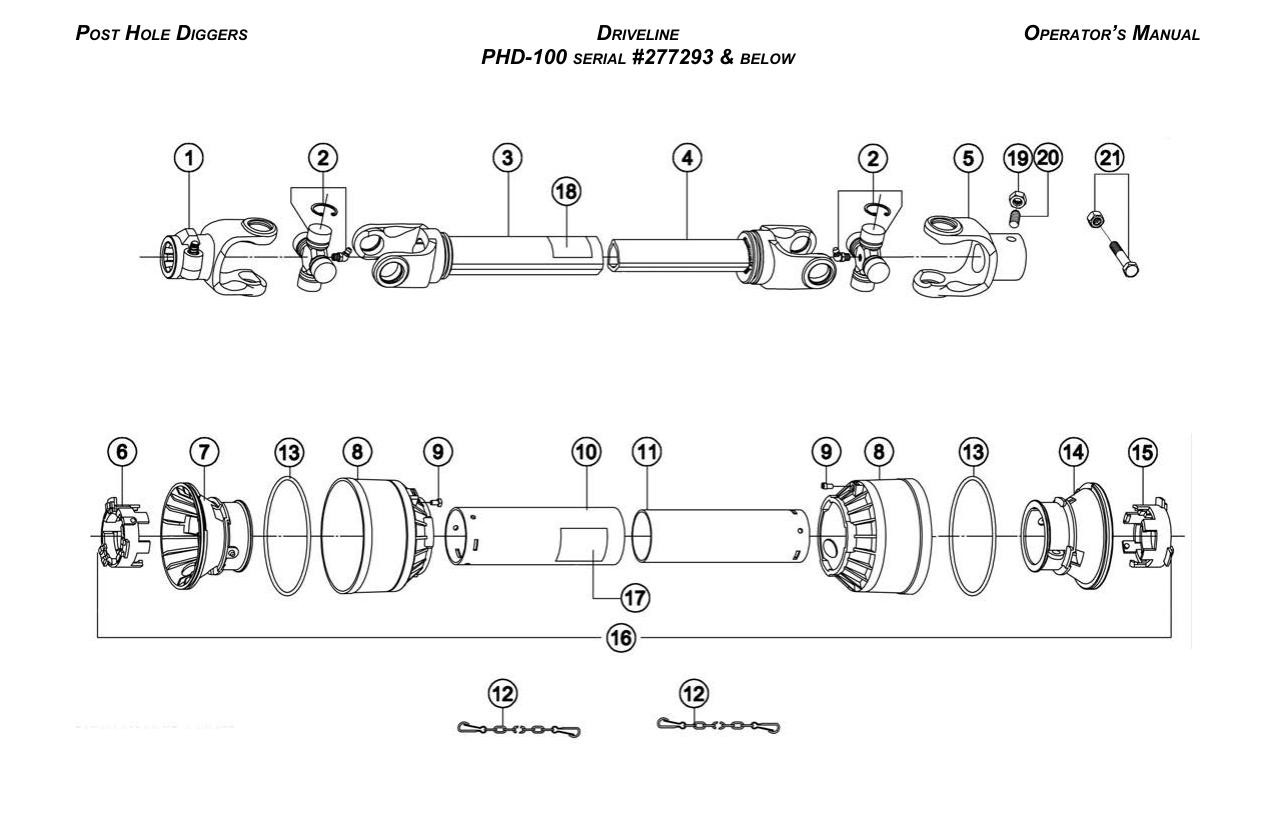

Driveline — PHD-100 (#277293 & below)
Driveline assembly for PHD-100 units with serial #277293 and below. Shielding 90SS2082C is no longer available — order 3CE02103B.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 1022010C |
PTO yoke (tractor end) | PHD-100 | 1 | |
| 2 | 1002020C |
Cross w/bearing (no longer available — order 08202B) | PHD-100 | 2 | — |
| 3 | 1942084NC |
Outer tube w/yoke (no longer available — order Z020902A) | PHD-100 | 1 | — |
| 4 | 1952086NC |
Inner tube w/yoke (no longer available — order 1B021031B) | PHD-100 | 1 | — |
| 5 | 1072041C |
PTO yoke (implement end) (no longer available — order 1102909A) | PHD-100 | 1 | — |
| 6 | 1782210C |
Locking ring, outer tube; #277293 & below | PHD-100 | 1 | |
| 7 | 1784201C |
Rigid cone, outer tube; #277293 & below | PHD-100 | 1 | |
| 8 | 1784203C |
Standard cone; #277293 & below | PHD-100 | 2 | |
| 9 | 1784212C |
Pin; #277293 & below | PHD-100 | 2 | |
| 10 | 1773082C |
Shield, outer tube | PHD-100 | 1 | |
| 11 | 1872082C |
Shield, inner tube | PHD-100 | 1 | |
| 12 | 1006065C |
Chain, anti-rotation (no longer available — order 52000001B) | PHD-100 | 2 | — |
| 13 | 1213233C |
Stiffening ring; #277293 & below | PHD-100 | 2 | |
| 14 | 1784202C |
Rigid cone, inner tube; #277293 & below | PHD-100 | 1 | |
| 15 | 1782211C |
Locking ring, inner tube; #277293 & below | PHD-100 | 1 | |
| 16 | 90SS2082C |
Shield, complete; #277293 & below (no longer available — order 3CE02103B) | PHD-100 | 1 | — |
| 17 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-100 | 1 | |
| 18 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-100 | 1 | |
| 19 | 503425B |
Hex nut ¼" | PHD-100 | 1 | |
| 20 | 501568B |
Set screw ¼" | PHD-100 | 1 | |
| 21 | 503758B |
Shear bolt with nut ¼"x2.5" grade 2 | PHD-100 | 1 | |
| DL | 948853B |
Driveline, complete; PHD-100 (#277293 & below) (no longer available — order 0500155) | PHD-100 | – | — |

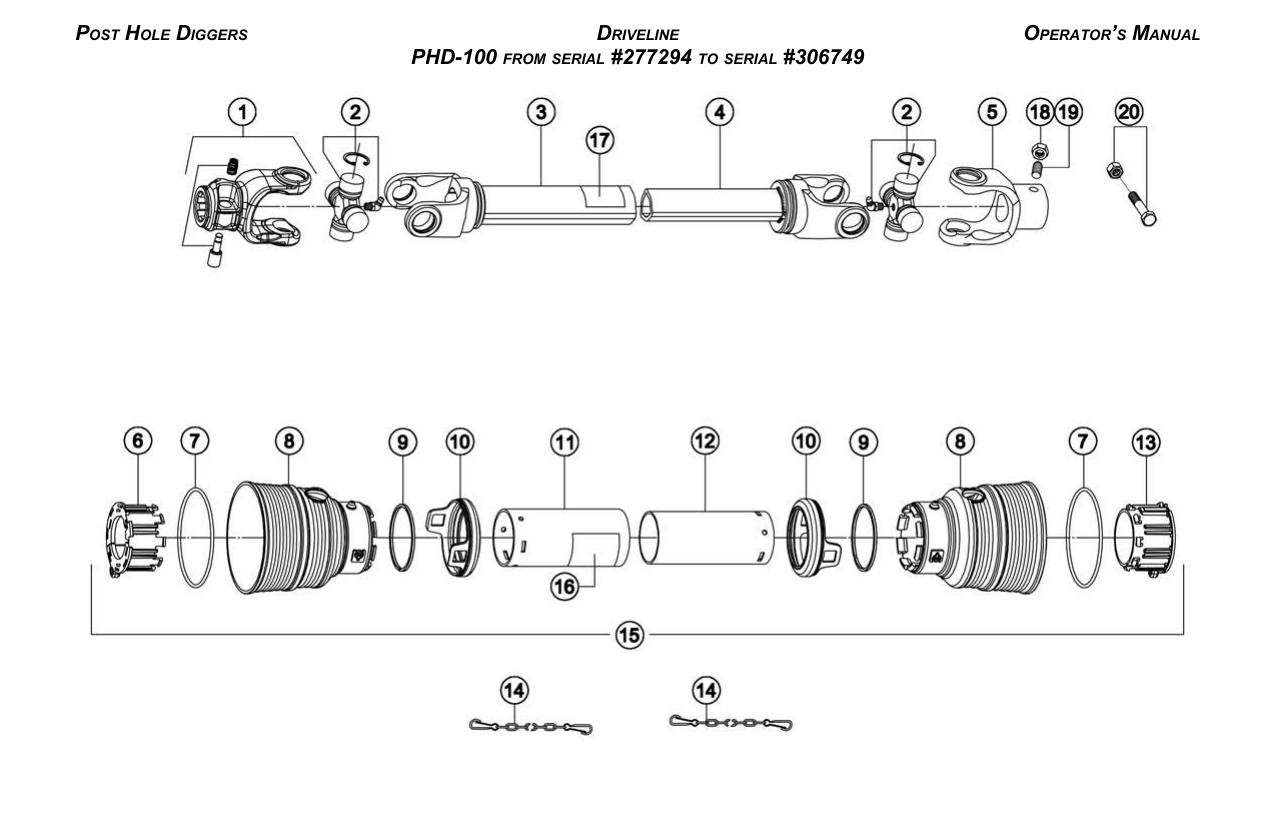

Driveline — PHD-100 (#277294–#306749)
Driveline assembly for PHD-100 units with serials between #277294 and #306749. Driveline 948853B is no longer available — order 0500155.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 1022010C |
PTO yoke (tractor end) | PHD-100 | 1 | |
| 2 | 1002020C |
Cross w/bearing (no longer available — order 08202B) | PHD-100 | 2 | — |
| 3 | 1942084NC |
Outer tube w/yoke (no longer available — order Z020902A) | PHD-100 | 1 | — |
| 4 | 1952086NC |
Inner tube w/yoke (no longer available — order 1B021031B) | PHD-100 | 1 | — |
| 5 | 1072041C |
PTO yoke (implement end) (no longer available — order 1102909A) | PHD-100 | 1 | — |
| 6 | 1782710C |
Locking ring, outer tube; #277294–#306749 | PHD-100 | 1 | |
| 7 | 1211733C |
Stiffening ring; #277294–#306749 | PHD-100 | 2 | |
| 8 | 1781703C |
Standard cone; #277294–#306749 | PHD-100 | 2 | |
| 9 | 1211735C |
Safety ring; #277294–#306749 | PHD-100 | 2 | |
| 10 | 1881709C |
Safety sleeve; #277294–#306749 | PHD-100 | 2 | |
| 11 | 1773082C |
Shield, outer tube | PHD-100 | 1 | |
| 12 | 1872082C |
Shield, inner tube | PHD-100 | 1 | |
| 13 | 1782711C |
Locking ring, inner tube; #277294–#306749 | PHD-100 | 1 | |
| 14 | 1006065C |
Chain, anti-rotation (no longer available — order 52000001B) | PHD-100 | 2 | — |
| 15 | 96SS2082C |
Shield, complete (no longer available — order 3CE02103B) | PHD-100 | 1 | — |
| 16 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-100 | 1 | |
| 17 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-100 | 1 | |
| 18 | 503425B |
Hex nut ¼" | PHD-100 | 1 | |
| 19 | 501568B |
Set screw ¼" | PHD-100 | 1 | |
| 20 | 503758B |
Shear bolt with nut ¼"x2.5" grade 2 | PHD-100 | 1 | |
| DL | 948853B |
Driveline, complete; PHD-100 (no longer available — order 0500155) | PHD-100 | – | — |

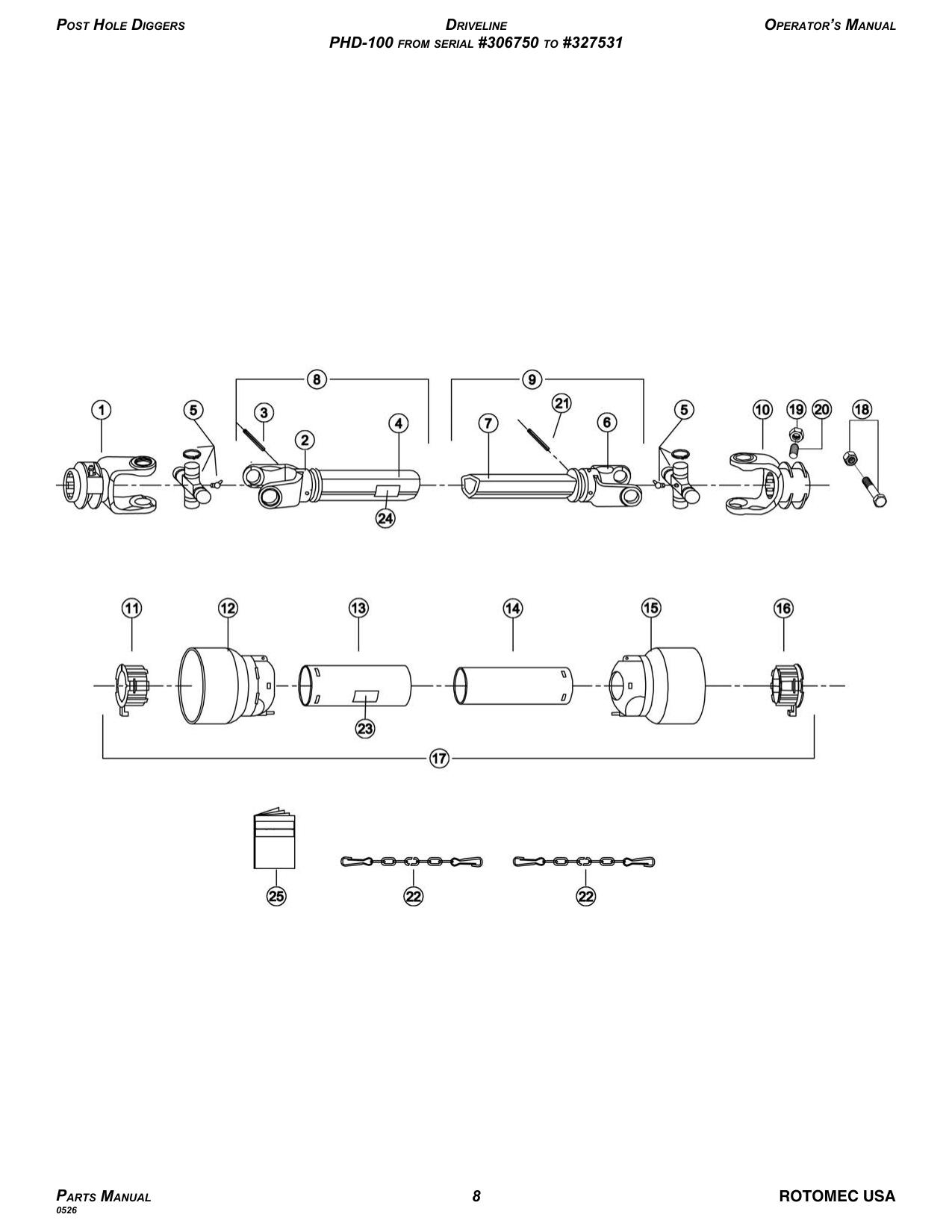

Driveline — PHD-100 (#306750–#327531)
Driveline assembly for PHD-100 units with serials between #306750 and #327531. Driveline 0500150 is no longer available — order 0500155.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 1002138A |
PTO yoke (tractor end) (no longer available — order 0800203B) | PHD-100 | 1 | — |
| 2 | 1902010A |
Yoke, outer tube | PHD-100 | 1 | |
| 3 | 0008679 |
Roll pin Ø8×55 | PHD-100 | 1 | |
| 4 | 3020902A |
Outer tube | PHD-100 | 1 | |
| 5 | 1802010A |
Cross w/bearing (no longer available — order 08202B) | PHD-100 | 2 | — |
| 6 | 1902012A |
Yoke, inner tube | PHD-100 | 1 | |
| 7 | 3120902A |
Inner tube | PHD-100 | 1 | |
| 8 | Z020902A |
Outer tube w/yoke, complete | PHD-100 | 1 | |
| 9 | Z120902A |
Inner tube w/yoke, complete (no longer available — order 1B021031B) | PHD-100 | 1 | — |
| 10 | 1102909A |
PTO yoke (implement end) | PHD-100 | 1 | |
| 11 | 6002010A |
Locking ring, outer tube; #306750–#327531 | PHD-100 | 1 | |
| 12 | 6014010A |
Standard cone, outer tube; #306750–#327531 | PHD-100 | 1 | |
| 13 | 5820842EA |
Shield, outer tube; #306750–#327531 | PHD-100 | 1 | |
| 14 | 5820842IA |
Shield, inner tube; #306750–#327531 | PHD-100 | 1 | |
| 15 | 6014012A |
Standard cone, inner tube; #306750–#327531 | PHD-100 | 1 | |
| 16 | 6002012A |
Locking ring, inner tube; #306750–#327531 | PHD-100 | 1 | |
| 17 | P32103SSA |
Shield, complete (no longer available — order 3CE02103B) | PHD-100 | 1 | — |
| 18 | 503758B |
Bolt HH 1/4"-20×2.50" G2 Z P w/nut ES 1/4"-20 | PHD-100 | 1 | |
| 19 | 503425B |
Nut HH 1/4"-20 G2 Z | PHD-100 | 1 | |
| 20 | 501568B |
Set screw 1/4"-20×0.75" N | PHD-100 | 1 | |
| 21 | 0008679 |
Roll pin Ø8×55 | PHD-100 | 1 | |
| 22 | 5990030A |
Chain, anti-rotation (no longer available — order 52000001B) | PHD-100 | 2 | — |
| 23 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-100 | 1 | |
| 24 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-100 | 1 | |
| 25 | 8907070A |
Operator's manual, driveline AMA | PHD-100 | 1 | |
| DL | 0500150 |
Driveline, complete; PHD-100 (no longer available — order 0500155) | PHD-100 | – | — |

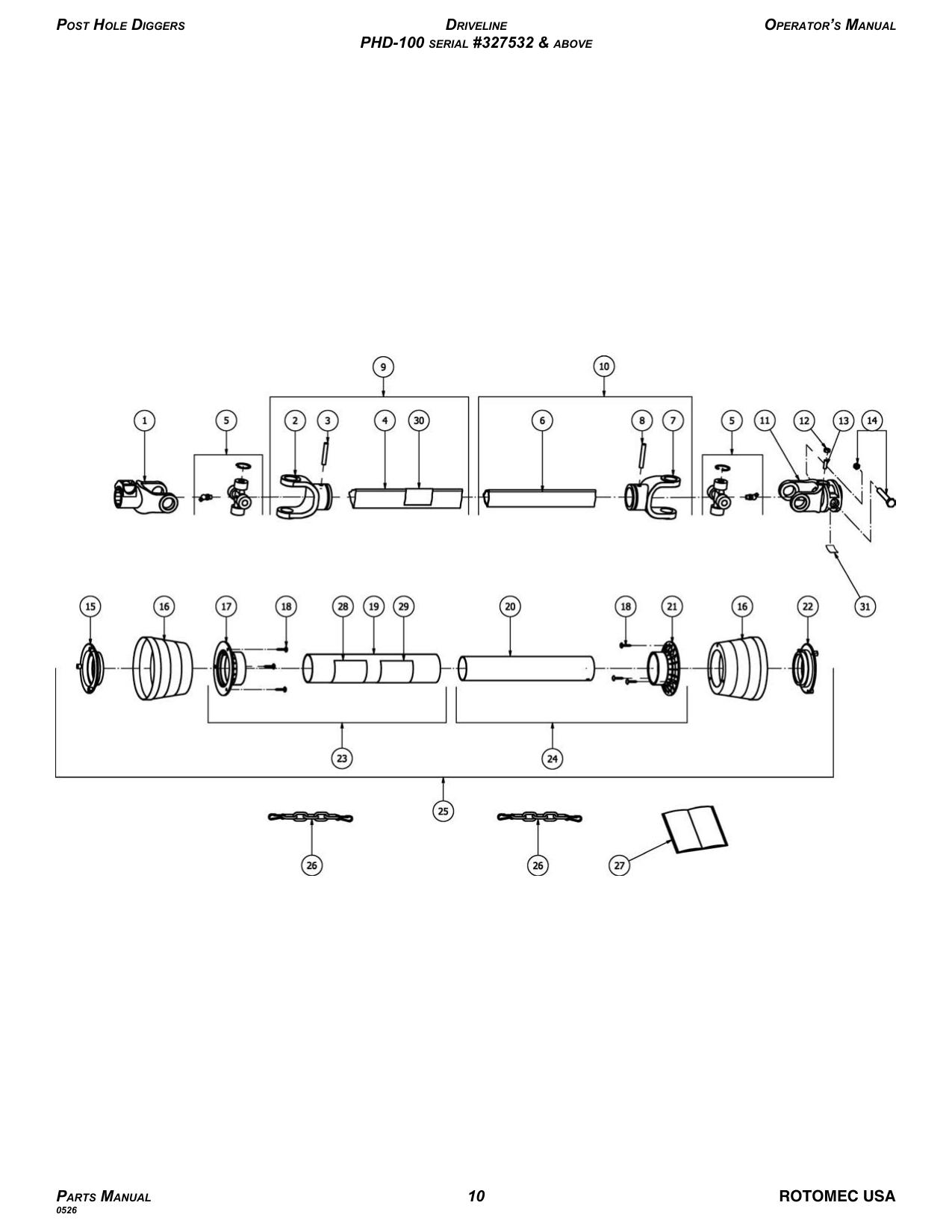

Driveline — PHD-100 (#327532 & above)
Driveline assembly for PHD-100 units with serial #327532 and above.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 0800203B |
PTO yoke (tractor end) | PHD-100 | 1 | |
| 2 | 08002021B |
Yoke, outer tube | PHD-100 | 1 | |
| 3 | 0008679 |
Roll pin Ø8×55 | PHD-100 | 1 | |
| 4 | 1363091AB |
Outer tube | PHD-100 | 1 | |
| 5 | 08202B |
Cross w/bearing | PHD-100 | 2 | |
| 6 | 1294091AB |
Inner tube | PHD-100 | 1 | |
| 7 | 08002011B |
Yoke, inner tube | PHD-100 | 1 | |
| 8 | 0026342 |
Roll pin Ø8×50 | PHD-100 | 1 | |
| 9 | 1B021032B |
Outer tube w/yoke, complete | PHD-100 | 1 | |
| 10 | 1B021031B |
Inner tube w/yoke, complete | PHD-100 | 1 | |
| 11 | 0201K58AB |
PTO yoke (implement end) | PHD-100 | 1 | |
| 12 | 503425B |
Nut HH 1/4"-20 G2 Z | PHD-100 | 1 | |
| 13 | 501568B |
Set screw 1/4"-20×0.75" N | PHD-100 | 1 | |
| 14 | 503758B |
Bolt HH 1/4"-20×2.50" G2 Z P w/nut ES 1/4"-20 | PHD-100 | 1 | |
| 15 | 5502C001B |
Locking ring, outer tube; #327532 & above | PHD-100 | 1 | |
| 16 | 1902C001B |
Standard cone; #327532 & above | PHD-100 | 2 | |
| 17 | 5402C001B |
Rigid cone, outer tube; #327532 & above | PHD-100 | 1 | |
| 18 | 98052242B |
Self tapping screw PN M4.8×22 Z | PHD-100 | 6 | |
| 19 | 961NB103B |
Shield, outer tube; #327532 & above | PHD-100 | 1 | |
| 20 | 955NB103B |
Shield, inner tube; #327532 & above | PHD-100 | 1 | |
| 21 | 5402C002B |
Rigid cone, inner tube; #327532 & above | PHD-100 | 1 | |
| 22 | 5502C002B |
Locking ring, inner tube; #327532 & above | PHD-100 | 1 | |
| 23 | 4B021032B |
Shield, outer tube w/cone; #327532 & above | PHD-100 | 1 | |
| 24 | 4B021031B |
Shield, inner tube w/cone; #327532 & above | PHD-100 | 1 | |
| 25 | 3CE02103B |
Shield, complete | PHD-100 | 1 | |
| 26 | 52000001B |
Chain, anti-rotation | PHD-100 | 2 | |
| 27 | 09872101B |
Operator's manual, driveline Binacchi | PHD-100 | 1 | |
| 28 | 09872010B |
Decal "rotating driveline" pictorial – ISO standard, outer shield | PHD-100 | 1 | |
| 29 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-100 | 1 | |
| 30 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-100 | 1 | |
| 31 | 950970B |
Decal "DANGER – Entanglement hazard. Guard missing", yoke; #338885 & above | PHD-100 | 1 | |
| DL | 0500155 |
Driveline, complete; PHD-100 | PHD-100 | – |

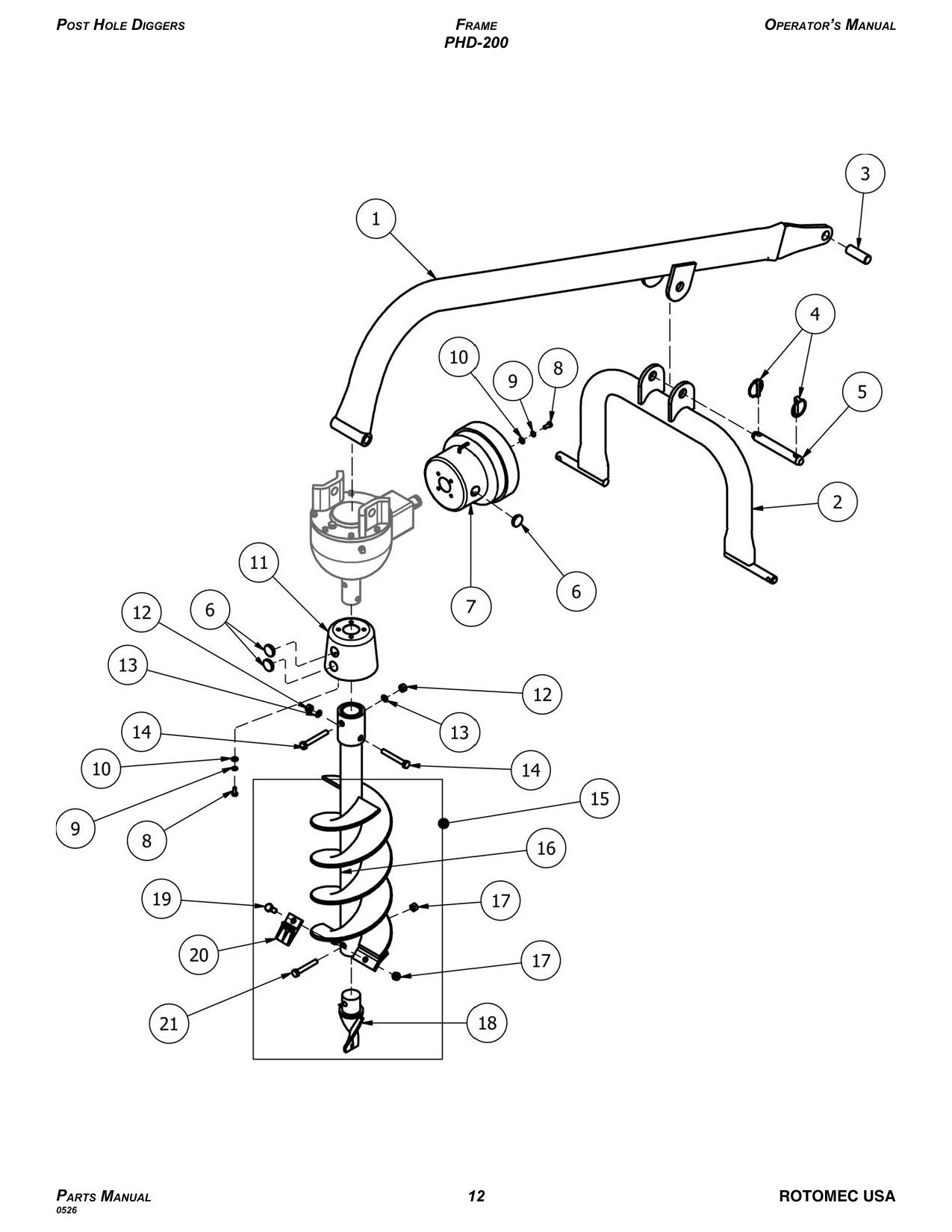

Frame — PHD-200
Main frame assembly for the PHD-200 post hole digger.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 501534B |
Boom assembly; PHD-200 | PHD-200 | 1 | |
| 2 | 501535B |
Yoke; PHD-200 | PHD-200 | 1 | |
| 3 | 0018010 |
Bushing cat. 2-1 | PHD-200 | 1 | |
| 4 | 0018266 |
Lynch pin Ø11×45 | PHD-200 | 2 | |
| 5 | 501544B |
Pin, top link 1"x5.38" Z; #296542 & below (no longer available — order 0018020 + 0018266) | PHD-200 | 1 | — |
| 5 | 0018020 |
Pin, hitch Ø25×148.5 Z; #296543 & above | PHD-200 | 1 | |
| 6 | 0006647 |
Cap, guard | PHD-200 | 4 | |
| 7 | 0018038 |
Guard, gearbox | PHD-200 | 1 | |
| 8 | 503869B |
Bolt 5/16"-18×0.75" G5 Z F | PHD-200 | 8 | |
| 9 | 1605017 |
Washer lock 5/16" Z | PHD-200 | 8 | |
| 10 | 1605021 |
Washer flat 5/16" USS Z | PHD-200 | 8 | |
| 11 | 0018032 |
Guard, auger | PHD-200 | 1 | |
| 12 | 0001106 |
Nut HH M12-1.75 C6 Z MD | PHD-200 | 2 | |
| 13 | 0001077 |
Washer lock Ø12 Z | PHD-200 | 2 | |
| 14 | 0015122 |
Bolt HH M12-1.75×90 C8.8 Z P | PHD-200 | 2 | |
| 15 | 38-206-531 |
Auger, 6" single flight 48" long, complete | PHD-200 PHD-300 PHD-400 | – | |
| 15 | 38-209-531 |
Auger, 9" double flighted 48" long, complete | PHD-200 PHD-300 PHD-400 | – | |
| 15 | 38-212-531 |
Auger, 12" double flighted 48" long, complete | PHD-200 PHD-300 PHD-400 | – | |
| 16 | 7900206 |
6"x48" auger weldment (order 38-206-531 complete auger) | PHD-200 PHD-300 PHD-400 | – | — |
| 16 | 7900209 |
9"x48" auger weldment (order 38-209-531 complete auger) | PHD-200 PHD-300 PHD-400 | – | — |
| 16 | 7900212 |
12"x48" auger weldment (order 38-212-531 complete auger) | PHD-200 PHD-300 PHD-400 | – | — |
| 17 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 6" auger | PHD-200 | 2 | |
| 17 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 9" auger | PHD-200 | 3 | |
| 17 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 12" auger | PHD-200 | 5 | |
| 18 | 501541B |
Auger point, standard | PHD-200 | 1 | |
| 18 | 503928B |
Auger point, fish tail | PHD-200 | 1 | |
| 19 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 6" auger | PHD-200 | 1 | |
| 19 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 9" auger | PHD-200 | 2 | |
| 19 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 12" auger | PHD-200 | 4 | |
| 20 | 501540B |
Knife, 6" auger | PHD-200 | 1 | |
| 20 | 501540B |
Knife, 9" auger | PHD-200 | 2 | |
| 20 | 501540B |
Knife, 12" auger | PHD-200 | 4 | |
| 21 | 0192236 |
Bolt HH M12-1.75×70 C8.8 Z P | PHD-200 | 1 |

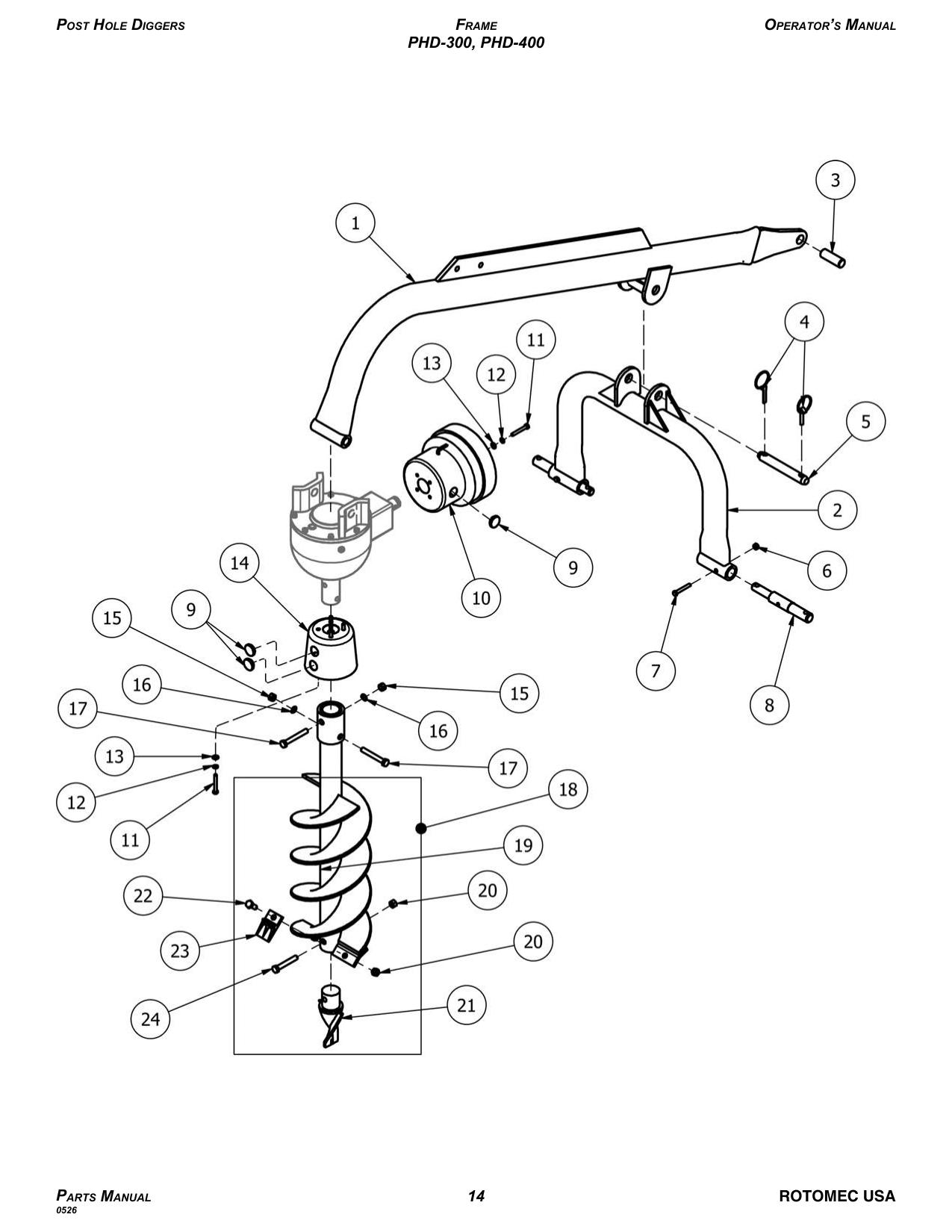

Frame — PHD-300 & PHD-400
Main frame assembly shared by the PHD-300 and PHD-400 post hole diggers.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 501700B |
Boom assembly; PHD-300 | PHD-300 PHD-400 | 1 | |
| 1 | 503739B |
Boom assembly; PHD-400 | PHD-300 PHD-400 | 1 | |
| 2 | 501701B |
Yoke; PHD-300, PHD-400 #348884 & below (no longer available — order 0018011 + two 0018025) | PHD-300 PHD-400 | 1 | — |
| 2 | 0018011 |
Yoke; PHD-300, PHD-400 #348885 & above | PHD-300 PHD-400 | 1 | |
| 3 | 0018010 |
Bushing cat. 2-1 | PHD-300 PHD-400 | 1 | |
| 4 | 0018266 |
Lynch pin Ø11×45 | PHD-300 PHD-400 | 2 | |
| 5 | 501544B |
Pin, top link 1"x5.38" Z; #296542 & below (no longer available — order 0018020 + 0018266) | PHD-300 PHD-400 | 1 | — |
| 5 | 0018020 |
Pin, hitch Ø25×148.5 Z; #296543 & above | PHD-300 PHD-400 | 1 | |
| 6 | 502868B |
Nut ES 5/16"-18 Z; PHD-300, PHD-400 | PHD-300 PHD-400 | 2 | |
| 7 | 503698B |
Bolt HH 5/16"-18×2.25" G5 Z P; PHD-300, PHD-400 | PHD-300 PHD-400 | 2 | |
| 8 | 501702B |
Hitch pin cat. 1-2 Ø30.5; PHD-300, PHD-400 #348884 & below | PHD-300 PHD-400 | 2 | |
| 8 | 0018025 |
Hitch pin cat. 1-2 Ø28; PHD-300, PHD-400 #348885 & above | PHD-300 PHD-400 | 2 | |
| 9 | 0006647 |
Cap, guard | PHD-300 PHD-400 | 4 | |
| 10 | 0018038 |
Guard, gearbox | PHD-300 PHD-400 | 1 | |
| 11 | 503869B |
Bolt 5/16"-18×0.75" G5 Z F | PHD-300 PHD-400 | 8 | |
| 12 | 1605017 |
Washer lock 5/16" Z | PHD-300 PHD-400 | 8 | |
| 13 | 1605021 |
Washer flat 5/16" USS Z | PHD-300 PHD-400 | 8 | |
| 14 | 0018032 |
Guard, auger | PHD-300 PHD-400 | 1 | |
| 15 | 0001106 |
Nut HH M12-1.75 C6 Z MD | PHD-300 PHD-400 | 2 | |
| 16 | 0001077 |
Washer lock Ø12 Z | PHD-300 PHD-400 | 2 | |
| 17 | 0015122 |
Bolt HH M12-1.75×90 C8.8 Z P | PHD-300 PHD-400 | 2 | |
| 18 | 38-218-531 |
Auger, 18" double flighted 48" long, complete (for 6/9/12" augers see PHD-200 frame page) | PHD-300 PHD-400 | – | |
| 18 | 38-224-531 |
Auger, 24" double flighted 48" long, complete | PHD-300 PHD-400 | – | |
| 18 | 38-230-531 |
Auger, 30" double flighted 44" long, complete | PHD-300 PHD-400 | – | |
| 19 | 7900218 |
18"x48" auger weldment (order 38-218-531 complete auger) | PHD-300 PHD-400 | – | — |
| 19 | 7900224 |
24"x48" auger weldment (order 38-224-531 complete auger) | PHD-300 PHD-400 | – | — |
| 19 | 7900230 |
30"x44" auger weldment (order 38-230-531 complete auger) | PHD-300 PHD-400 | – | — |
| 20 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 18" auger | PHD-300 PHD-400 | 7 | |
| 20 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 24" auger | PHD-300 PHD-400 | 9 | |
| 20 | 0030064 |
Nut PT M12-1.75 C6 TK Z; 30" auger | PHD-300 PHD-400 | 13 | |
| 21 | 501541B |
Auger point, standard | PHD-300 PHD-400 | 1 | |
| 21 | 503928B |
Auger point, fish tail | PHD-300 PHD-400 | 1 | |
| 22 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 18" auger | PHD-300 PHD-400 | 6 | |
| 22 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 24" auger | PHD-300 PHD-400 | 8 | |
| 22 | 0015255 |
Bolt HH M12-1.75×30 C8.8 Z F; 30" auger | PHD-300 PHD-400 | 12 | |
| 23 | 501540B |
Knife, 18" auger | PHD-300 PHD-400 | 6 | |
| 23 | 501540B |
Knife, 24" auger | PHD-300 PHD-400 | 8 | |
| 23 | 501540B |
Knife, 30" auger | PHD-300 PHD-400 | 12 | |
| 24 | 0192236 |
Bolt HH M12-1.75×70 C8.8 Z P | PHD-300 PHD-400 | 1 | |
| 24 | 0015122 |
Bolt HH M12-1.75×90 C8.8 Z P; 30" auger only | PHD-300 PHD-400 | 1 |

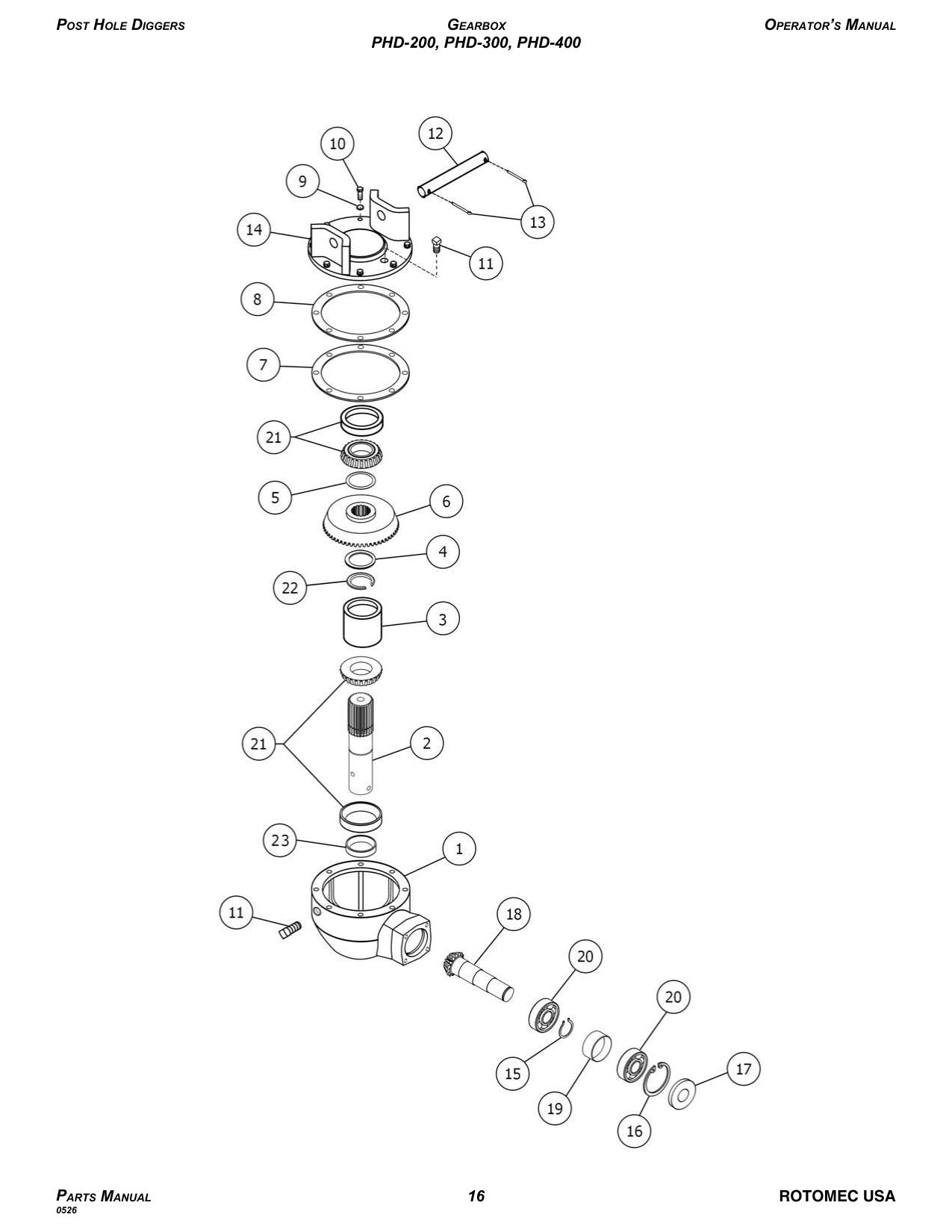

Gearbox — PHD-200, PHD-300 & PHD-400
Shared gearbox assembly (540 rpm) for PHD-200, PHD-300 and PHD-400. Oil fill varies by model: PHD-200 ~64 fl.oz. (2 qt.); PHD-300 ~112 fl.oz. (3.5 qt.); PHD-400 ~160 fl.oz. (5 qt.) SAE 90W gear oil.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 502272B |
Housing, gearbox; PHD-200 | PHD-200 | 1 | |
| 1 | 502248B |
Housing, gearbox; PHD-300 | PHD-300 | 1 | |
| 1 | 503725B |
Housing, gearbox; PHD-400 | PHD-400 | 1 | |
| 2 | 502273B |
Output shaft; PHD-200 | PHD-200 | 1 | |
| 2 | 502249B |
Output shaft; PHD-300 | PHD-300 | 1 | |
| 2 | 503733B |
Output shaft; PHD-400 | PHD-400 | 1 | |
| 3 | 502274B |
Spacer, output bearing; PHD-200 | PHD-200 | 1 | |
| 3 | 502250B |
Spacer, output bearing; PHD-300 | PHD-300 | 1 | |
| 3 | 503735B |
Spacer, output bearing; PHD-400 | PHD-400 | 1 | |
| 4 | 502251B |
Shim (0.30) | PHD-200 PHD-300 PHD-400 | – | |
| 5 | 502252B |
Shim (0.50) | PHD-200 PHD-300 PHD-400 | – | |
| 6 | 502275B |
Output gear Z33; PHD-200 | PHD-200 | 1 | |
| 6 | 502253B |
Output gear Z38; PHD-300 | PHD-300 | 1 | |
| 6 | 503736B |
Output gear Z44; PHD-400 | PHD-400 | 1 | |
| 7 | 502276B |
Gasket, hanger cap (0.10); PHD-200 | PHD-200 | – | |
| 7 | 502254B |
Gasket, hanger cap (0.10); PHD-300 | PHD-300 | – | |
| 7 | 503728B |
Gasket, hanger cap (0.10); PHD-400 | PHD-400 | – | |
| 8 | 502277B |
Gasket, hanger cap (0.25); PHD-200 | PHD-200 | – | |
| 8 | 502255B |
Gasket, hanger cap (0.25); PHD-300 | PHD-300 | – | |
| 8 | 503729B |
Gasket, hanger cap (0.25); PHD-400 | PHD-400 | – | |
| 9 | 0001280 |
Washer lock Ø10 | PHD-200 PHD-300 PHD-400 | 8 | |
| 10 | 0001278 |
Bolt HH M10-1.50×30 C8.8 Z F | PHD-200 PHD-300 PHD-400 | 8 | |
| 11 | 502257B |
Fill plug ½" | PHD-200 PHD-300 PHD-400 | 2 | |
| 12 | 502258B |
Hanger shaft | PHD-200 PHD-300 PHD-400 | 1 | |
| 13 | 0005638 |
Cotter pin Ø5×50 Z | PHD-200 PHD-300 PHD-400 | 2 | |
| 14 | 502278B |
Hanger cap; PHD-200 | PHD-200 | 1 | |
| 14 | 502260B |
Hanger cap; PHD-300 | PHD-300 | 1 | |
| 14 | 503727B |
Hanger cap; PHD-400 | PHD-400 | 1 | |
| 15 | 0042122 |
Snap ring, outer Ø35 | PHD-200 PHD-300 PHD-400 | 1 | |
| 16 | 0025329 |
Snap ring, inner Ø72 | PHD-200 PHD-300 PHD-400 | 1 | |
| 17 | 0030211 |
Oil seal 35.72.10 | PHD-200 PHD-300 PHD-400 | 1 | |
| 18 | 502281B |
Pinion gear w/shaft Z11; PHD-200 | PHD-200 | 1 | |
| 18 | 502265B |
Pinion gear w/shaft Z11; PHD-300 | PHD-300 | 1 | |
| 18 | 503731B |
Pinion gear w/shaft Z11; PHD-400 | PHD-400 | 1 | |
| 19 | 502266B |
Spacer | PHD-200 PHD-300 PHD-400 | 2 | |
| 20 | 0025332A |
Bearing 6207 | PHD-200 PHD-300 PHD-400 | 2 | |
| 21 | 0004539 |
Bearing 30210 | PHD-200 PHD-300 PHD-400 | 1 | |
| 22 | 502269B |
Snap ring, outer Ø46 | PHD-200 PHD-300 PHD-400 | 1 | |
| 23 | 502270B |
Oil seal 50.70.12 | PHD-200 PHD-300 PHD-400 | 1 | |
| GB | 502282B |
Gearbox 540 rpm, complete; PHD-200 | PHD-200 | – | |
| GB | 502271B |
Gearbox 540 rpm, complete; PHD-300 | PHD-300 | – | |
| GB | 503724B |
Gearbox 540 rpm, complete; PHD-400 | PHD-400 | – |

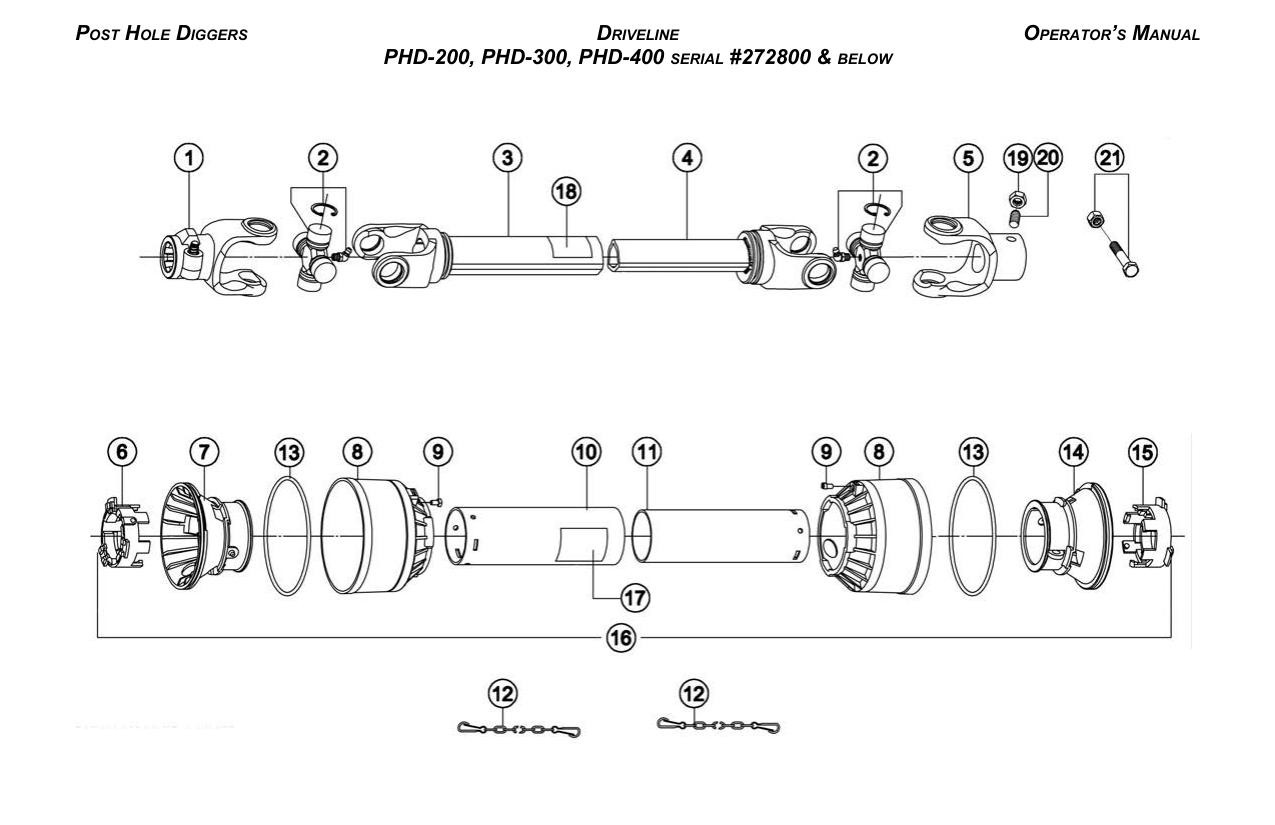

Driveline — PHD-200, PHD-300, PHD-400 (#272800 & below)
Driveline assembly for PHD-200, PHD-300 and PHD-400 units with serial #272800 and below. Shielding 90SS4105C is no longer available — order 3CE03125B.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 1023010C |
PTO yoke (tractor end) (no longer available — order 0800303AB) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 2 | 1003020C |
Cross w/bearing (no longer available — order 08203B) | PHD-200 PHD-300 PHD-400 | 2 | — |
| 3 | 1943107NC |
Outer tube w/yoke (no longer available — order 1B031252B) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 4 | 1953109NC |
Inner tube w/yoke (no longer available — order Z131106A) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 5 | 1073040C |
PTO yoke (implement end) (no longer available — order 1103909A) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 6 | 1784210C |
Locking ring, outer tube; #272800 & below | PHD-200 PHD-300 PHD-400 | 1 | |
| 7 | 1784201C |
Rigid cone, outer tube; #272800 & below | PHD-200 PHD-300 PHD-400 | 1 | |
| 8 | 1784203C |
Standard cone; #272800 & below | PHD-200 PHD-300 PHD-400 | 2 | |
| 9 | 1784212C |
Pin; #272800 & below | PHD-200 PHD-300 PHD-400 | 2 | |
| 10 | 1773105C |
Shield, outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 11 | 1872105C |
Shield, inner tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 12 | 1006065C |
Chain, anti-rotation (no longer available — order 52000001B) | PHD-200 PHD-300 PHD-400 | 2 | — |
| 13 | 1213233C |
Stiffening ring; #272800 & below | PHD-200 PHD-300 PHD-400 | 2 | |
| 14 | 1784202C |
Rigid cone, inner tube; #272800 & below | PHD-200 PHD-300 PHD-400 | 1 | |
| 15 | 1784211C |
Locking ring, inner tube; #272800 & below | PHD-200 PHD-300 PHD-400 | 1 | |
| 16 | 90SS4105C |
Shield, complete; #272800 & below (no longer available — order 3CE03125B) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 17 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-200 PHD-300 PHD-400 | 1 | |
| 18 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 19 | 503425B |
Hex nut ¼" | PHD-200 PHD-300 PHD-400 | 1 | |
| 20 | 501568B |
Set screw ¼" | PHD-200 PHD-300 PHD-400 | 1 | |
| 21 | 503254B |
Shear bolt and nut 3/8"x3" grade 2 | PHD-200 PHD-300 PHD-400 | 1 | |
| DL | 0500452 |
Driveline, complete; PHD-200, PHD-300, PHD-400 (no longer available — order 0500156) | PHD-200 PHD-300 PHD-400 | – | — |

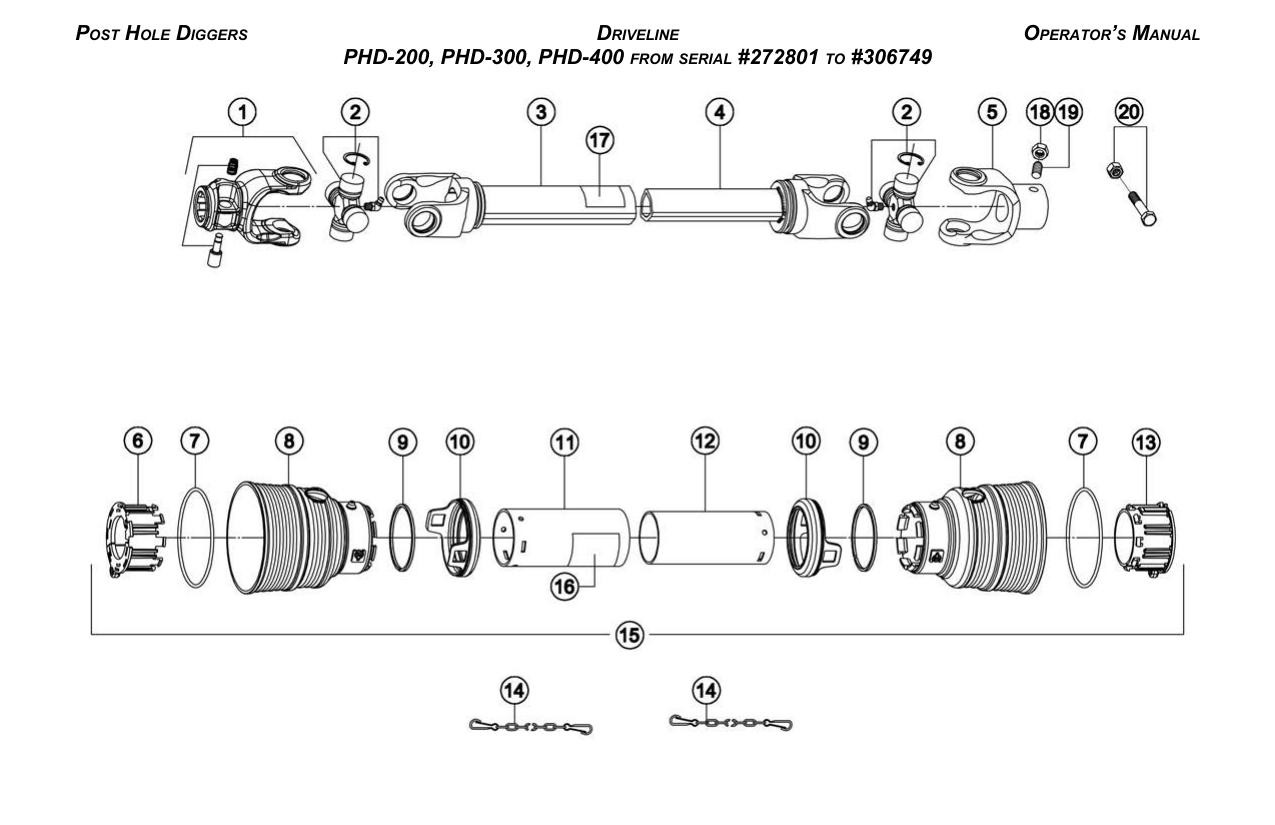

Driveline — PHD-200, PHD-300, PHD-400 (#272801–#306749)
Driveline assembly for PHD-200, PHD-300 and PHD-400 units with serials between #272801 and #306749. Driveline 0500452 is no longer available — order 0500156.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 1023010C |
PTO yoke (tractor end) (no longer available — order 0800303AB) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 2 | 1003020C |
Cross w/bearing (no longer available — order 08203B) | PHD-200 PHD-300 PHD-400 | 2 | — |
| 3 | 1943107NC |
Outer tube w/yoke (no longer available — order 1B031252B) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 4 | 1953109NC |
Inner tube w/yoke (no longer available — order Z131106A) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 5 | 1073040C |
PTO yoke (implement end) (no longer available — order 1103909A) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 6 | 1784710C |
Locking ring, outer tube; #272801–#306749 | PHD-200 PHD-300 PHD-400 | 1 | |
| 7 | 1211733C |
Stiffening ring; #272801–#306749 | PHD-200 PHD-300 PHD-400 | 2 | |
| 8 | 1781703C |
Standard cone; #272801–#306749 | PHD-200 PHD-300 PHD-400 | 2 | |
| 9 | 1211735C |
Safety ring; #272801–#306749 | PHD-200 PHD-300 PHD-400 | 2 | |
| 10 | 1881709C |
Safety sleeve; #272801–#306749 | PHD-200 PHD-300 PHD-400 | 2 | |
| 11 | 1773105C |
Shield, outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 12 | 1872105C |
Shield, inner tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 13 | 1784711C |
Locking ring, inner tube; #272801–#306749 | PHD-200 PHD-300 PHD-400 | 1 | |
| 14 | 1006065C |
Chain, anti-rotation (no longer available — order 52000001B) | PHD-200 PHD-300 PHD-400 | 2 | — |
| 15 | 96SS4105C |
Shield, complete (no longer available — order 3CE03125B) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 16 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-200 PHD-300 PHD-400 | 1 | |
| 17 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 18 | 503425B |
Hex nut ¼" | PHD-200 PHD-300 PHD-400 | 1 | |
| 19 | 501568B |
Set screw ¼" | PHD-200 PHD-300 PHD-400 | 1 | |
| 20 | 503254B |
Shear bolt and nut 3/8"x3" grade 2 | PHD-200 PHD-300 PHD-400 | 1 | |
| DL | 0500452 |
Driveline, complete; PHD-200, PHD-300, PHD-400 (no longer available — order 0500156) | PHD-200 PHD-300 PHD-400 | – | — |

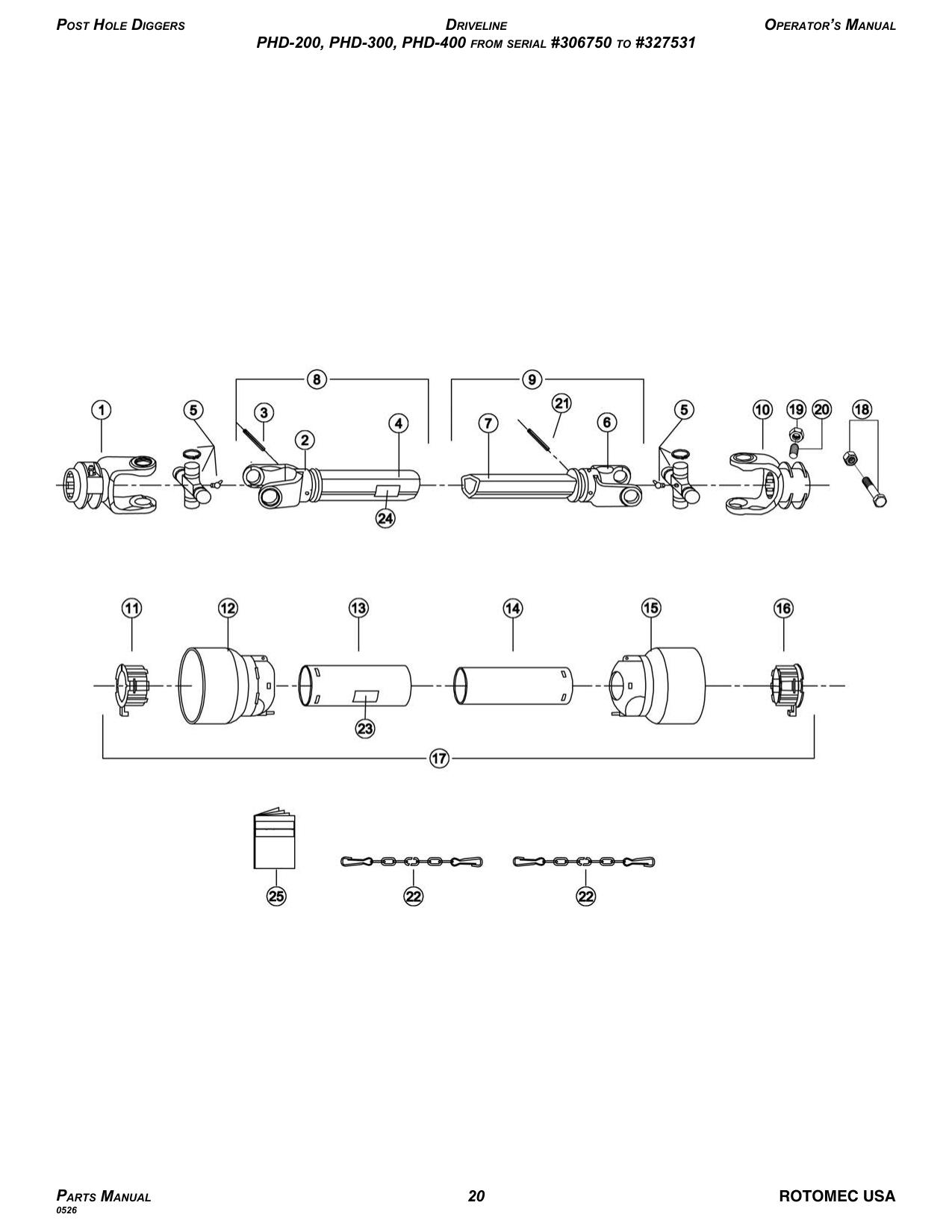

Driveline — PHD-200, PHD-300, PHD-400 (#306750–#327531)
Driveline assembly for PHD-200, PHD-300 and PHD-400 units with serials between #306750 and #327531. Driveline 0500151 is no longer available — order 0500156.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 1003138A |
PTO yoke (tractor end) (no longer available — order 0800303AB) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 2 | 1903010A |
Yoke, outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 3 | 0018047 |
Roll pin Ø8×65 | PHD-200 PHD-300 PHD-400 | 1 | |
| 4 | 3031106A |
Outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 5 | 1803010A |
Cross w/bearing (no longer available — order 08203B) | PHD-200 PHD-300 PHD-400 | 2 | — |
| 6 | 1903012A |
Yoke, inner tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 7 | 3131106A |
Inner tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 8 | Z031106A |
Outer tube w/yoke, complete (no longer available — order 1B031252B) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 9 | Z131106A |
Inner tube w/yoke, complete | PHD-200 PHD-300 PHD-400 | 1 | |
| 10 | 1103909A |
PTO yoke (implement end) | PHD-200 PHD-300 PHD-400 | 1 | |
| 11 | 6004010A |
Locking ring, outer tube; #306750–#327531 | PHD-200 PHD-300 PHD-400 | 1 | |
| 12 | 6014010A |
Standard cone, outer tube; #306750–#327531 | PHD-200 PHD-300 PHD-400 | 1 | |
| 13 | 5831046EA |
Shield, outer tube; #306750–#327531 | PHD-200 PHD-300 PHD-400 | 1 | |
| 14 | 5831046IA |
Shield, inner tube; #306750–#327531 | PHD-200 PHD-300 PHD-400 | 1 | |
| 15 | 6014012A |
Standard cone, inner tube; #306750–#327531 | PHD-200 PHD-300 PHD-400 | 1 | |
| 16 | 6004012A |
Locking ring, inner tube; #306750–#327531 | PHD-200 PHD-300 PHD-400 | 1 | |
| 17 | P33125SSA |
Shield, complete (no longer available — order 3CE03125B) | PHD-200 PHD-300 PHD-400 | 1 | — |
| 18 | 503254B |
Bolt HH 3/8"-16×3.00" G2 Z P w/nut ES 3/8"-16 | PHD-200 PHD-300 PHD-400 | 1 | |
| 19 | 503425B |
Nut HH 1/4"-20 G2 Z | PHD-200 PHD-300 PHD-400 | 1 | |
| 20 | 501568B |
Set screw 1/4"-20×0.75" N | PHD-200 PHD-300 PHD-400 | 1 | |
| 21 | 0018044 |
Roll pin Ø8×60 | PHD-200 PHD-300 PHD-400 | 1 | |
| 22 | 5990030A |
Chain, anti-rotation (no longer available — order 52000001B) | PHD-200 PHD-300 PHD-400 | 2 | — |
| 23 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-200 PHD-300 PHD-400 | 1 | |
| 24 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 25 | 8907070A |
Operator's manual, driveline AMA | PHD-200 PHD-300 PHD-400 | 1 | |
| DL | 0500151 |
Driveline, complete; PHD-200, PHD-300, PHD-400 (no longer available — order 0500156) | PHD-200 PHD-300 PHD-400 | – | — |

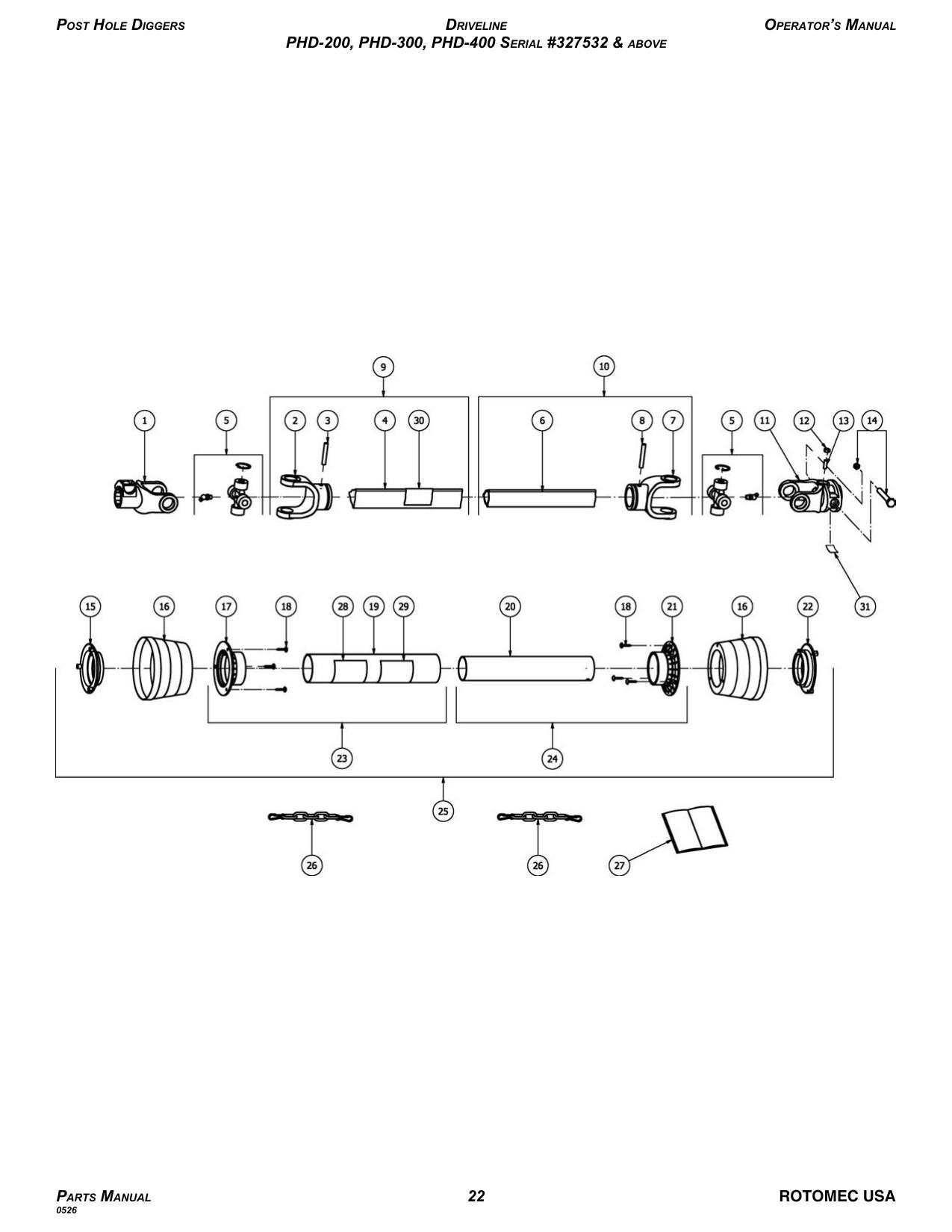

Driveline — PHD-200, PHD-300, PHD-400 (#327532 & above)
Driveline assembly for PHD-200, PHD-300 and PHD-400 units with serial #327532 and above.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 0800303AB |
PTO yoke (tractor end) | PHD-200 PHD-300 PHD-400 | 1 | |
| 2 | 08003021B |
Yoke, outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 3 | 0018044 |
Roll pin Ø8×60 | PHD-200 PHD-300 PHD-400 | 1 | |
| 4 | 1433112AB |
Outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 5 | 08203B |
Cross w/bearing | PHD-200 PHD-300 PHD-400 | 2 | |
| 6 | 1364112AB |
Inner tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 7 | 08003011B |
Yoke, inner tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 8 | 0008679 |
Roll pin Ø8×55 | PHD-200 PHD-300 PHD-400 | 1 | |
| 9 | 1B031252B |
Outer tube w/yoke, complete | PHD-200 PHD-300 PHD-400 | 1 | |
| 10 | 1B031251B |
Inner tube w/yoke, complete | PHD-200 PHD-300 PHD-400 | 1 | |
| 11 | 0301K58AB |
PTO yoke (implement end) | PHD-200 PHD-300 PHD-400 | 1 | |
| 12 | 503425B |
Nut HH 1/4"-20 G2 Z | PHD-200 PHD-300 PHD-400 | 1 | |
| 13 | 501568B |
Set screw 1/4"-20×0.75" N | PHD-200 PHD-300 PHD-400 | 1 | |
| 14 | 503254B |
Bolt HH 3/8"-16×3.00" G2 Z P w/nut ES 3/8"-16 | PHD-200 PHD-300 PHD-400 | 1 | |
| 15 | 5504C001B |
Locking ring, outer tube; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 16 | 1904C001B |
Standard cone; #327532 & above | PHD-200 PHD-300 PHD-400 | 2 | |
| 17 | 5404C001B |
Rigid cone, outer tube; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 18 | 98052242B |
Self tapping screw PN M4.8×22 Z | PHD-200 PHD-300 PHD-400 | 6 | |
| 19 | 966NB125B |
Shield, outer tube; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 20 | 961NB125B |
Shield, inner tube; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 21 | 5404C002B |
Rigid cone, inner tube; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 22 | 5504C002B |
Locking ring, inner tube; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 23 | 4B031262B |
Shield, outer tube w/cone; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 24 | 4B031261B |
Shield, inner tube w/cone; #327532 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| 25 | 3CE03125B |
Shield, complete | PHD-200 PHD-300 PHD-400 | 1 | |
| 26 | 52000001B |
Chain, anti-rotation | PHD-200 PHD-300 PHD-400 | 2 | |
| 27 | 09872101B |
Operator's manual, driveline Binacchi | PHD-200 PHD-300 PHD-400 | 1 | |
| 28 | 09872010B |
Decal "rotating driveline" pictorial – ISO standard, outer shield | PHD-200 PHD-300 PHD-400 | 1 | |
| 29 | 950463B |
Decal "DANGER – Rotating driveline, keep away", outer shield | PHD-200 PHD-300 PHD-400 | 1 | |
| 30 | 950464B |
Decal "DANGER – Guard missing, do not operate", outer tube | PHD-200 PHD-300 PHD-400 | 1 | |
| 31 | 950970B |
Decal "DANGER – Entanglement hazard. Guard missing", yoke; #338885 & above | PHD-200 PHD-300 PHD-400 | 1 | |
| DL | 0500156 |
Driveline, complete; PHD-200, PHD-300, PHD-400 | PHD-200 PHD-300 PHD-400 | – |

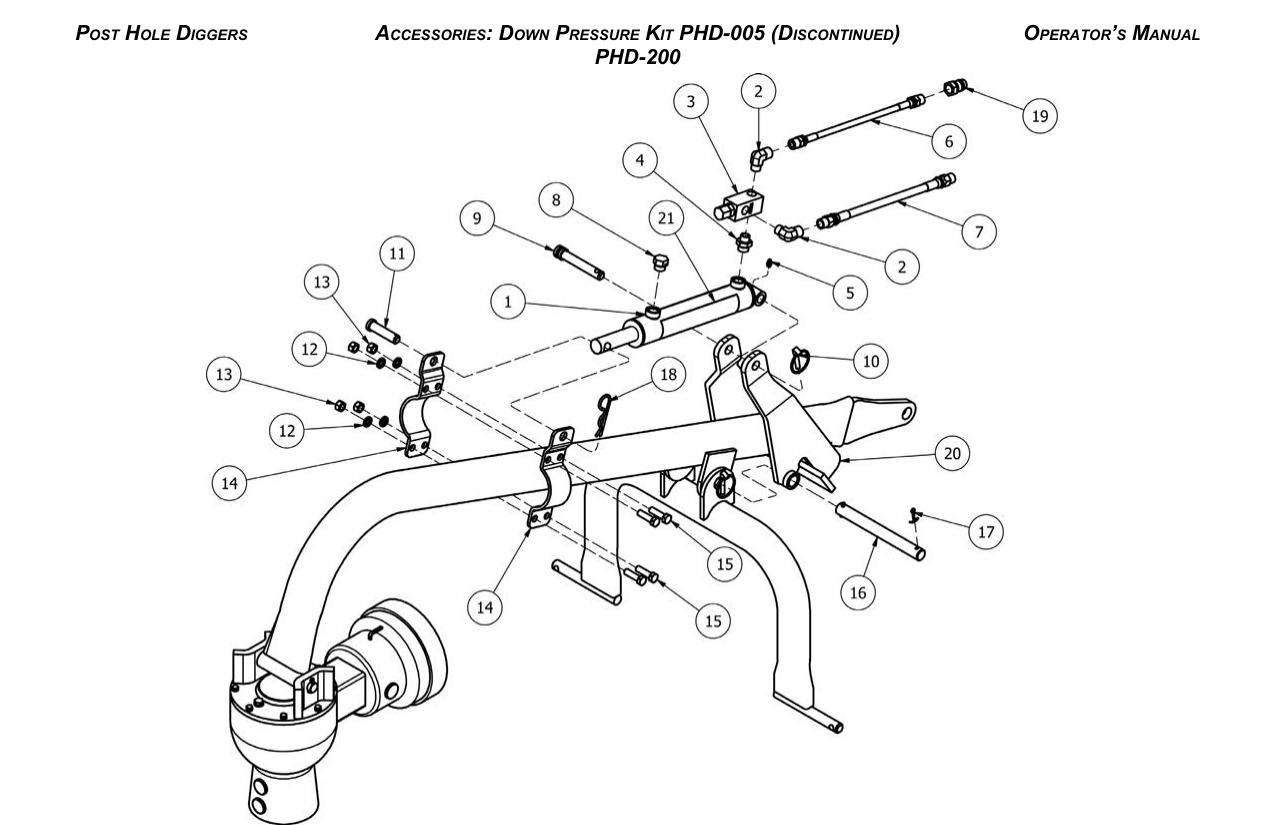

Down Pressure Kit PHD-005 — PHD-200 (Discontinued)
Hydraulic down pressure kit for PHD-200. DISCONTINUED — order kit 38-009-9154 instead. Hydraulic cylinder 503824B is no longer available — order 0018152.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 503824B |
Hydraulic cylinder (no longer available — order 0018152) | PHD-200 | 1 | — |
| 2 | 7900008 |
90° Elbow 1/2" FNPTx1/2" MNPT | PHD-200 | 2 | |
| 3 | 503823B |
Relief valve | PHD-200 | 1 | |
| 4 | 7900009 |
Adapter STR. 1/2" MNPT-3/4" MORB | PHD-200 | 1 | |
| 5 | 502447B |
Fitting, grease 1/4" PR STR Z | PHD-200 | 1 | |
| 6 | 503825B |
Hydraulic hose 1/4"x40", 1/2" MPx1/2" MP | PHD-200 | 1 | |
| 7 | 503826B |
Hydraulic hose 3/8"x40", 1/2" MPx1/2" MP | PHD-200 | 1 | |
| 8 | 503953B |
Breather plug 3/8" MORB | PHD-200 | 1 | |
| 9 | 503835B |
Pin Ø3/4"x3.875" | PHD-200 | 1 | |
| 10 | 0018266 |
Lynch pin Ø11×45 | PHD-200 | 1 | |
| 11 | 503833B |
Pin Ø3/4"x3" | PHD-200 | 1 | |
| 12 | 0052892 |
Washer lock 1/2" Z | PHD-200 | 2 | |
| 13 | 502418B |
Nut HH 1/2"-13 G2 Z | PHD-200 | 2 | |
| 14 | 503954B |
Mounting plate, down pressure kit; PHD-200 | PHD-200 | 2 | |
| 15 | 503700B |
Bolt HH 1/2"-13×1.75" G5 Z F | PHD-200 | 2 | |
| 16 | 503832B |
Pin Ø1"x9.75" | PHD-200 | 1 | |
| 17 | 0005638 |
Cotter pin Ø5×50 Z | PHD-200 | 2 | |
| 18 | 503834B |
Hairpin cotter Ø0.13"x2.50" Z | PHD-200 | 1 | |
| 19 | 502170B |
1/2" Quick connector nipple 1/2" FP | PHD-200 | 1 | |
| 20 | 503863B |
Support, down pressure kit | PHD-200 | 1 | |
| 21 | 950408B |
Decal "WARNING – High pressure hydraulic oil leaks" | PHD-200 | 1 | |
| KIT | PHD-005 |
Hydraulic down pressure kit, complete; PHD-200 (no longer available — order 38-009-9154) | PHD-200 | – | — |

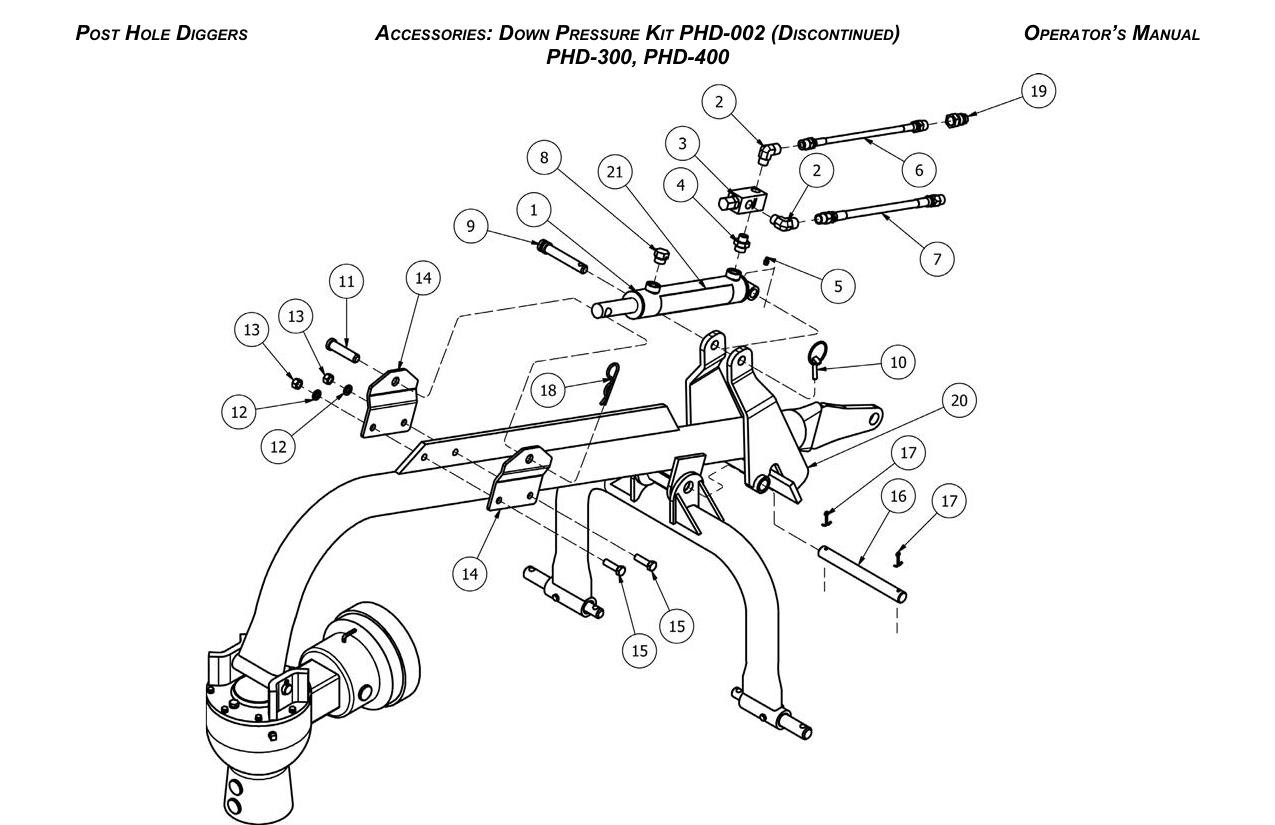

Down Pressure Kit PHD-002 — PHD-300 & PHD-400 (Discontinued)
Hydraulic down pressure kit for PHD-300 and PHD-400. DISCONTINUED — order kit 38-009-9155 instead. Hydraulic cylinder 503824B is no longer available — order 0018152.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 503824B |
Hydraulic cylinder (no longer available — order 0018152) | PHD-300 PHD-400 | 1 | — |
| 2 | 7900008 |
90° Elbow 1/2" FNPTx1/2" MNPT | PHD-300 PHD-400 | 2 | |
| 3 | 503823B |
Relief valve | PHD-300 PHD-400 | 1 | |
| 4 | 7900009 |
Adapter STR. 1/2" MNPT-3/4" MORB | PHD-300 PHD-400 | 1 | |
| 5 | 502447B |
Fitting, grease 1/4" PR STR Z | PHD-300 PHD-400 | 1 | |
| 6 | 503825B |
Hydraulic hose 1/4"x40", 1/2" MPx1/2" MP | PHD-300 PHD-400 | 1 | |
| 7 | 503826B |
Hydraulic hose 3/8"x40", 1/2" MPx1/2" MP | PHD-300 PHD-400 | 1 | |
| 8 | 503953B |
Breather plug 3/8" MORB | PHD-300 PHD-400 | 1 | |
| 9 | 503835B |
Pin Ø3/4"x3.875" | PHD-300 PHD-400 | 1 | |
| 10 | 0018266 |
Lynch pin Ø11×45 | PHD-300 PHD-400 | 1 | |
| 11 | 503833B |
Pin Ø3/4"x3" | PHD-300 PHD-400 | 1 | |
| 12 | 0052892 |
Washer lock 1/2" Z | PHD-300 PHD-400 | 2 | |
| 13 | 502418B |
Nut HH 1/2"-13 G2 Z | PHD-300 PHD-400 | 2 | |
| 14 | 503845B |
Mounting plate, down pressure kit; PHD-300, PHD-400 | PHD-300 PHD-400 | 2 | |
| 15 | 503700B |
Bolt HH 1/2"-13×1.75" G5 Z F | PHD-300 PHD-400 | 2 | |
| 16 | 503832B |
Pin Ø1"x9.75" | PHD-300 PHD-400 | 1 | |
| 17 | 0005638 |
Cotter pin Ø5×50 Z | PHD-300 PHD-400 | 2 | |
| 18 | 503834B |
Hairpin cotter Ø0.13"x2.50" Z | PHD-300 PHD-400 | 1 | |
| 19 | 502170B |
1/2" Quick connector nipple 1/2" FP | PHD-300 PHD-400 | 1 | |
| 20 | 503863B |
Support, down pressure kit | PHD-300 PHD-400 | 1 | |
| 21 | 950408B |
Decal "WARNING – High pressure hydraulic oil leaks" | PHD-300 PHD-400 | 1 | |
| KIT | PHD-002 |
Hydraulic down pressure kit, complete; PHD-300, PHD-400 (no longer available — order 38-009-9155) | PHD-300 PHD-400 | – | — |

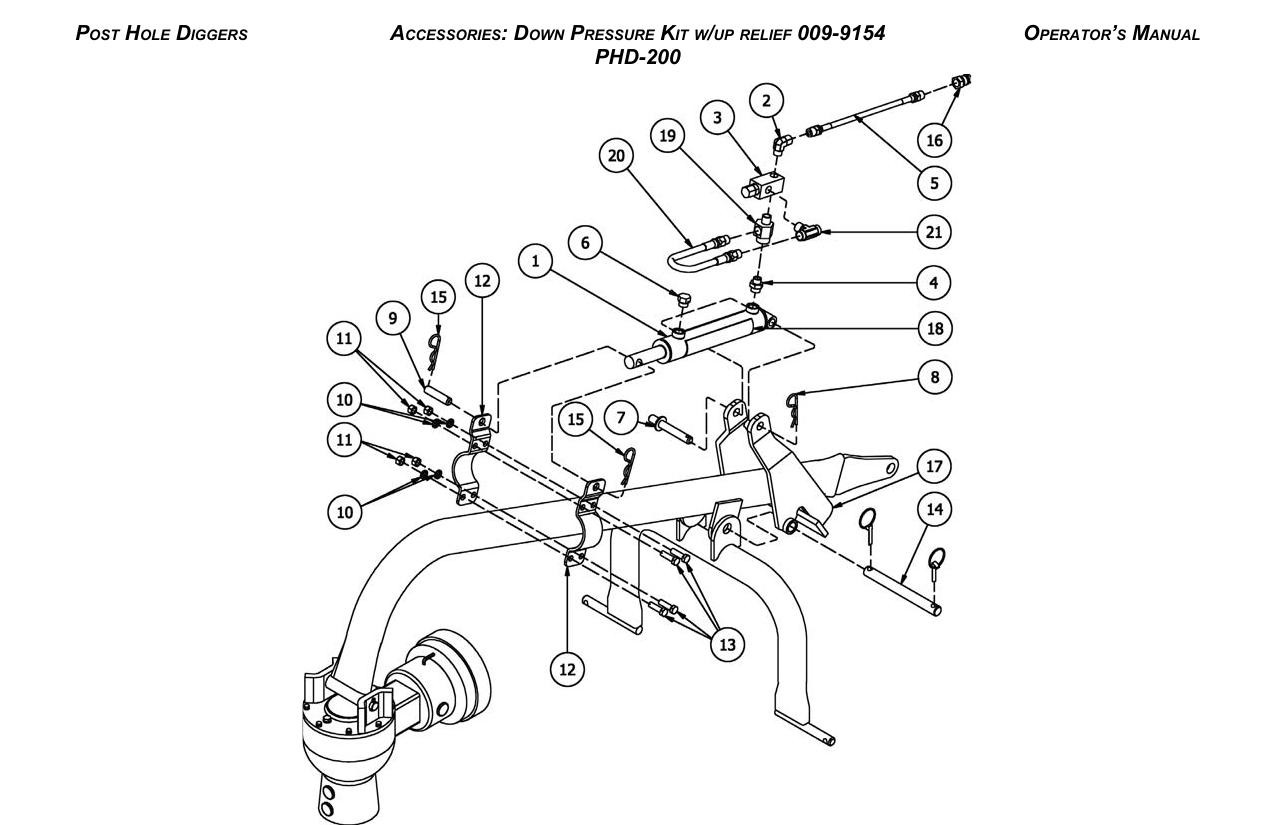

Down Pressure Kit w/Up Relief 009-9154 — PHD-200
Hydraulic down pressure kit with up relief for PHD-200 (current kit).
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 0018152 |
Hydraulic cylinder | PHD-200 | 1 | |
| 2 | 7900008 |
90° Elbow 1/2" FNPTx1/2" MNPT | PHD-200 | 1 | |
| 3 | 503823B |
Relief valve | PHD-200 | 1 | |
| 4 | 7900009 |
Adapter STR. 1/2" MNPT-3/4" MORB | PHD-200 | 1 | |
| 5 | 503825B |
Hydraulic hose 1/4"x40", 1/2" MPx1/2" MP | PHD-200 | 1 | |
| 6 | 503953B |
Breather plug 3/4"-16 MORB | PHD-200 | 1 | |
| 7 | 503835B |
Pin Ø3/4"x3.875" (until 01/2018) | PHD-200 | 1 | |
| 7 | 502933B |
Pin, top hitch Ø19×140 Z (since 02/2018) | PHD-200 | 1 | |
| 8 | 0018266 |
Lynch pin Ø11×45 (until 01/2018) | PHD-200 | 1 | |
| 8 | 0091507 |
Hairpin cotter Ø4 Z (since 02/2018) | PHD-200 | 1 | |
| 9 | 503833B |
Pin Ø3/4"x3" | PHD-200 | 1 | |
| 10 | 0001077 |
Washer lock Ø12 Z | PHD-200 | 4 | |
| 11 | 0003038 |
Nut HH M12-1.75 C6 Z TK | PHD-200 | 4 | |
| 12 | 503954B |
Mounting plate, down pressure kit; PHD-200 | PHD-200 | 2 | |
| 13 | 0007716 |
Bolt HH M12-1.75×45 C8.8 Z F | PHD-200 | 4 | |
| 14 | 503832B |
Pin Ø1"x9.75" | PHD-200 | 1 | |
| 15 | 0015240 |
Hairpin cotter Ø3 Z | PHD-200 | 2 | |
| 16 | 502170B |
1/2" Quick connector nipple 1/2" FP | PHD-200 | 1 | |
| 17 | 503863B |
Support, down pressure kit | PHD-200 | 1 | |
| 18 | 950408B |
Decal "WARNING – High pressure hydraulic oil leaks" | PHD-200 | 1 | |
| 19 | 0018161 |
Shuttle valve | PHD-200 | 1 | |
| 20 | 0018151 |
Hydraulic hose 3/8"x22", 1/2" MPx1/2" MP | PHD-200 | 1 | |
| 21 | 0018158 |
Tee 1/2" MNPTx1/2" FNPTx1/2" FNPT | PHD-200 | 1 | |
| KIT | 38-009-9154 |
Hydraulic down pressure kit w/up relief, complete; PHD-200 | PHD-200 | – |

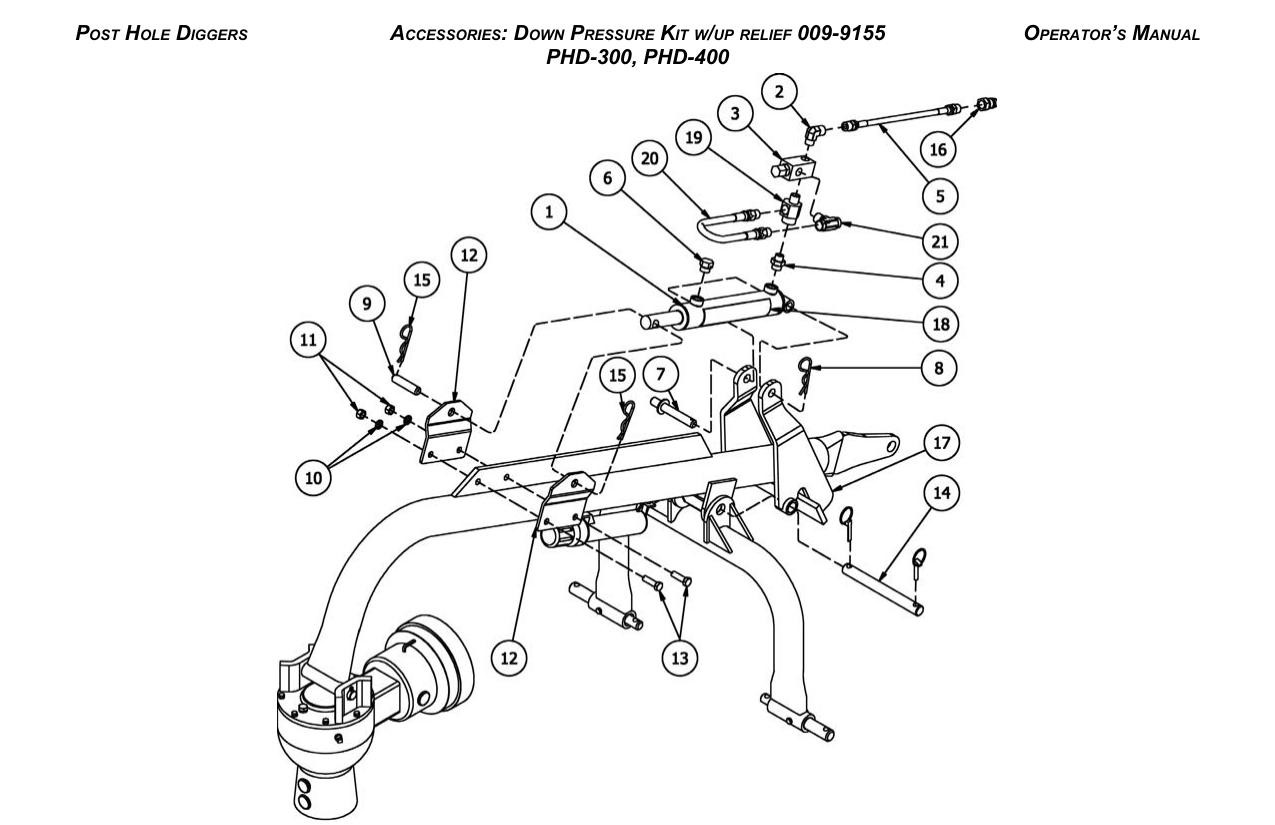

Down Pressure Kit w/Up Relief 009-9155 — PHD-300 & PHD-400
Hydraulic down pressure kit with up relief for PHD-300 and PHD-400 (current kit).
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 0018152 |
Hydraulic cylinder | PHD-300 PHD-400 | 1 | |
| 2 | 7900008 |
90° Elbow 1/2" FNPTx1/2" MNPT | PHD-300 PHD-400 | 1 | |
| 3 | 503823B |
Relief valve | PHD-300 PHD-400 | 1 | |
| 4 | 7900009 |
Adapter STR. 1/2" MNPT-3/4" MORB | PHD-300 PHD-400 | 1 | |
| 5 | 503825B |
Hydraulic hose 1/4"x40", 1/2" MPx1/2" MP | PHD-300 PHD-400 | 1 | |
| 6 | 503953B |
Breather plug 3/4"-16 MORB | PHD-300 PHD-400 | 1 | |
| 7 | 503835B |
Pin Ø3/4"x3.875" (until 01/2018) | PHD-300 PHD-400 | 1 | |
| 7 | 502933B |
Pin, top hitch Ø19×140 Z (since 02/2018) | PHD-300 PHD-400 | 1 | |
| 8 | 0018266 |
Lynch pin Ø11×45 (until 01/2018) | PHD-300 PHD-400 | 1 | |
| 8 | 0091507 |
Hairpin cotter Ø4 Z (since 02/2018) | PHD-300 PHD-400 | 1 | |
| 9 | 503833B |
Pin Ø3/4"x3" | PHD-300 PHD-400 | 1 | |
| 10 | 0001077 |
Washer lock Ø12 Z | PHD-300 PHD-400 | 2 | |
| 11 | 0003038 |
Nut HH M12-1.75 C6 Z TK | PHD-300 PHD-400 | 2 | |
| 12 | 503845B |
Mounting plate, down pressure kit; PHD-300, PHD-400 | PHD-300 PHD-400 | 2 | |
| 13 | 0007716 |
Bolt HH M12-1.75×45 C8.8 Z F | PHD-300 PHD-400 | 2 | |
| 14 | 503832B |
Pin Ø1"x9.75" | PHD-300 PHD-400 | 1 | |
| 15 | 0015240 |
Hairpin cotter Ø3 Z | PHD-300 PHD-400 | 2 | |
| 16 | 502170B |
1/2" Quick connector nipple 1/2" FP | PHD-300 PHD-400 | 1 | |
| 17 | 503863B |
Support, down pressure kit | PHD-300 PHD-400 | 1 | |
| 18 | 950408B |
Decal "WARNING – High pressure hydraulic oil leaks" | PHD-300 PHD-400 | 1 | |
| 19 | 0018161 |
Shuttle valve | PHD-300 PHD-400 | 1 | |
| 20 | 0018151 |
Hydraulic hose 3/8"x22", 1/2" MPx1/2" MP | PHD-300 PHD-400 | 1 | |
| 21 | 0018158 |
Tee 1/2" MNPTx1/2" FNPTx1/2" FNPT | PHD-300 PHD-400 | 1 | |
| KIT | 38-009-9155 |
Hydraulic down pressure kit w/up relief, complete; PHD-300, PHD-400 | PHD-300 PHD-400 | – |

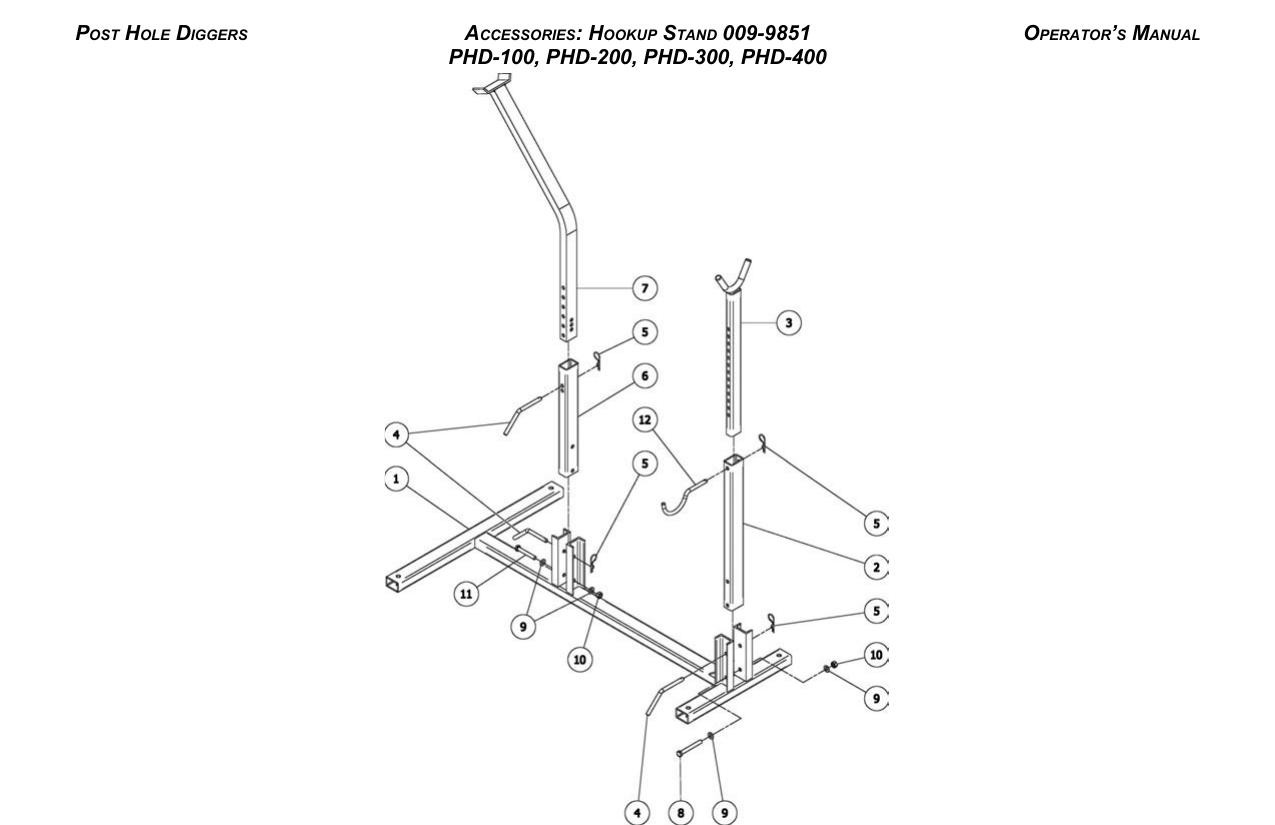

Hookup Stand 009-9851 — All Models
Hookup stand accessory, fits PHD-100, PHD-200, PHD-300 and PHD-400.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 0018100 |
Stand base | All | 1 | |
| 2 | 0018107 |
Long bending tube | All | 1 | |
| 3 | 0018110 |
Support tube | All | 1 | |
| 4 | 0084619 |
Pin locking Ø12×80 Z | All | 3 | |
| 5 | 0015240 |
Hairpin cotter Ø3 Z | All | 4 | |
| 6 | 0018120 |
Short bending tube | All | 1 | |
| 7 | 0018125 |
Support tube, gearbox | All | 1 | |
| 8 | 0034286 |
Bolt HH M12-1.75×100 C8.8 Z P | All | 1 | |
| 9 | 0002265 |
Washer flat Ø12 W | All | 4 | |
| 10 | 0030064 |
Nut PT M12-1.75 C6 TK Z | All | 2 | |
| 11 | 0091495 |
Bolt HH M12-1.75×80 C8.8 Z P | All | 1 | |
| 12 | 0018109 |
Support pin, driveline | All | 1 | |
| KIT | 38-009-9851 |
Hookup stand, complete | All | – |

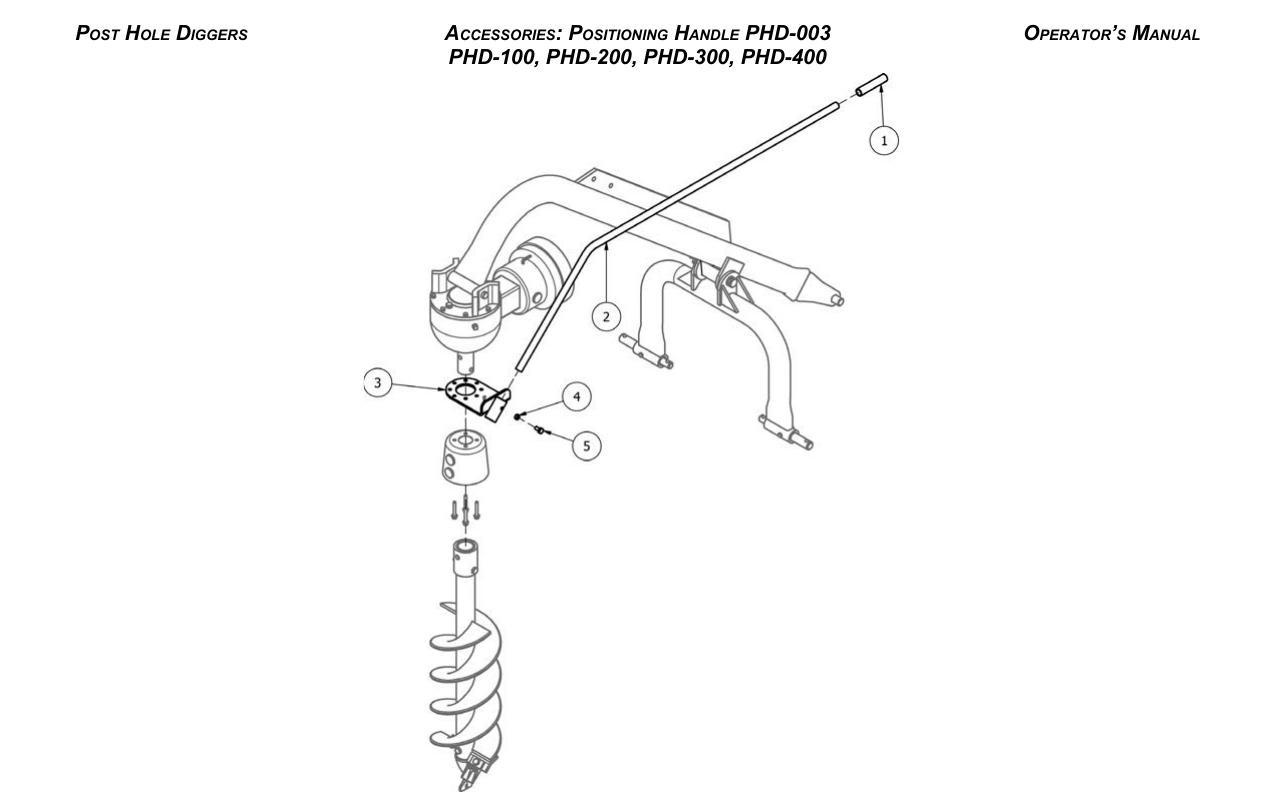

Positioning Handle PHD-003 — All Models
Positioning handle accessory, fits PHD-100, PHD-200, PHD-300 and PHD-400.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 503876B |
Grip, positioning handle | All | 1 | |
| 2 | 503969B |
Tube, positioning handle | All | 1 | |
| 3 | 503970B |
Mounting plate, positioning handle | All | 1 | |
| 4 | 0001279 |
Nut HH M10-1.50 C6 Z TK | All | 1 | |
| 5 | 0006349 |
Bolt HH M10-1.50×20 C8.8 Z F | All | 1 | |
| KIT | 38-PHD-003 |
Positioning handle, complete | All | – |

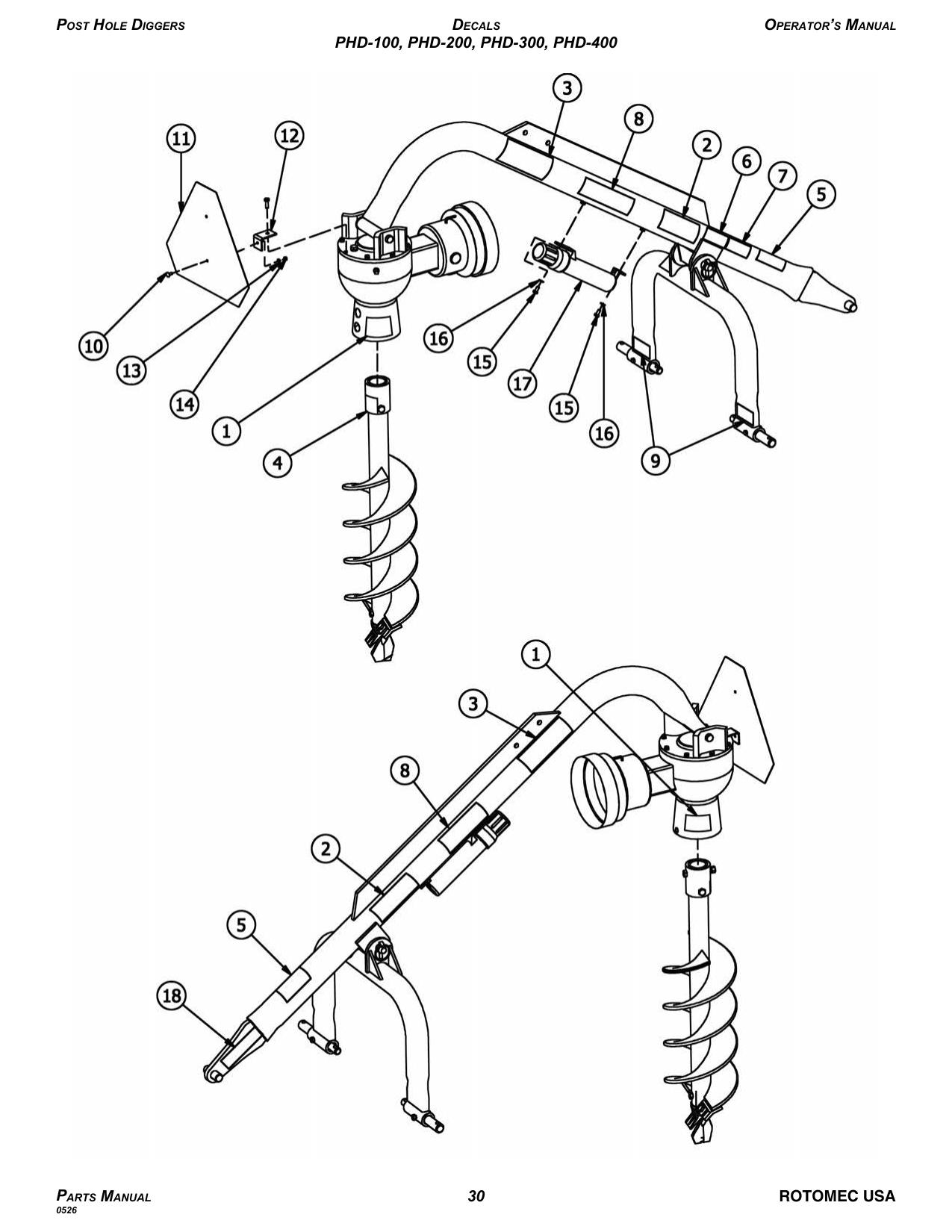

Decals — All Models
Safety, identification and SMV decals for PHD-100, PHD-200, PHD-300 and PHD-400. From serial #338885 decal 950969B replaces 950222B, 950223B and 950224B.
Click a number on the diagram to highlight the part →
| Ref | Part Number | Description | Models | Qty | Cart |
|---|---|---|---|---|---|
| 1 | 950212B |
Decal "DANGER – Rotating auger, stay away" | All | 2 | |
| 2 | 950109B |
Decal "DANGER – Avoid injury from PTO" | All | 2 | |
| 3 | 950969B |
Decal "DANGER – Entanglement hazard" (replaces 950222B/950223B/950224B from #338885) | All | 2 | |
| 4 | 950360B |
Decal "DANGER – Guard missing do not operate" | All | 1 | |
| 5 | 950962B |
Decal "811 – Call before you dig" | All | 1 | |
| 6 | 950823B |
Decal "PHD" | All | 1 | |
| 7 | 950337B |
Decal "100"; PHD-100 | PHD-100 | 1 | |
| 7 | 950328B |
Decal "200"; PHD-200 | PHD-200 | 1 | |
| 7 | 950327B |
Decal "300"; PHD-300 | PHD-300 | 1 | |
| 7 | 950371B |
Decal "400"; PHD-400 | PHD-400 | 1 | |
| 8 | 9370176 |
Decal "ROTOMEC", PHD-100 | PHD-100 | 2 | |
| 8 | 9370139 |
Decal "ROTOMEC", PHD-200, PHD-300, PHD-400 | PHD-200 PHD-300 PHD-400 | 2 | |
| 9 | 950366B |
Decal, red reflective | All | 2 | |
| 10 | 0046535 |
Bolt CR M06-1.00×16 C4.6 Z | All | 1 | |
| 11 | 950352B |
Decal "SMV" plastic emblem (option) | All | 1 | |
| 12 | 0018065 |
Mounting bracket, SMV sign (option) | All | 1 | |
| 13 | 0046536 |
Washer lock Ø06 Z (option) | All | 1 | |
| 14 | 501603B |
Nut HH M06-1.00 C6 Z TK (option) | All | 1 | |
| 15 | 0018051 |
Bolt HH M08-1.25×12 C8.8 Z F | All | 2 | |
| 16 | 0015230 |
Washer flat Ø08 Z | All | 2 | |
| 17 | 7900060 |
Manual holder Ø2"x12.50"; #327532 & above | All | 1 | |
| 18 | --- |
Decal, serial number | All | 1 | — |
| OM | 960380B |
Operator's Manual "PHD-100, PHD-200, PHD-300, PHD-400" | All | 1 | |
| PM | 961380B |
Parts Manual "PHD-100, PHD-200, PHD-300, PHD-400" | All | 1 |
