Parts for Rotary tillers

Parts Manual

Operator’s & Parts Manual · May 2026 · 142-231, 150-231, 158-231, 166-231

142-231 · 150-231 · 158-231 · 166-231

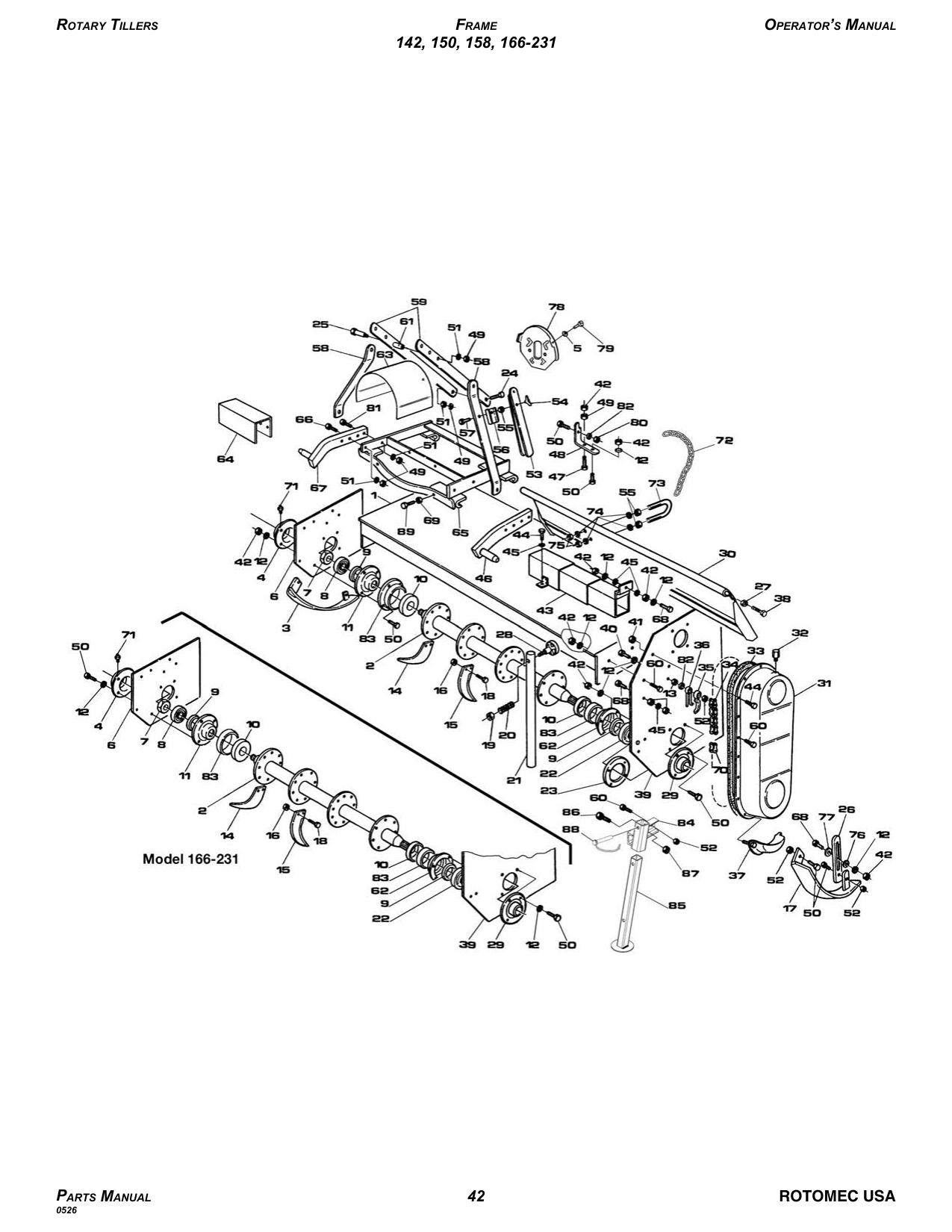

Frame

Main frame, rotor, blades, side panels, chain case, and side-shift mechanism. Used by all four models — model-specific rows are tagged so the filter narrows the table.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty	Cart
1	`0222002`	Frame 142-231; #276869 & below (no longer available — order 0222005 + footstand 0022365 + stand attachment 0022361)	142-231	1	—
1	`0222005`	Frame 142-231; #276870 & above	142-231	1
1	`0322002`	Frame 150-231; #276869 & below (no longer available — order 0322005 + footstand 0022365 + stand attachment 0022361)	150-231	1	—
1	`0322005`	Frame 150-231; #276870 & above	150-231	1
1	`0422002`	Frame 158-231; #276869 & below (no longer available — order 0422005 + footstand 0022365 + stand attachment 0022361)	158-231	1	—
1	`0422005`	Frame 158-231; #276870 & above	158-231	1
1	`0522002`	Frame 166-231; #276869 & below (no longer available — order 0522005 + footstand 0022365 + stand attachment 0022361)	166-231	1	—
1	`0522005`	Frame 166-231; #276870 & above	166-231	1
2	`0234081`	Rotor 142-231	142-231	1
2	`0334081`	Rotor 150-231	150-231	1
2	`0434081`	Rotor 158-231	158-231	1
2	`0534081`	Rotor 166-231	166-231	1
3	`0122051`	Right skid	142-231 150-231 158-231 166-231	1
4	`0030091`	Right outer cover	142-231 150-231 158-231 166-231	1
5	`0011209`	Washer, flat Ø6	142-231 150-231 158-231 166-231	2
6	`0024511`	Right side panel	142-231 150-231 158-231 166-231	1
7	`0030095`	Locking ring ES GUK M30-1.50	142-231 150-231 158-231 166-231	1
8	`0030094`	Bearing 6306	142-231 150-231 158-231 166-231	1
9	`0034098`	Oil seal 40.60.10; 142, 150, 158-231	142-231 150-231 158-231	2
9	`0057567`	Oil seal 40.56.8; 166-231	166-231	2
10	`0022074`	Dirt shield (requires welding)	142-231 150-231 158-231 166-231	2
11	`0030092`	Cover 142, 150, 158-231	142-231 150-231 158-231	1
11	`0084081`	Right rotor support 166-231	166-231	1
12	`0001280`	Washer, lock Ø10	142-231 150-231 158-231 166-231	–
13	`0001010`	Nut HH M10-1.50 C6 N TK	142-231 150-231 158-231 166-231	3
14	`0030104D`	"C" blade, right (must be ordered in pairs — right + left)	142-231 150-231 158-231 166-231	–
15	`0030104S`	"C" blade, left (must be ordered in pairs — right + left)	142-231 150-231 158-231 166-231	–
16	`0021105`	Nut PT M12-1.25 C6 Z	142-231 150-231 158-231 166-231	–
17	`0222051`	Left skid	142-231 150-231 158-231 166-231	1
18	`0021104`	Bolt SP M12-1.25×30 C8.8 Z P	142-231 150-231 158-231 166-231	–
19	`0030358`	Nut PT M14-2.00 C6 Z TK; #276869 & below	142-231 150-231 158-231 166-231	1
20	`0001176`	Spring; #276869 & below	142-231 150-231 158-231 166-231	1
21	`0034324`	Stand; #276869 & below	142-231 150-231 158-231 166-231	1
22	`0001061`	Bearing 6307	142-231 150-231 158-231 166-231	1
23	`0034121`	Disk with holes	142-231 150-231 158-231 166-231	1
24	`0015122`	Bolt HH M12-1.75×90 C8.8 Z P	142-231 150-231 158-231 166-231	1
25	`0011292`	Bolt HH M12-1.75×110 C8.8 Z P	142-231 150-231 158-231 166-231	1
26	`0021051`	Serrated adjustment arm	142-231 150-231 158-231 166-231	2
27	`0003124`	Nut HH M16-2.00 C6 Z MD	142-231 150-231 158-231 166-231	2
28	`0026187`	Bolt HH M14-2.00×70 C8.8 Z P; #276869 & below	142-231 150-231 158-231 166-231	1
29	`0034122`	Left outer cover	142-231 150-231 158-231 166-231	1
30	`0286399`	Tail gate 142-231	142-231	1
30	`0386399`	Tail gate 150-231	150-231	1
30	`0486399`	Tail gate 158-231	158-231	1
30	`0586399`	Tail gate 166-231	166-231	1
31	`0011030A`	Chain case cover	142-231 150-231 158-231 166-231	1
32	`0001107A`	Breather cap	142-231 150-231 158-231 166-231	1
33	`0022032`	Gasket	142-231 150-231 158-231 166-231	1
34	`0034141`	Chain ASA 80Sx36; 142, 150, 158-231	142-231 150-231 158-231	1
34	`0134141`	Chain ASA 80HEx36; 166-231	166-231	1
35	`0030148`	Chain tensioner	142-231 150-231 158-231 166-231	1
36	`0030158`	Spring	142-231 150-231 158-231 166-231	1
37	`0022035`	Chain case protection	142-231 150-231 158-231 166-231	1
38	`0030309`	Bolt HH M16-2.00×70 C8.8 Z F	142-231 150-231 158-231 166-231	2
39	`0024521`	Left side panel	142-231 150-231 158-231 166-231	1
40	`0130155`	Bolt HH M10-1.50×60 C8.8 Z F	142-231 150-231 158-231 166-231	1
41	`0090150`	Nut HH M10-1.50 C6 Z MD	142-231 150-231 158-231 166-231	14
42	`0001279`	Nut HH M10-1.50 C6 Z TK	142-231 150-231 158-231 166-231	–
43	`0121253`	Protection 142-231	142-231	1
43	`0221253`	Protection 150, 158-231	150-231 158-231	1
43	`0321253`	Protection 166-231	166-231	1
44	`0006349`	Bolt HH M10-1.50×20 C8.8 Z F	142-231 150-231 158-231 166-231	12
45	`0002034`	Washer, flat Ø10	142-231 150-231 158-231 166-231	5
46	`0234261`	Left lower hitch plate	142-231 150-231 158-231 166-231	1
47	`0030334`	Bolt HH M10-1.50×55 C8.8 Z F	142-231 150-231 158-231 166-231	1
48	`0030321`	Chain hitch	142-231 150-231 158-231 166-231	1
49	`0003038`	Nut HH M12-1.75 C6 Z TK	142-231 150-231 158-231 166-231	7
50	`0001278`	Bolt HH M10-1.50×30 C8.8 Z F	142-231 150-231 158-231 166-231	14
51	`0001077`	Washer, lock Ø12 Z	142-231 150-231 158-231 166-231	6
52	`0030156`	Nut PT M10-1.50 C6 Z TK	142-231 150-231 158-231 166-231	6
53	`0010335`	Ratchet arm	142-231 150-231 158-231 166-231	1
54	`0001807`	Nut wing M08-1.25 C5 Z	142-231 150-231 158-231 166-231	1
55	`0001806`	Nut HH M08-1.25 C6 Z TK	142-231 150-231 158-231 166-231	3
56	`0030339`	Locking cover	142-231 150-231 158-231 166-231	1
57	`0008037`	Bolt HH M08-1.25×50 C8.8 Z F	142-231 150-231 158-231 166-231	1
58	`0034273`	Top hitch support	142-231 150-231 158-231 166-231	2
59	`0034272`	Top hitch arm	142-231 150-231 158-231 166-231	2
60	`0033176`	Bolt HH M10-1.50×25 C8.8 Z F	142-231 150-231 158-231 166-231	5
61	`0021285`	Spacer	142-231 150-231 158-231 166-231	1
62	`0030092`	Cover 142, 150, 158-231	142-231 150-231 158-231	1
62	`0084105`	Left rotor support 166-231	166-231	1
63	`0022269`	PTO shaft protection	142-231 150-231 158-231 166-231	1
64	`0130260`	Right protection 142-231 (requires welding)	142-231	1
64	`0230260`	Right protection 150-231 (requires welding)	150-231	1
64	`0330260`	Right protection 158-231 (requires welding)	158-231	1
64	`0430260`	Right protection 166-231 (requires welding)	166-231	1
65	`0022251`	Side shift complete 142, 150, 158-231	142-231 150-231 158-231	1
65	`0122251`	Side shift complete 166-231	166-231	1
66	`0021257`	Bolt HH M12-1.75×60 C8.8 Z F	142-231 150-231 158-231 166-231	2
67	`0134261`	Lower right hitch plate	142-231 150-231 158-231 166-231	1
68	`0030331`	Bolt HH M10-1.50×50 C8.8 Z F	142-231 150-231 158-231 166-231	4
69	`0001106`	Nut HH M12-1.75 C6 Z MD	142-231 150-231 158-231 166-231	2
70	`0034150`	Chain link, master 80S; 142, 150, 158-231	142-231 150-231 158-231	1
70	`0134150`	Chain link, master 80HE; 166-231	166-231	1
70	`0034151`	Chain link, inner 80S; 142, 150, 158-231	142-231 150-231 158-231	1
70	`0134151`	Chain link, inner 80HE; 166-231	166-231	1
70	`0091206`	Chain link, false 80S; 142, 150, 158-231	142-231 150-231 158-231	1
70	`0191206`	Chain link, false 80HE; 166-231	166-231	1
71	`0001065`	Grease fitting M10-1.00	142-231 150-231 158-231 166-231	1
72	`0010318`	Chain	142-231 150-231 158-231 166-231	1
73	`0011327`	U bolt	142-231 150-231 158-231 166-231	1
74	`0015230`	Washer, flat Ø8	142-231 150-231 158-231 166-231	4
75	`0011328`	Nut PT M08-1.25 C6 Z TK	142-231 150-231 158-231 166-231	2
76	`0021053`	Washer with holes	142-231 150-231 158-231 166-231	2
77	`0021052`	Threaded washer	142-231 150-231 158-231 166-231	2
78	`0022268`	Protection support	142-231 150-231 158-231 166-231	1
79	`0011210`	Bolt PN M06-1.00×12 C4.6 Z F	142-231 150-231 158-231 166-231	2
80	`0014106`	Nut ES M10-1.50 Z TK	142-231 150-231 158-231 166-231	1
81	`0030054`	Bolt HH M12-1.75×50 C8.8 Z F	142-231 150-231 158-231 166-231	2
82	`0030157`	Washer, flat Ø10	142-231 150-231 158-231 166-231	2
83	`0010073`	Cover 142, 150, 158-231	142-231 150-231 158-231	2
83	`0084083`	Dirt shield 166-231 (requires welding)	166-231	2
84	`0022361`	Stand attachment; #276870 & above	142-231 150-231 158-231 166-231	1
85	`0022365`	Stand; #276870 & above	142-231 150-231 158-231 166-231	1
86	`0084650`	Bolt HH M18-2.50×30 C8.8 Z F	142-231 150-231 158-231 166-231	1
87	`0017506`	Nut PT M18-2.50 C6 Z TK	142-231 150-231 158-231 166-231	1
88	`0011333`	Cotter pin Ø10×70; #276870 & above	142-231 150-231 158-231 166-231	1
89	`0022280`	Side shift stop bolt; #276870 & above	142-231 150-231 158-231 166-231	1

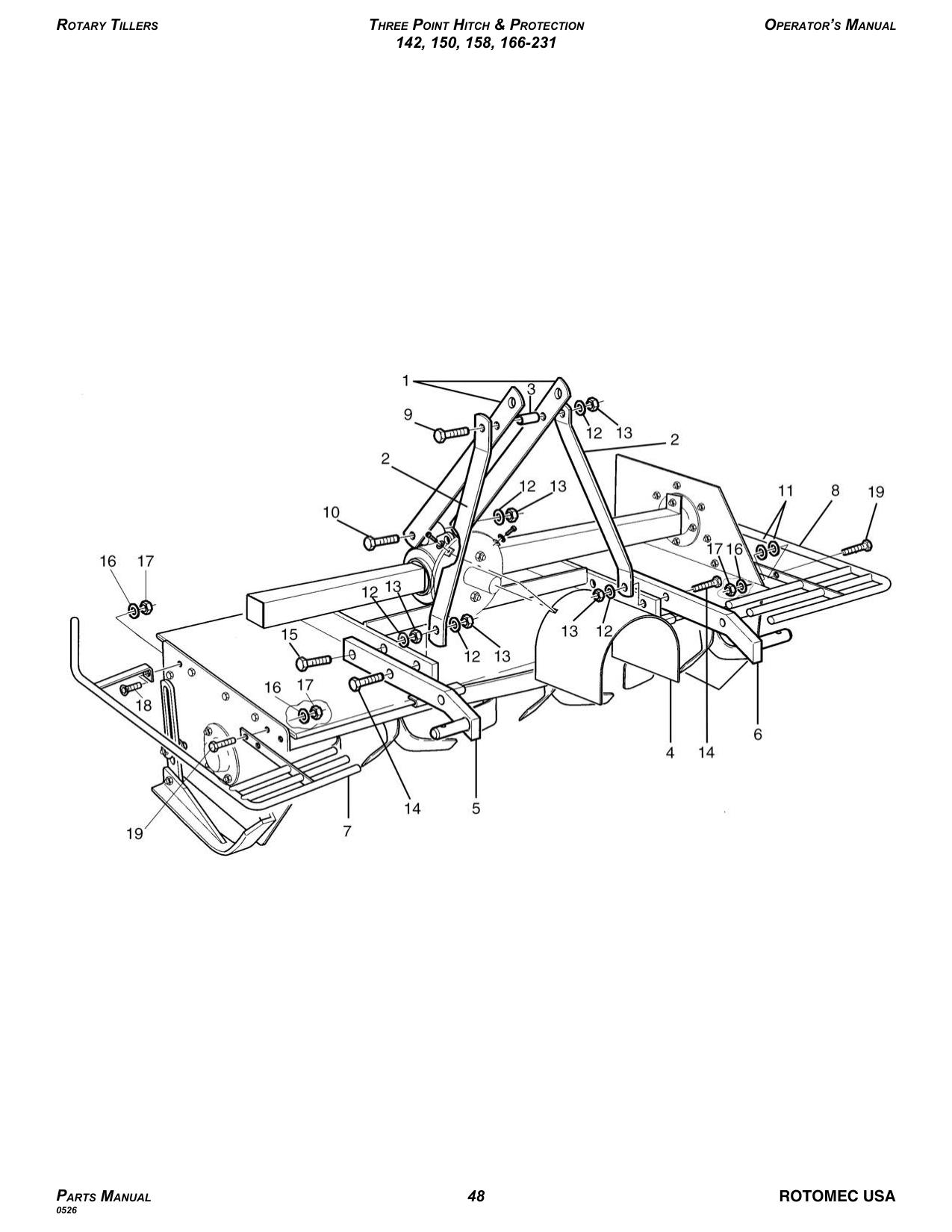

Three Point Hitch & Protection

Three-point hitch assembly + PTO protection cover. Shared across all four models.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty
1	`0034272`	Top hitch arm	142-231 150-231 158-231 166-231	2
2	`0034273`	Top hitch support	142-231 150-231 158-231 166-231	2
3	`0021285`	Spacer	142-231 150-231 158-231 166-231	1
4	`0022269`	PTO shaft protection	142-231 150-231 158-231 166-231	1
5	`0134261`	Hitch plate, lower right	142-231 150-231 158-231 166-231	1
6	`0234261`	Hitch plate, lower left	142-231 150-231 158-231 166-231	1
7	`0122244`	Protection, right	142-231 150-231 158-231 166-231	1
8	`0222244`	Protection, left	142-231 150-231 158-231 166-231	1
9	`0011292`	Bolt HH M12-1.75×110 C8.8 Z P	142-231 150-231 158-231 166-231	1
10	`0015122`	Bolt HH M12-1.75×90 C8.8 Z P	142-231 150-231 158-231 166-231	1
11	`0002034`	Washer, flat Ø10	142-231 150-231 158-231 166-231	2
12	`0001077`	Washer, lock Ø12	142-231 150-231 158-231 166-231	6
13	`0003038`	Nut HH M12-1.75 C6 Z TK	142-231 150-231 158-231 166-231	6
14	`0021257`	Bolt HH M12-1.75×60 C8.8 Z F	142-231 150-231 158-231 166-231	2
15	`0030054`	Bolt HH M12-1.75×50 C8.8 Z F	142-231 150-231 158-231 166-231	2
16	`0001280`	Washer, lock Ø10 Z	142-231 150-231 158-231 166-231	6
17	`0001279`	Nut HH M10-1.50 C6 Z TK	142-231 150-231 158-231 166-231	6
18	`0022250`	Bolt CS M10-1.50×35 C10.9 Z F	142-231 150-231 158-231 166-231	2
19	`0091281`	Bolt HH M10-1.50×35 C8.8 Z F	142-231 150-231 158-231 166-231	4

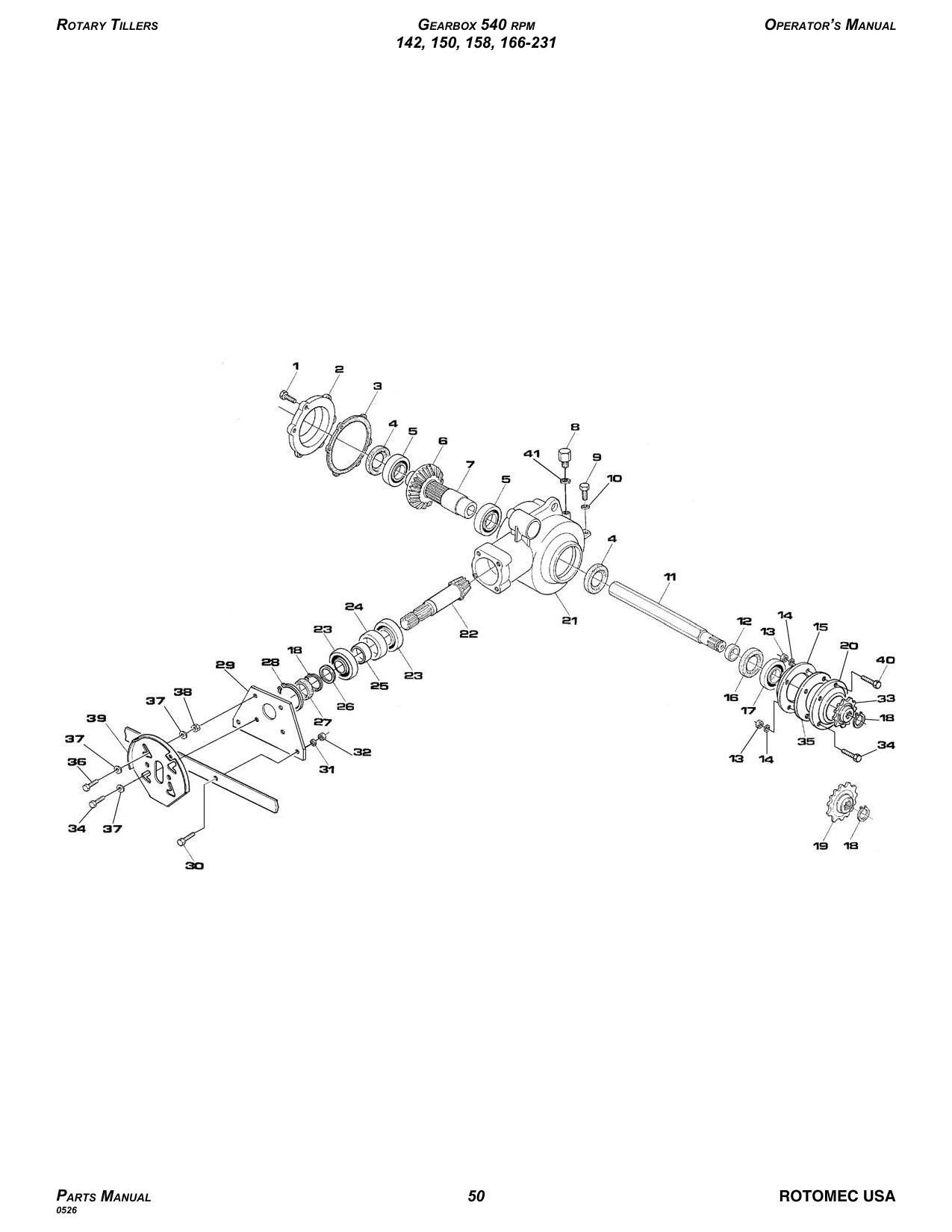

Gearbox 540 RPM

540 rpm gearbox assembly — shared across all four models, with model-specific hexagonal shaft (ref 11) per width.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty
1	`0006349`	Bolt HH M10-1.50×20 C8.8 Z F	142-231 150-231 158-231 166-231	6
2	`0022178`	Gear cover	142-231 150-231 158-231 166-231	1
3	`0022180`	Gasket	142-231 150-231 158-231 166-231	–
4	`0002133`	Oil seal 50.68.10	142-231 150-231 158-231 166-231	2
5	`0034178`	Bearing 6010	142-231 150-231 158-231 166-231	2
6	`0021176`	Ring gear	142-231 150-231 158-231 166-231	1
7	`0034175`	Shaft coupling	142-231 150-231 158-231 166-231	1
8	`0001107A`	Breather cap	142-231 150-231 158-231 166-231	1
9	`0023265`	Bolt HH M12-1.75×40 C8.8 Z F	142-231 150-231 158-231 166-231	1
10	`0002265`	Washer flat Ø12 Z	142-231 150-231 158-231 166-231	1
11	`0234166`	Hexagonal shaft 142-231	142-231	1
11	`0334166`	Hexagonal shaft 150-231	150-231	1
11	`0434166`	Hexagonal shaft 158-231	158-231	1
11	`0534166`	Hexagonal shaft 166-231	166-231	1
12	`0002049`	Spacer	142-231 150-231 158-231 166-231	1
13	`0001279`	Nut HH M10-1.50 C6 Z TK	142-231 150-231 158-231 166-231	4
14	`0001280`	Washer lock Ø10 Z	142-231 150-231 158-231 166-231	4
15	`0030092`	Cover	142-231 150-231 158-231 166-231	1
16	`0034159`	Oil seal 45.60.10	142-231 150-231 158-231 166-231	1
17	`0001061`	Bearing 6307	142-231 150-231 158-231 166-231	1
18	`0042122`	Snap ring, outer Ø35	142-231 150-231 158-231 166-231	3
19	`0034131`	Sprocket Z14 (standard)	142-231 150-231 158-231 166-231	1
19	`0034138`	Sprocket Z15 (option)	142-231 150-231 158-231 166-231	–
19	`0021118`	Sprocket Z16 (option)	142-231 150-231 158-231 166-231	–
20	`0034122`	Left outer cover	142-231 150-231 158-231 166-231	1
21	`0022170`	Gearbox housing	142-231 150-231 158-231 166-231	1
22	`0021177`	Pinion gear	142-231 150-231 158-231 166-231	1
23	`0025332A`	Bearing 6207	142-231 150-231 158-231 166-231	2
24	`0034197`	Outer spacer	142-231 150-231 158-231 166-231	1
25	`0034198`	Inner spacer	142-231 150-231 158-231 166-231	1
26	`0034196`	Spacer washer	142-231 150-231 158-231 166-231	1
27	`0030211`	Oil seal 35.72.10	142-231 150-231 158-231 166-231	1
28	`0025329`	Snap ring, inner Ø72	142-231 150-231 158-231 166-231	1
29	`0030218`	Gearbox front cover	142-231 150-231 158-231 166-231	1
30	`0015255`	Bolt HH M12-1.75×30 C8.8 Z F	142-231 150-231 158-231 166-231	2
31	`0001077`	Washer, lock Ø12 Z	142-231 150-231 158-231 166-231	2
32	`0003038`	Nut HH M12-1.75 C6 Z TK	142-231 150-231 158-231 166-231	2
33	`0034134`	Sprocket Z11 (standard)	142-231 150-231 158-231 166-231	1
33	`0034136`	Sprocket Z10 (option)	142-231 150-231 158-231 166-231	–
33	`0021120`	Sprocket Z9 (option)	142-231 150-231 158-231 166-231	–
34	`0001278`	Bolt HH M10-1.50×30 C8.8 Z F	142-231 150-231 158-231 166-231	5
35	`0034121`	Disk with holes	142-231 150-231 158-231 166-231	1
36	`0091281`	Bolt HH M10-1.50×35 C8.8 Z F	142-231 150-231 158-231 166-231	2
37	`0030157`	Washer flat Ø10	142-231 150-231 158-231 166-231	6
38	`0001106`	Nut HH M12-1.75 C6 Z MD	142-231 150-231 158-231 166-231	2
39	`0022268`	Protection support	142-231 150-231 158-231 166-231	1
40	`0030331`	Bolt HH M10-1.50×50 C8.8 Z F	142-231 150-231 158-231 166-231	1
41	`0006691`	Gasket	142-231 150-231 158-231 166-231	1
GB	`0500606`	Gearbox 540 rpm, complete	142-231 150-231 158-231 166-231	–

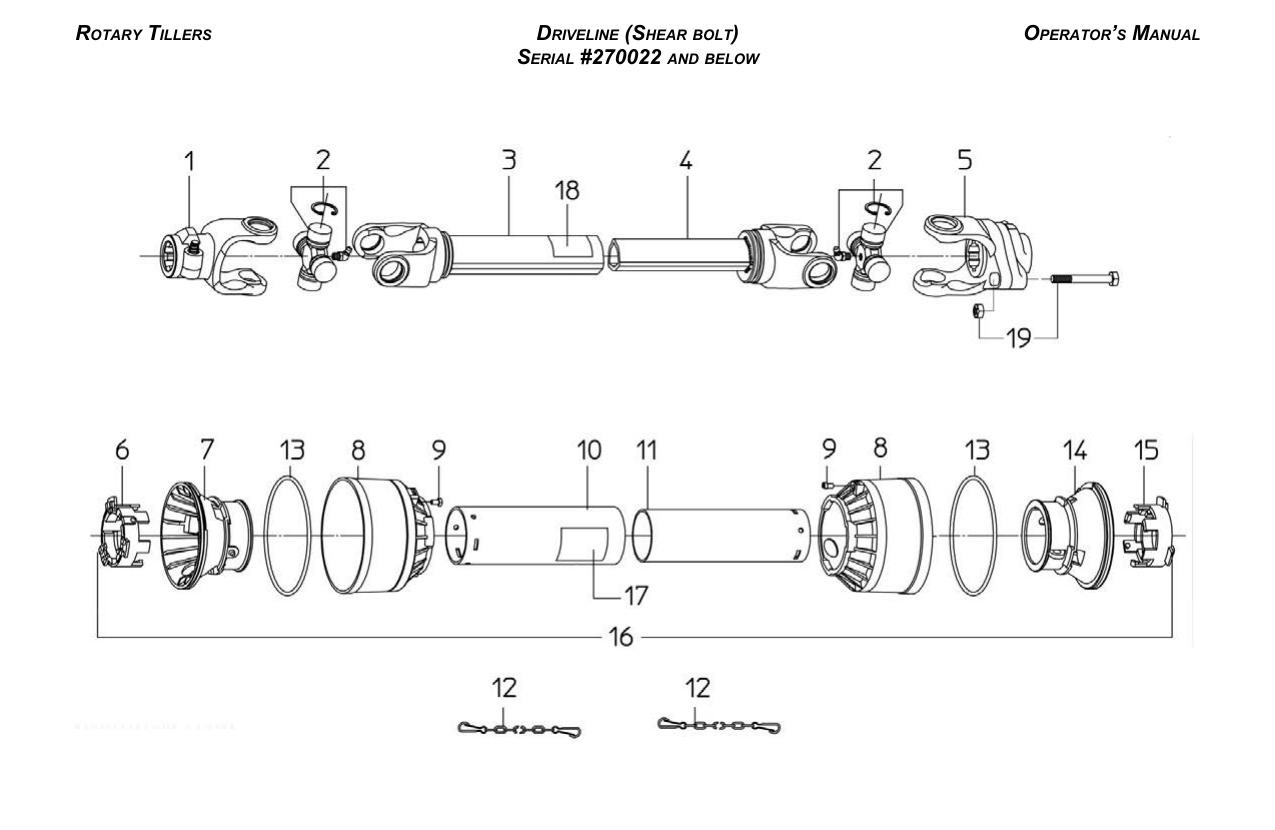

Driveline (Shear Bolt) — #270022 & below

Shear-bolt driveline assembly for tillers with serial #270022 and below. Complete shielding 90SS4043C is no longer available — order 96SS4043C; individual shield components are not interchangeable across the two part numbers.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty	Cart
1	`1023010C`	PTO yoke (tractor end) (no longer available — order 0800303AB)	142-231 150-231 158-231 166-231	1	—
2	`1003020C`	Cross & bearing (no longer available — order 08203B)	142-231 150-231 158-231 166-231	2	—
3	`1943045NC`	Outer tube & yoke	142-231 150-231 158-231 166-231	1
4	`1953047NC`	Inner tube & yoke	142-231 150-231 158-231 166-231	1
5	`1483037C`	Shearpin coupler (implement end)	142-231 150-231 158-231 166-231	1
6	`1784210C`	Locking ring, outer tube; #270022 & below	142-231 150-231 158-231 166-231	1
7	`1784201C`	Rigid cone, outer tube; #270022 & below	142-231 150-231 158-231 166-231	1
8	`1784203C`	Standard cone; #270022 & below	142-231 150-231 158-231 166-231	2
9	`1784212C`	Pin; #270022 & below	142-231 150-231 158-231 166-231	2
10	`1773043C`	Shield, outer tube	142-231 150-231 158-231 166-231	1
11	`1872043C`	Shield, inner tube	142-231 150-231 158-231 166-231	1
12	`1006065C`	Chain, anti-rotation (no longer available — order 52000001B)	142-231 150-231 158-231 166-231	2	—
13	`1213233C`	Stiffening ring; #270022 & below	142-231 150-231 158-231 166-231	2
14	`1784202C`	Rigid cone, inner tube; #270022 & below	142-231 150-231 158-231 166-231	1
15	`1784211C`	Locking ring, inner tube; #270022 & below	142-231 150-231 158-231 166-231	1
16	`90SS4043C`	Shield, complete (no longer available — order 96SS4043C; individual shield components are not interchangeable across the two part numbers)	142-231 150-231 158-231 166-231	1	—
17	`950463B`	Decal "DANGER – Rotating driveline, keep away", outer shield	142-231 150-231 158-231 166-231	1
18	`950464B`	Decal "DANGER – Guard missing, do not operate", outer tube	142-231 150-231 158-231 166-231	1
19	`000508E`	Shear bolt HH M08-1.25×45 C8.8 & nut PT M08-1.25	142-231 150-231 158-231 166-231	1
DL	`0500401`	Driveline w/shear bolt, complete	142-231 150-231 158-231 166-231	–

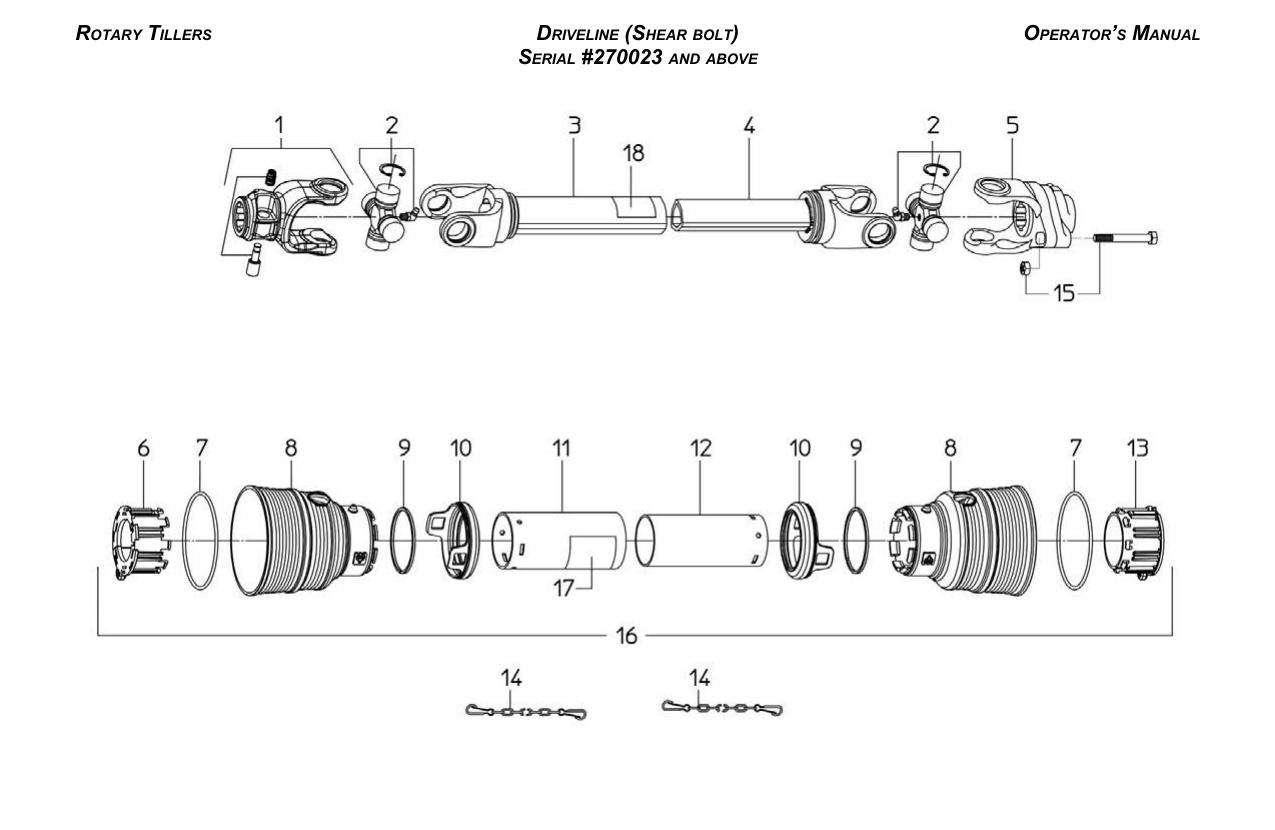

Driveline (Shear Bolt) — #270023 & above

Shear-bolt driveline assembly for tillers with serial #270023 and above. Complete shielding 96SS4043C is the current production part.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty	Cart
1	`1023010C`	PTO yoke (tractor end) (no longer available — order 0800303AB)	142-231 150-231 158-231 166-231	1	—
2	`1003020C`	Cross & bearing (no longer available — order 08203B)	142-231 150-231 158-231 166-231	2	—
3	`1943045NC`	Outer tube & yoke	142-231 150-231 158-231 166-231	1
4	`1953047NC`	Inner tube & yoke	142-231 150-231 158-231 166-231	1
5	`1483037C`	Shearpin coupler (implement end)	142-231 150-231 158-231 166-231	1
6	`1784710C`	Locking ring, outer tube; #270023 & above	142-231 150-231 158-231 166-231	1
7	`1211733C`	Stiffening ring; #270023 & above	142-231 150-231 158-231 166-231	2
8	`1781703C`	Standard cone; #270023 & above	142-231 150-231 158-231 166-231	2
9	`1211735C`	Stop ring; #270023 & above	142-231 150-231 158-231 166-231	2
10	`1881709C`	Safety sleeve; #270023 & above	142-231 150-231 158-231 166-231	2
11	`1773043C`	Shield, outer tube	142-231 150-231 158-231 166-231	1
12	`1872043C`	Shield, inner tube	142-231 150-231 158-231 166-231	1
13	`1784711C`	Locking ring, inner tube; #270023 & above	142-231 150-231 158-231 166-231	1
14	`1006065C`	Chain, anti-rotation (no longer available — order 52000001B)	142-231 150-231 158-231 166-231	2	—
15	`000508E`	Shear bolt HH M08-1.25×45 C8.8 N P & nut PT M08-1.25	142-231 150-231 158-231 166-231	1
16	`96SS4043C`	Shield, complete	142-231 150-231 158-231 166-231	1
17	`950463B`	Decal "DANGER – Rotating driveline, keep away", outer shield	142-231 150-231 158-231 166-231	1
18	`950464B`	Decal "DANGER – Guard missing, do not operate", outer tube	142-231 150-231 158-231 166-231	1
DL	`0500401`	Driveline w/shear bolt, complete	142-231 150-231 158-231 166-231	–

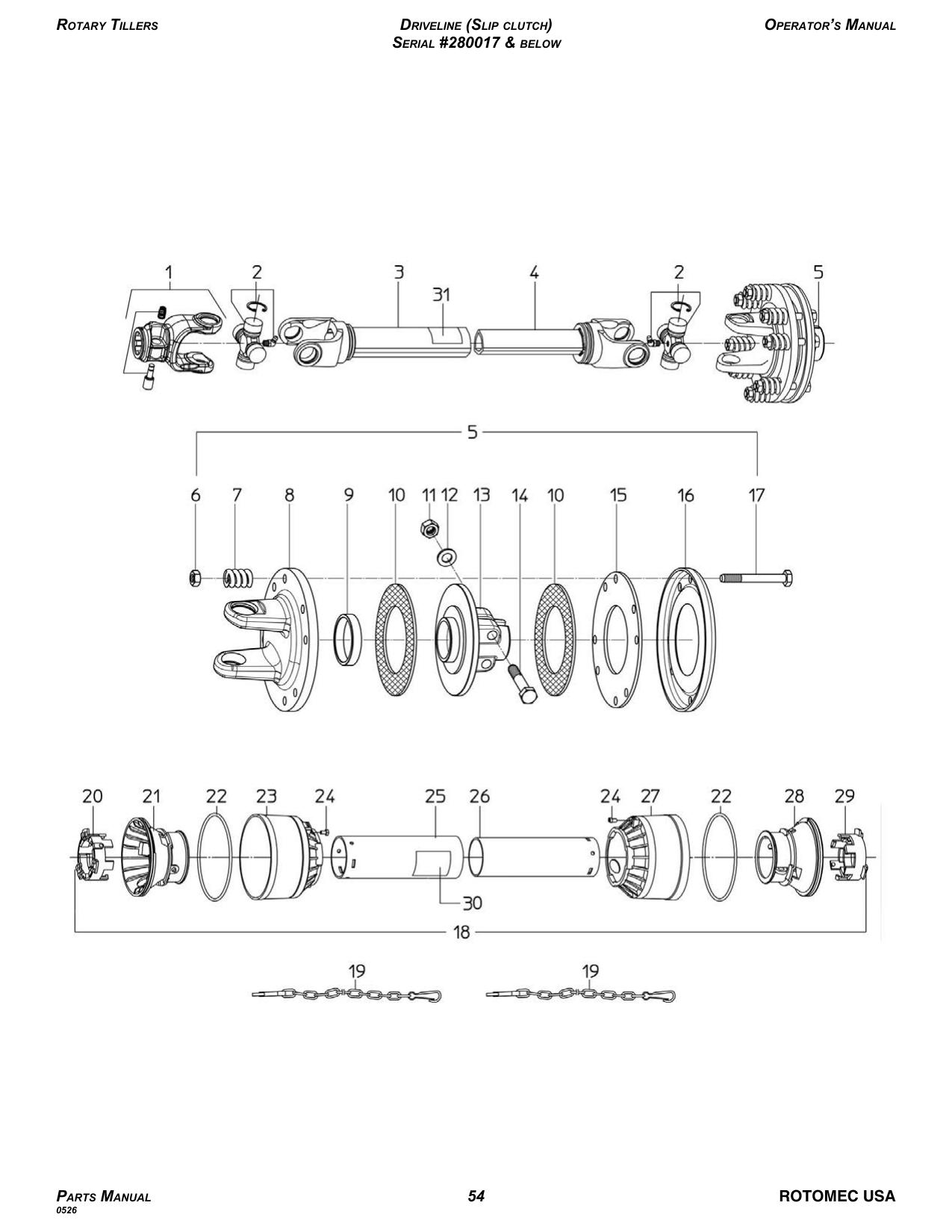

Driveline (Slip Clutch) — #280017 & below

Slip-clutch driveline assembly for tillers with serial #280017 and below. Complete shielding 90SE4041C is no longer available — order 96SE4041C; individual shield components are not interchangeable across the two part numbers.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty	Cart
1	`1023010C`	PTO yoke (tractor end) (no longer available — order 0800303AB)	142-231 150-231 158-231 166-231	1	—
2	`1003020C`	Cross & bearing (no longer available — order 08203B)	142-231 150-231 158-231 166-231	2	—
3	`1943043NC`	Outer tube & yoke	142-231 150-231 158-231 166-231	1
4	`1953045NC`	Inner tube & yoke	142-231 150-231 158-231 166-231	1
5	`1333030C`	Slip clutch, complete (implement end)	142-231 150-231 158-231 166-231	1
6	`0030156`	Nut PT M10-1.50 C6 Z TK	142-231 150-231 158-231 166-231	8
7	`1215012C`	Spring, slip clutch	142-231 150-231 158-231 166-231	8
8	`1703130C`	Yoke, slip clutch	142-231 150-231 158-231 166-231	1
9	`1704017C`	Bushing, slip clutch	142-231 150-231 158-231 166-231	1
10	`1804000C`	Friction disc	142-231 150-231 158-231 166-231	2
11	`0001075`	Nut HH M12-1.25 C6 Z TK	142-231 150-231 158-231 166-231	2
12	`0001077`	Washer, lock Ø12 Z	142-231 150-231 158-231 166-231	2
13	`1704016C`	Hub with flange, slip clutch	142-231 150-231 158-231 166-231	1
14	`0034270`	Bolt HH M12-1.25×65 C8.8 Z P	142-231 150-231 158-231 166-231	2
15	`1134008C`	Inner disc	142-231 150-231 158-231 166-231	1
16	`1134007C`	Outer flange	142-231 150-231 158-231 166-231	1
17	`0015232`	Bolt HH M10-1.50×75 C8.8 Z P	142-231 150-231 158-231 166-231	8
18	`90SE4041C`	Shield, complete (no longer available — order 96SE4041C; individual shield components are not interchangeable across the two part numbers)	142-231 150-231 158-231 166-231	1	—
19	`1006065C`	Chain, anti-rotation (no longer available — order 52000001B)	142-231 150-231 158-231 166-231	2	—
20	`1784210C`	Locking ring, outer tube; #280017 & below	142-231 150-231 158-231 166-231	1
21	`1784201C`	Rigid cone, outer tube; #280017 & below	142-231 150-231 158-231 166-231	1
22	`1213233C`	Stiffening ring; #280017 & below	142-231 150-231 158-231 166-231	2
23	`1784203C`	Standard cone; #280017 & below	142-231 150-231 158-231 166-231	1
24	`1784212C`	Pin; #280017 & below	142-231 150-231 158-231 166-231	2
25	`1773041C`	Shield, outer tube	142-231 150-231 158-231 166-231	1
26	`1872041C`	Shield, inner tube	142-231 150-231 158-231 166-231	1
27	`1784207C`	Extra short cone; #280017 & below	142-231 150-231 158-231 166-231	1
28	`1784202C`	Rigid cone, inner tube; #280017 & below	142-231 150-231 158-231 166-231	1
29	`1784211C`	Locking ring, inner tube; #280017 & below	142-231 150-231 158-231 166-231	1
30	`950463B`	Decal "DANGER – Rotating driveline, keep away", outer shield	142-231 150-231 158-231 166-231	1
31	`950464B`	Decal "DANGER – Guard missing, do not operate", outer tube	142-231 150-231 158-231 166-231	1
DL	`0500408`	Driveline w/slip clutch, complete	142-231 150-231 158-231 166-231	–

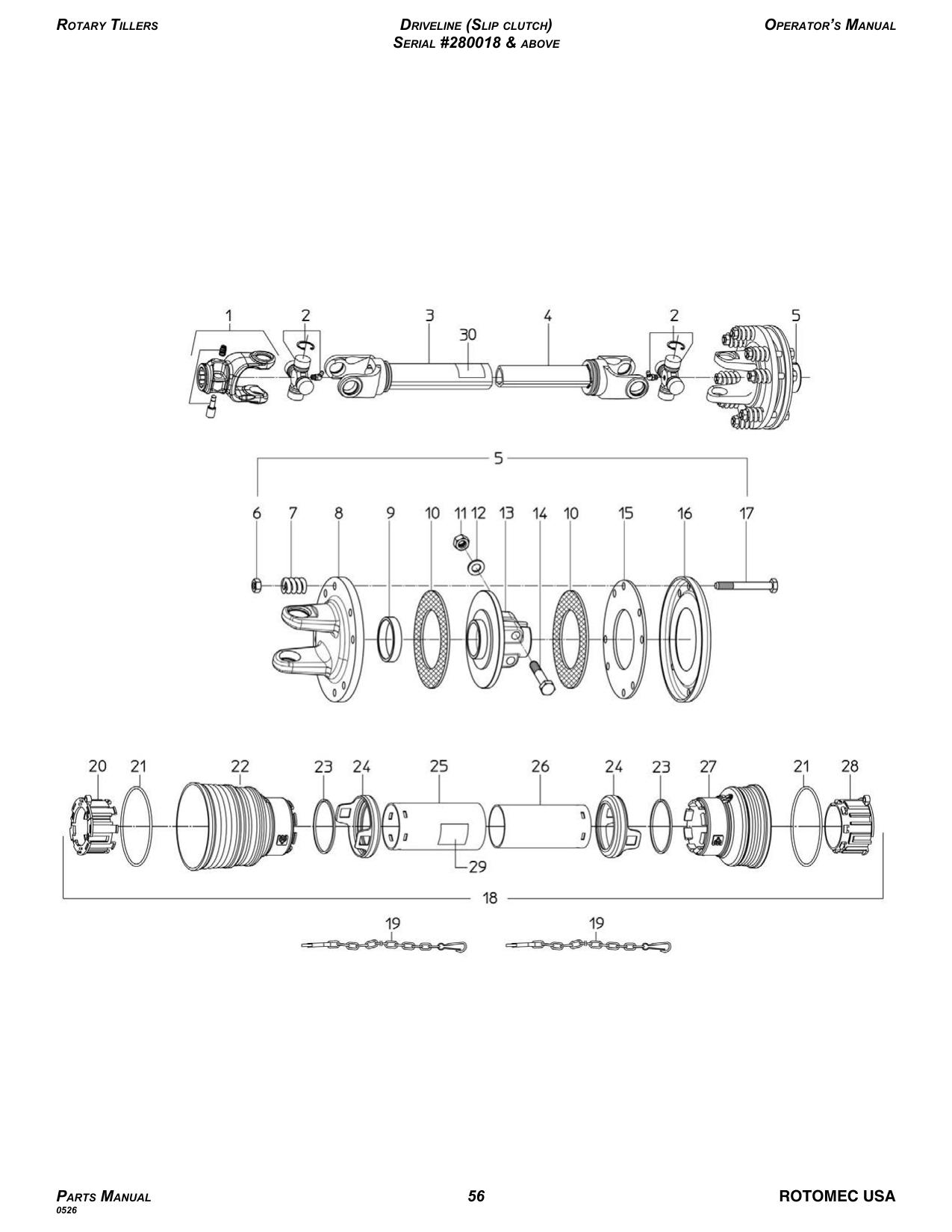

Driveline (Slip Clutch) — #280018 & above

Slip-clutch driveline assembly for tillers with serial #280018 and above. Complete shielding 96SE4041C is the current production part.

Click a number on the diagram to highlight the part →

Ref	Part Number	Description	Models	Qty	Cart
1	`1023010C`	PTO yoke (tractor end) (no longer available — order 0800303AB)	142-231 150-231 158-231 166-231	1	—
2	`1003020C`	Cross & bearing (no longer available — order 08203B)	142-231 150-231 158-231 166-231	2	—
3	`1943043NC`	Outer tube & yoke	142-231 150-231 158-231 166-231	1
4	`1953045NC`	Inner tube & yoke	142-231 150-231 158-231 166-231	1
5	`1333030C`	Slip clutch, complete (implement end)	142-231 150-231 158-231 166-231	1
6	`0030156`	Nut PT M10-1.50 C6 Z TK	142-231 150-231 158-231 166-231	8
7	`1215012C`	Spring, slip clutch	142-231 150-231 158-231 166-231	8
8	`1703130C`	Yoke, slip clutch	142-231 150-231 158-231 166-231	1
9	`1704017C`	Bushing, slip clutch	142-231 150-231 158-231 166-231	1
10	`1804000C`	Friction disc	142-231 150-231 158-231 166-231	2
11	`0001075`	Nut HH M12-1.25 C6 Z TK	142-231 150-231 158-231 166-231	2
12	`0001077`	Washer, lock Ø12 Z	142-231 150-231 158-231 166-231	2
13	`1704016C`	Hub with flange, slip clutch	142-231 150-231 158-231 166-231	1
14	`0034270`	Bolt HH M12-1.25×65 C8.8 Z P	142-231 150-231 158-231 166-231	2
15	`1134008C`	Inner disc	142-231 150-231 158-231 166-231	1
16	`1134007C`	Outer flange	142-231 150-231 158-231 166-231	1
17	`0015232`	Bolt HH M10-1.50×75 C8.8 Z P	142-231 150-231 158-231 166-231	8
18	`96SE4041C`	Shield, complete	142-231 150-231 158-231 166-231	1
19	`1006065C`	Chain, anti-rotation (no longer available — order 52000001B)	142-231 150-231 158-231 166-231	2	—
20	`1784710C`	Locking ring, outer tube; #280018 & above	142-231 150-231 158-231 166-231	1
21	`1211733C`	Stiffening ring; #280018 & above	142-231 150-231 158-231 166-231	2
22	`1781703C`	Standard cone; #280018 & above	142-231 150-231 158-231 166-231	1
23	`1211735C`	Stop ring; #280018 & above	142-231 150-231 158-231 166-231	2
24	`1881709C`	Safety sleeve; #280018 & above	142-231 150-231 158-231 166-231	2
25	`1773041C`	Shield, outer tube	142-231 150-231 158-231 166-231	1
26	`1872041C`	Shield, inner tube	142-231 150-231 158-231 166-231	1
27	`1781701C`	Extra short cone; #280018 & above	142-231 150-231 158-231 166-231	1
28	`1784711C`	Locking ring, inner tube; #280018 & above	142-231 150-231 158-231 166-231	1
29	`950463B`	Decal "DANGER – Rotating driveline, keep away", outer shield	142-231 150-231 158-231 166-231	1
30	`950464B`	Decal "DANGER – Guard missing, do not operate", outer tube	142-231 150-231 158-231 166-231	1
DL	`0500408`	Driveline w/slip clutch, complete	142-231 150-231 158-231 166-231	–

Service / Replacement Parts

Active replacement parts referenced in the manual descriptions. These supersede discontinued items called out elsewhere — not part of the original PDF parts list.

Ref	Part Number	Description	Models	Qty
S1	`0800303AB`	PTO yoke, tractor end (replaces 1023010C)	142-231 150-231 158-231 166-231	1
S2	`08203B`	Cross & bearing (replaces 1003020C)	142-231 150-231 158-231 166-231	2
S3	`52000001B`	Chain, anti-rotation (replaces 1006065C)	142-231 150-231 158-231 166-231	2

Decals

Safety, identification, and operator-manual decals. Shared across all four models.

Ref	Part Number	Description	Models	Qty	Cart
1	`950109B`	Decal "DANGER – Avoid injury from PTO"	142-231 150-231 158-231 166-231	1
2	`950209B`	Decal "DANGER – Rotating blades hazard"	142-231 150-231 158-231 166-231	1
3	`950486B`	Decal "DANGER – Moving parts hazard"	142-231 150-231 158-231 166-231	1
4	`950417B`	Decal "CAUTION – Read operator's manual"	142-231 150-231 158-231 166-231	1
5	`9370160`	Decal "Manual side-shift"	142-231 150-231 158-231 166-231	1
6	`9370139`	Decal "ROTOMEC" XL	142-231 150-231 158-231 166-231	1
7	`950359B`	Decal "ROTOMEC USA" address (no longer available)	142-231 150-231 158-231 166-231	1	—
M	`971214B`	Operator's & Parts Manual "142, 150, 158, 166-231"	142-231 150-231 158-231 166-231	1
