POST HOLE DIGGERS
540 rpm - Cat. 1 & 2
ROTOMEC offers a complete line three point mounted suitable for tractors ranging from 15 to 90 Hp.
ROTOMEC post hole diggers are constructed with heavy walled piping and sturdy gearboxes to ensure reliability whether they are being used for landscaping, farming or industrial purposes.
Auger sizes range from 6” for small post holes, all the way up to 30” holes for tree root balls. All augers feature a fully welded flighting and are assembled standard with fish-tail points.
Model PHD100 was specifically designed for sub-compact tractors with cat.1 or Limited cat. 1 hitches.
POST HOLE DIGGERS
| Model | HP | Hitch | Boom OD | Yoke OD | Auger rpm | Gear ratio | Weight lbs | Ship lbs | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|
PHD100 | 15-25 | Limited Cat. 1 | 2 7/8" | 2 3/8" | 180 | 3:01 | 112 | 165 | ASAE cat. 2 shear bolt |
PHD200 | 18-40 | Cat. 1 | 3 1/2" | 2 7/8" | 180 | 3:01 | 200 | 235 | ASAE cat. 3 shear bolt |
PHD300 | 18-50 | Cat. 1 & 2 | 3 1/2" reinforced | 2 7/8" reinforced | 154 | 3.5:1 | 230 | 275 | ASAE cat. 3 shear bolt |
PHD400 | 18-90 | Cat. 1 & 2 | 3 1/2" reinforced | 2 7/8" reinforced | 135 | 4:01 | 256 | 305 | ASAE cat. 3 shear bolt |
AUGERS
| Model | Fits models | Size | Length | Weight lbs | Flighting type | Flighting thickness |
|---|---|---|---|---|---|---|
5BP48106531 | 100, 200, 300, 400 | 6" | 36" | 23 | Single | 3/16" |
5BP48109531 | 100, 200, 300, 400 | 9" | 36" | 40 | Double | 3/16" |
5BP48112531 | 100, 200, 300, 400 | 12" | 36" | 44 | Double | 3/16" |
5BP48206531 | 200, 300, 400 | 6" | 48" | 30 | Single | 3/16" |
5BP48209531 | 200, 300, 400 | 9" | 48" | 52 | Double | 3/16" |
5BP48212531 | 200, 300, 400 | 12" | 48" | 58 | Double | 3/16" |
5BP48218531 | 300, 400 | 18" | 48" | 67 | Double | 1/4" |
5BP48224531 | 300, 400 | 24" | 48" | 100 | Double | 1/4" |
5BP48230531 | 300, 400 | 30" | 44" | 214 | Double 15" & 30" | 5/16" |

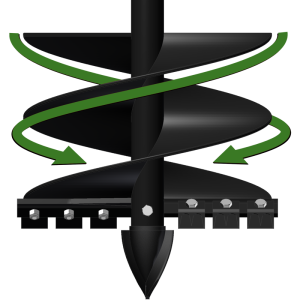

Double flighting
Heavy duty fully welded double flighting on all 9, 12, 18, 24 and 30″ augers.

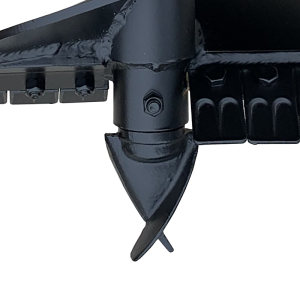

Fish tail auger point
Fish tail auger point is standard on every auger size

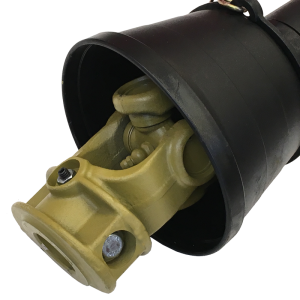

Fully enclosed shear pin safety
Our driveline yokes have the industries first fully enclosed shear pin safety.

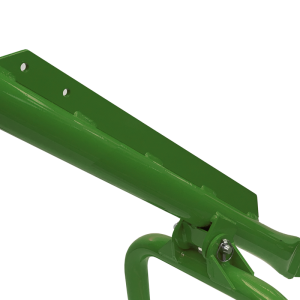

Reinforced boom
Models PHD300 and PHD400 have a reinforced boom and three point hitch.
A complete line of augers
Choice of 6, 9, 12, 18, 24 & 30″ augers and 36″ or 48″ auger lengths
Hydraulic downforce kit
5BP480099154 Hydraulic downforce kit for model PHD200
Hydraulic downforce kit
5BP480099155 Hydraulic downforce kit for model PHD300 & PHD400
Hook-up stand
5BP480099851 Hook-up stand fits all models of ROTOMEC post hole diggers
Auger positioning handle
5BP48PHD003 Auger positioning handle fits all models of ROTOMEC post hole diggers
Operator’s manual (English)
Parts manual (English)
Operator’s manual (French)
Parts manual (French)
Operator’s manual (Spanish)
Parts manual (Spanish)
