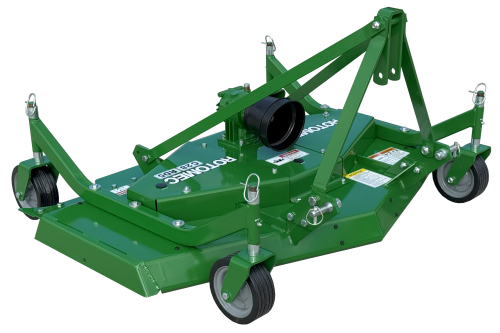

Finishing mowers
540 rpm - Cat. 1

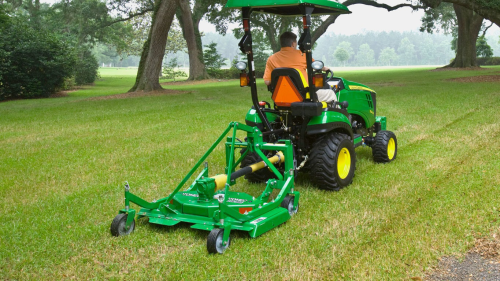

Rotomec finishing mowers are expertly crafted for homeowners using tractors with horsepower ranging from 16 to 30 HP. These mowers serve as the perfect alternative to challenging belly-mounted mowers, especially for compact and sub-compact tractors. Featuring three fixed blades and a Category 1 three-point hitch, Rotomec mowers ensure a precise and clean cut across all types of grasses, making lawn maintenance effortless.
Available in three versatile mowing widths 48″, 60″, and 72″ these finishing mowers cater to various landscaping needs, whether you’re tending to a small yard or a larger property. Choose Rotomec for reliable, high-quality mowing solutions that enhance your outdoor space.
Main Features
- Highly engineered & rugged gearbox
- Front & rear tractor mounting
- 4 rubber swivel tires to guarantee a perfectly level cut
- Floating three point linkage, cat. 1
- 10 gauge reinforced mower deck
- Stamped steel wheel yokes
- Cutting heights: from 1″ to 4″
- Spindle shafts greased from the top for easy service
- Heavy duty reinforced belt (BX)
- Heavy duty, one piece, balanced steel pulleys
- Heavy duty shielded PTO shaft (1 3/8″ ASAE cat. 2)
MODELS WITH SOLID TIRES (SIZE 8.4"x3.2")
Model | HP | Working width | Overall width | Weight lbs | Ship lbs | Rotor rpm | Blade tip speed (ft/min) | # of blades | Cutting height | # Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
C28-RD4H | 16-30 | 48" | 51" | 340 | 440 | 3,037 | 13,188 | 3 | 1"-4" | 1 BX | ASAE cat.2 |
C28-RD5H | 20-30 | 60" | 62" | 375 | 490 | 2,803 | 14,763 | 3 | 1"-4" | 1BX | ASAE cat.2 |
C28-RD6H | 25-30 | 72" | 74" | 440 | 570 | 2,728 | 14,566 | 3 | 1"-4" | 1 BX | ASAE cat. 2 |

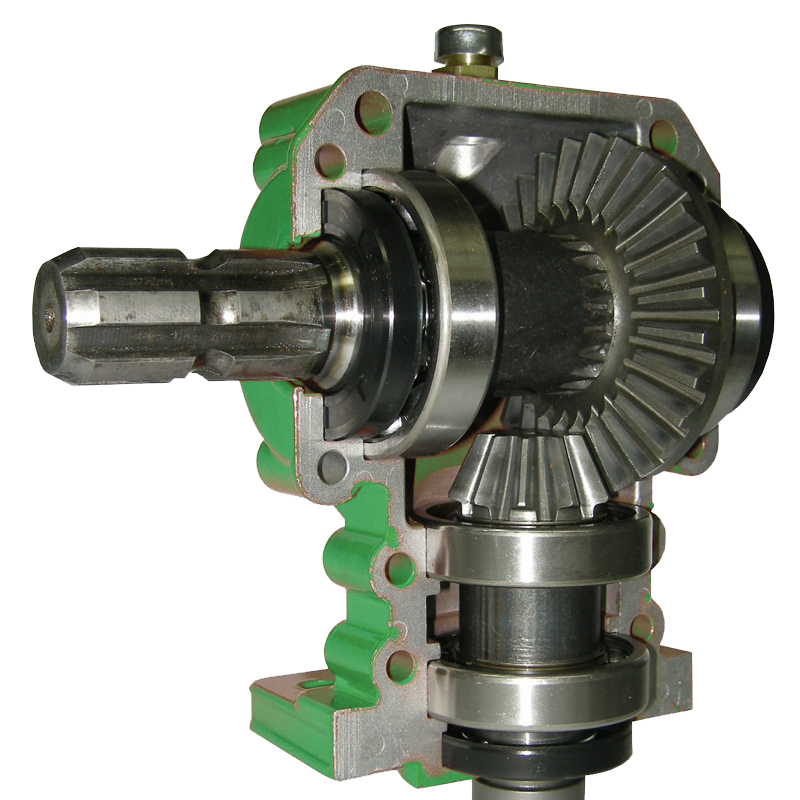

Gearbox by Rotomec
Gearboxes are manufactured by Rotomec and feature a fully enclosed seal housing to protect seals from foreign objects.

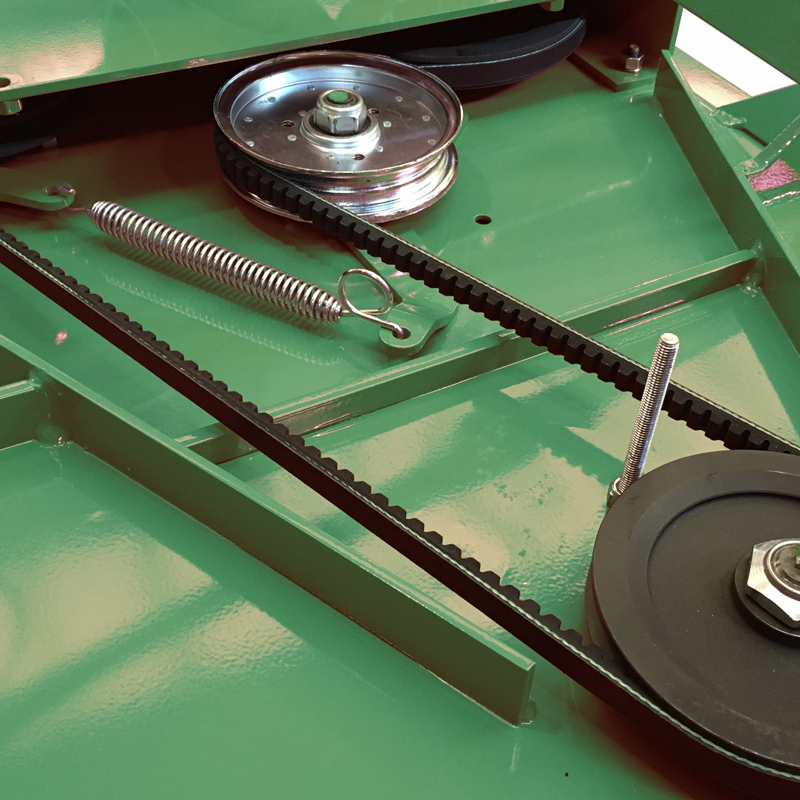

Single belt transmission
Heavy duty reinforced belt (BX) with spring loaded tensioner provide over 180° coverage of all pulleys.

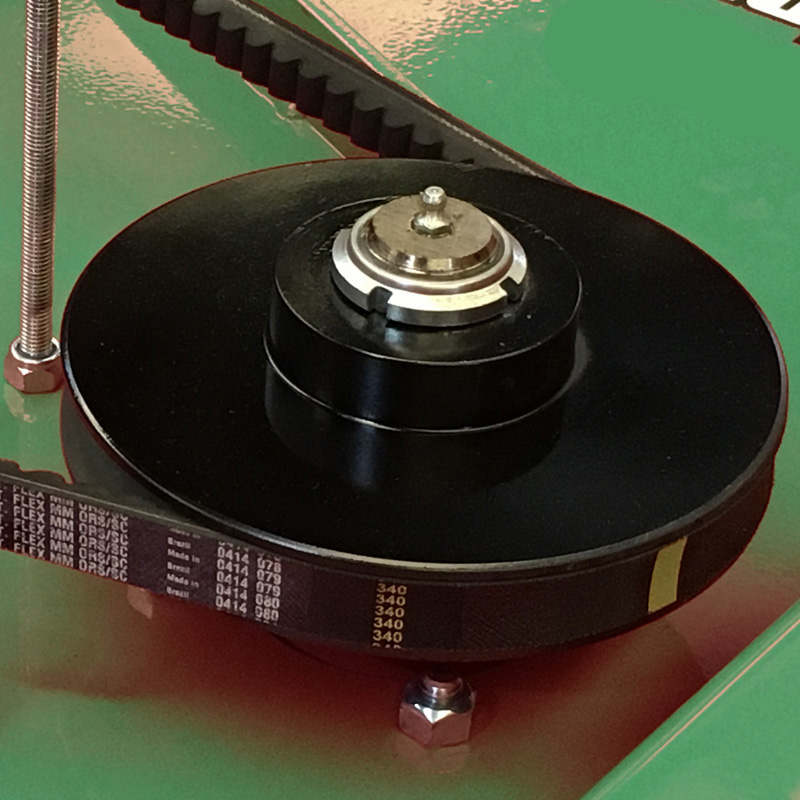

Cast iron pulleys
Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.

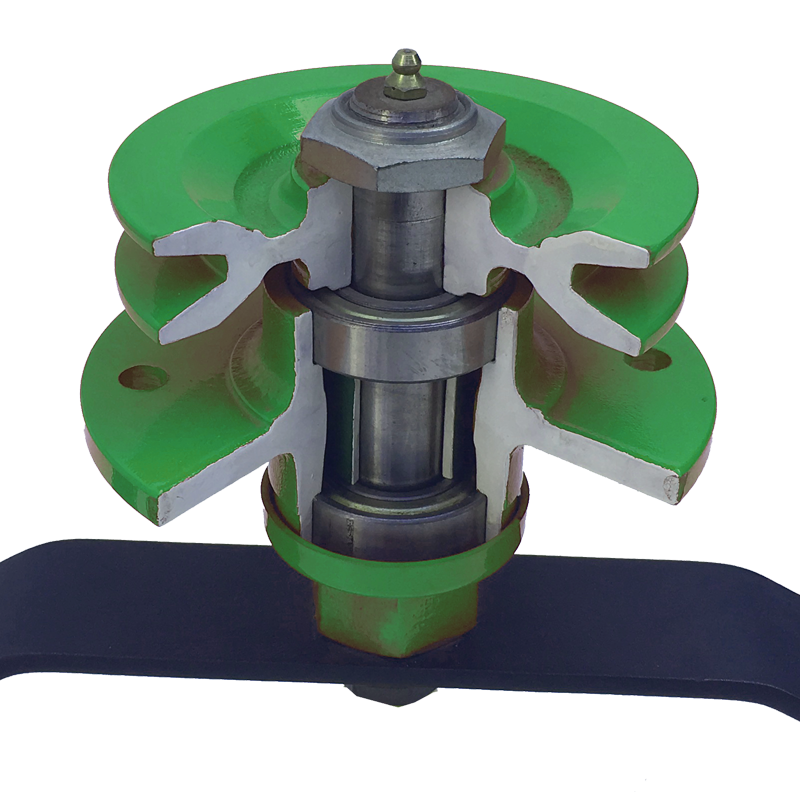

Axial grease fittings
Spindles are equipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.
Choice of solid or pneumatic tires
Customers can choose between solid (8.4″x3.2″) or pneumatic tires (9″x3.5″).

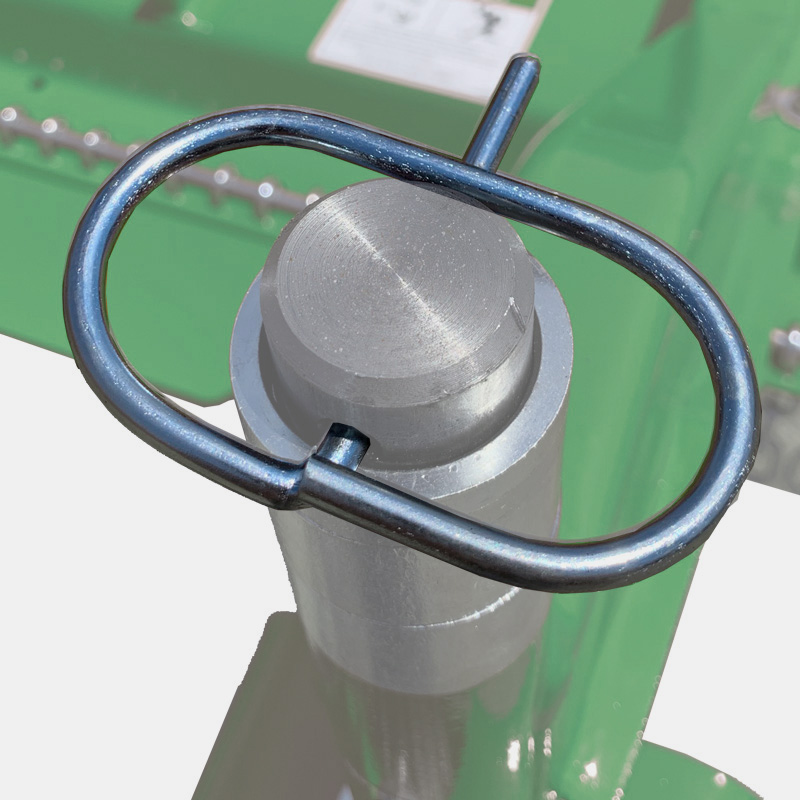

Pins that stay in place
Mowers that use traditional cotter pins often lose them when the mower gets too close to a bush. This not only causes the loss of the pin but may also cause the loss of the height adjustment spacers and in some cases even the wheel yokes.
For this reason, BEFCO designed and manufactured a pin that will stay securely fastened under almost any circumstances.

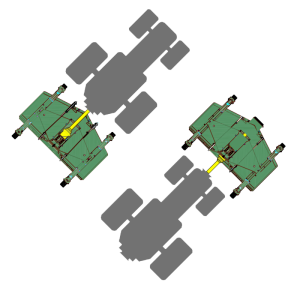

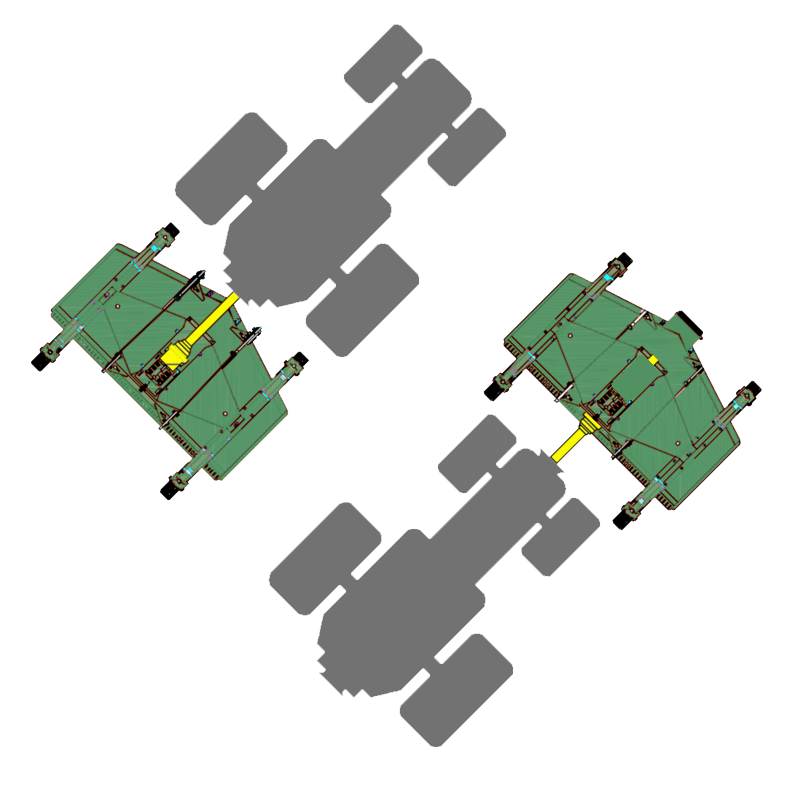

Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

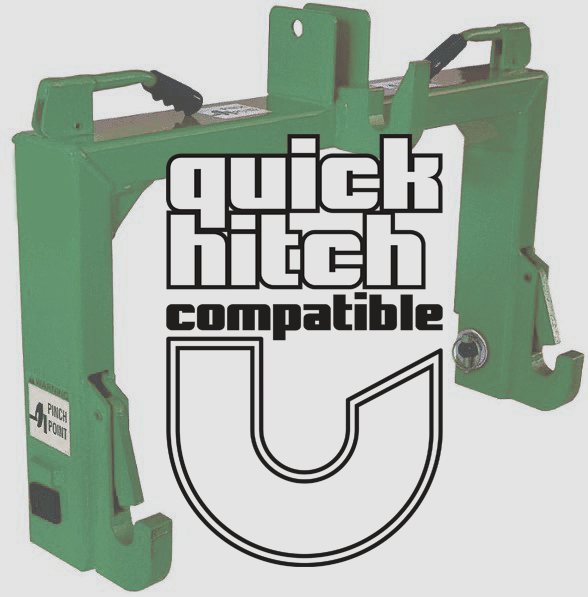

ASAE Cat. 1 quick hitch compatible
Compatible with ASAE Cat. 1 quick hitches when equipped with optional quick hitch adapter.
Mulching blades
006900 Quick hitch adapter for model C28-RD4
006800 Quick hitch adapter for model C28-RD5
006700 Quick hitch adapter for model C28-RD6
Mulching kit
004600 Mulching kit for model C28-RD4
005600 Mulching kit for model C28-RD5
006600 Mulching kit for model C28-RD6
Note: Mulching blades are also included in Mulching kits
Front antiscalp roller
001600 Front antiscalping roller

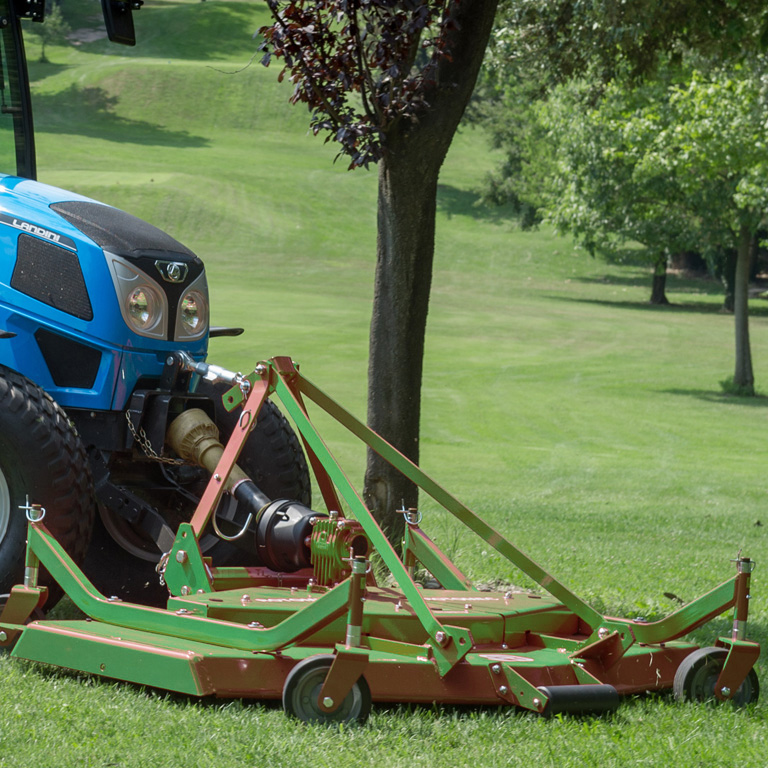

Front mount (factory installed)
FRTXXC30 Front mount

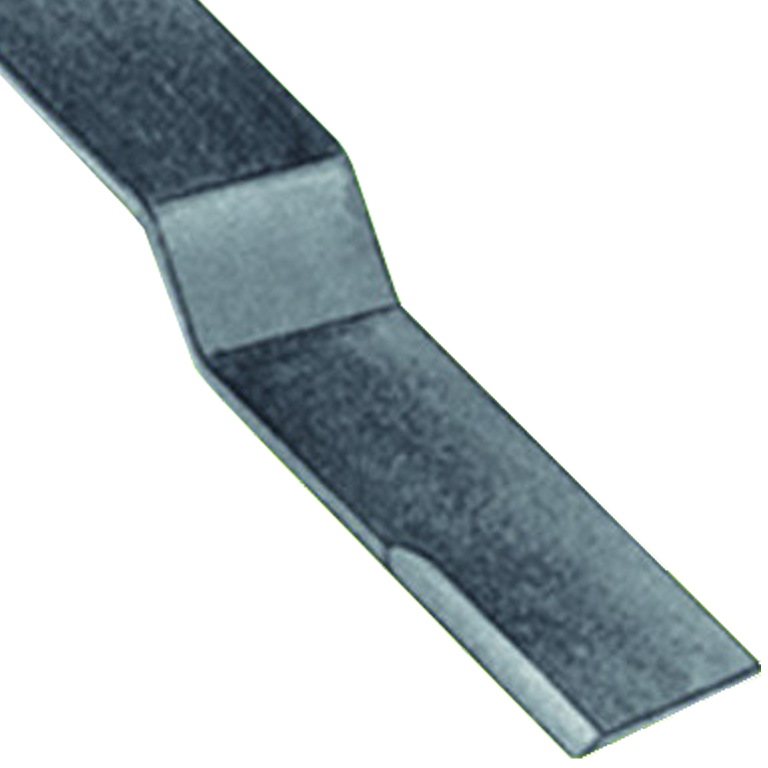

Low lift blades
0006640F Low lift blade for model C28-RD4
0006641F Low lift blade for model C28-RD5
0006845F Low lift blade for model C28-RD6

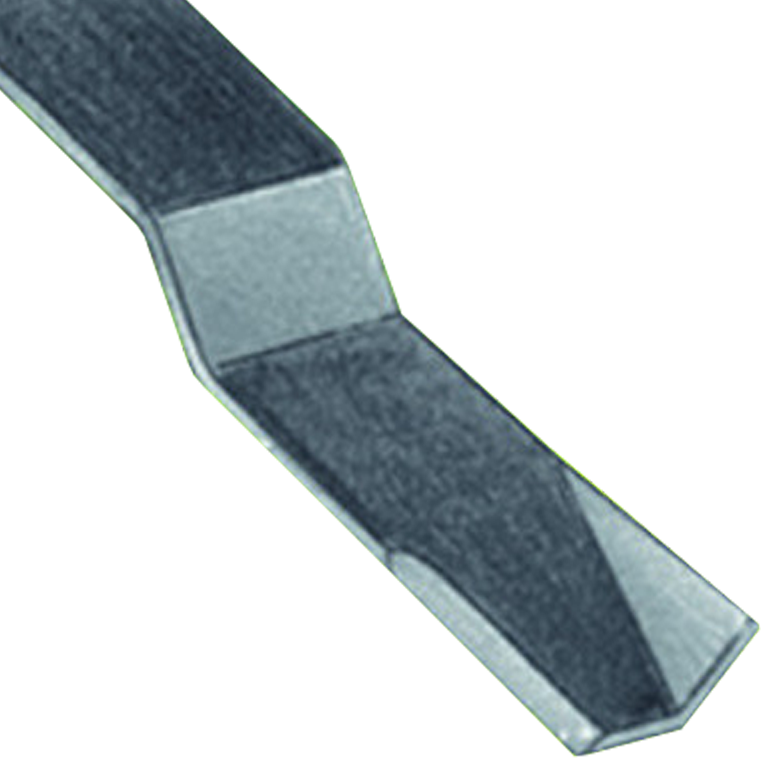

Standard blades
0006640 Standard blade for model C28-RD4
0006641 Standard blade for model C28-RD5
0006845 Standard blade for model C28-RD6

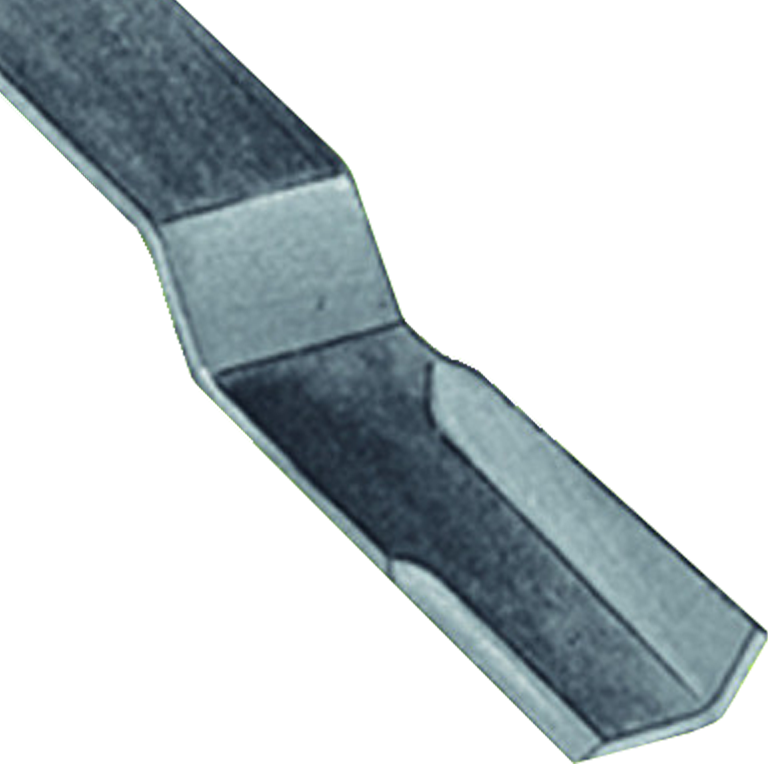

High lift blades
0006640B High lift blade for model C28-RD4
0006641B High lift blade for model C28-RD5
0006845B High lift blade for model C28-RD6

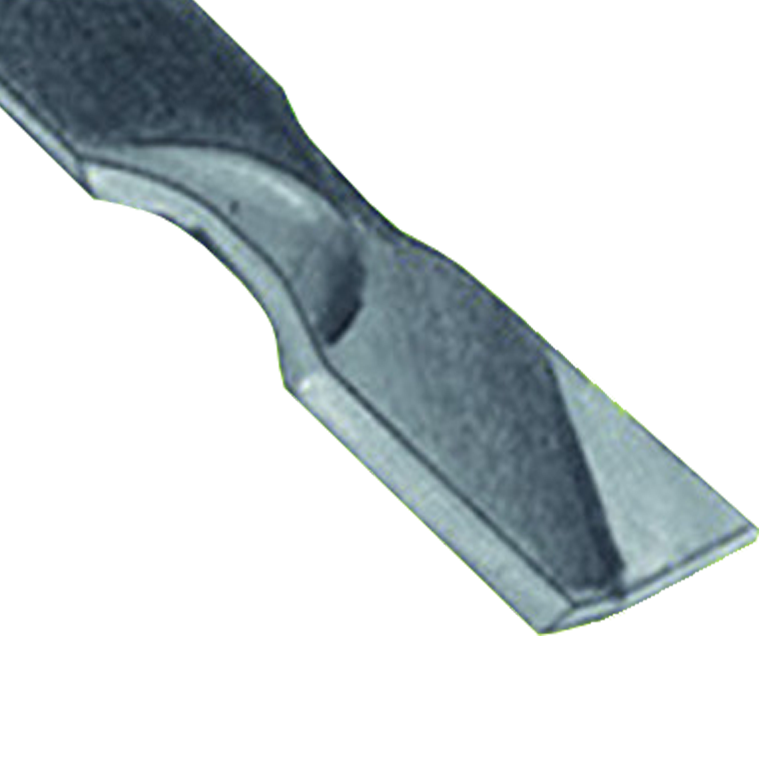

Mulching blades
0006640M Mulching blade for model C28-RD4
0006641M Mulching blade for model C28-RD5
0006845M Mulching blade for model C28-RD6
Note: Mulching blades are also included in Mulching kits
